BLDatasheet (PDF)

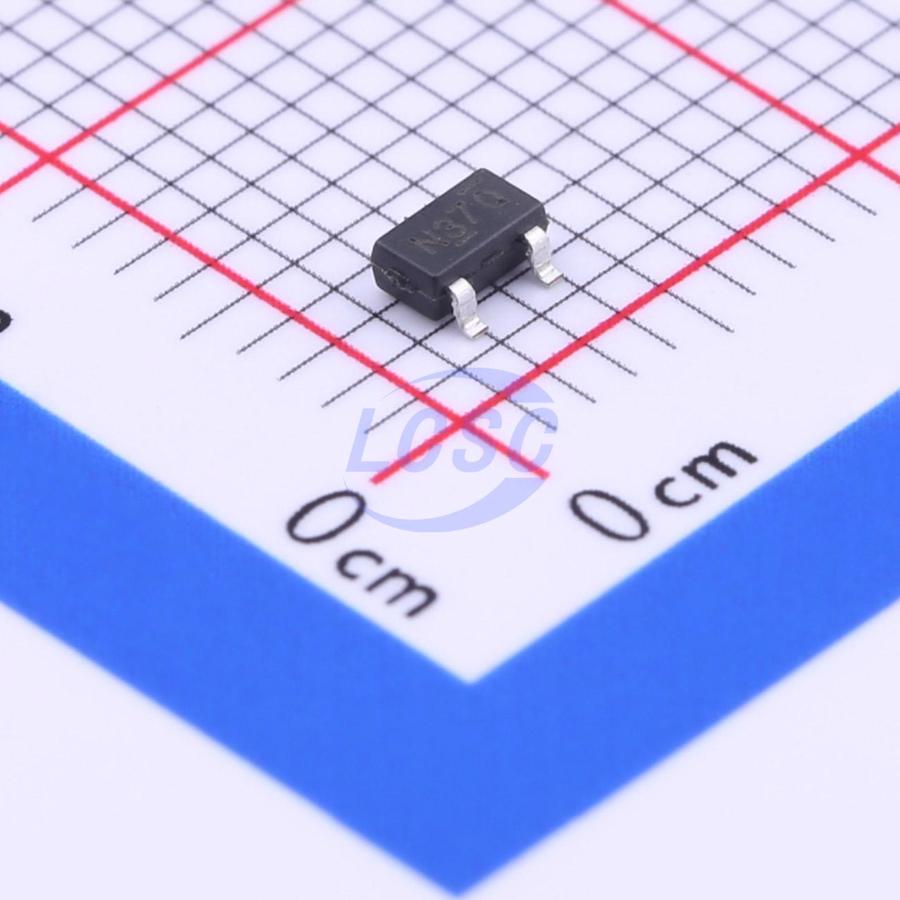

BL8064CB3TR33
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
200mA Low Consumption Linear Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8064CB3TR33
- Store part #
- C94700
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53,095 in stock
#C94700
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.79 | ₹48.95 |
| 50+ | ₹7.92 | ₹396.00 |
| 150+ | ₹6.99 | ₹1,048.50 |
| 500+ | ₹6.29 | ₹3,145.00 |
| 3,000+ | ₹5.53 | ₹16,590.00 |
| 6,000+ | ₹5.26 | ₹31,560.00 |
5 × ₹9.79
₹48.95
excl. GST
₹57.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8064CB3TR33
₹48.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 200mA
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
BL8064 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator. It can provide 200mA output current when input / output voltage differential drops to 430mV （Vout = 2.8V）. The very low power consumption of BL8064 can greatly improve natural life of batteries. BL8064 can provide output value in the range of 1.1V~5.5V in 0.1V steps. It also can be customized on command. BL8064 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8064 has well load transient response and good temperature characteristic, And it uses trimming technique to guarantee output voltage accuracy within ±2%.
Applications
- Battery Powered equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Reference Voltage Source Regulation after Switching Power
Key features
- Low Power Consumption: 1.0uA（Typ.）
- Maximum Output Current: 200mA
- Small Dropout Voltage
- 210mV@100mA (Vout = 2.8V)
- 430mV@200mA (Vout = 2.8V)
- Input Voltage Range: 1.5V~6V
- Output Voltage Range: 1.1V~5.5V (customized on command in 0.1V steps)
- Highly Accurate: ±2% (±1% customized）
- Output Current Limit
