BLDatasheet (PDF)

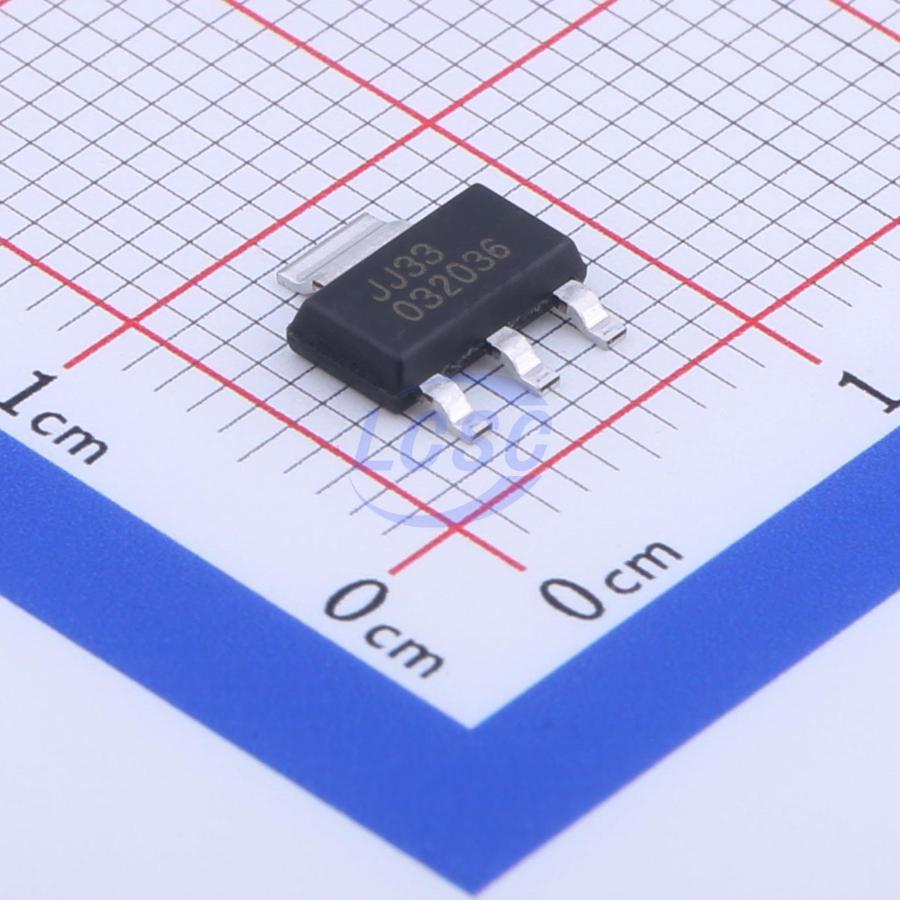

BL8072CLTR33
3.3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223-3RoHSActive
2A low-power linear voltage regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8072CLTR33
- Store part #
- C843780
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,410 in stock
#C843780
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.98 | ₹124.90 |
| 50+ | ₹19.58 | ₹979.00 |
| 150+ | ₹17.27 | ₹2,590.50 |
| 500+ | ₹14.38 | ₹7,190.00 |
| 2,500+ | ₹13.09 | ₹32,725.00 |
| 5,000+ | ₹12.32 | ₹61,600.00 |
5 × ₹24.98
₹124.90
excl. GST
₹147.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL8072CLTR33
₹124.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 2A
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.268 g
Overview
BL8072 is a series of low power consumption, low dropout voltage regulator with a typical dropout voltage of 1.0V at 2A load current. BL8072 can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customized on command. Other than every voltage version can be used as an adjustable voltage version, with which desired voltage can be achieved by setting the values of two external resistors of the application circuitry. BL8072 has well load transient response and good temperature characteristic, And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8072 series is available in standard packages of SOT-223 and TO-252.
Applications
- Battery Charger
- Battery Powered equipment
- Post Regulators for Switching Supplies
- Reference Voltage Source
- Regulation after Switching Power
Key features
- Low Power Consumption: 3.0uA (Typ.)
- Maximum output current: 2A
- Maximum input voltage: 18V
- Line regulation: 0.2% (Typical)
- Output Voltage Range: 1.2V~5.0V (customized on command in 0.1V steps)
- Highly Accurate: ±2% (±1% customized)
- Typical Dropout Voltage: 850mV@1.5A (Vout = 3.3V)
- Operation environment Temperature: -40°C~85°C
