BLDatasheet (PDF)

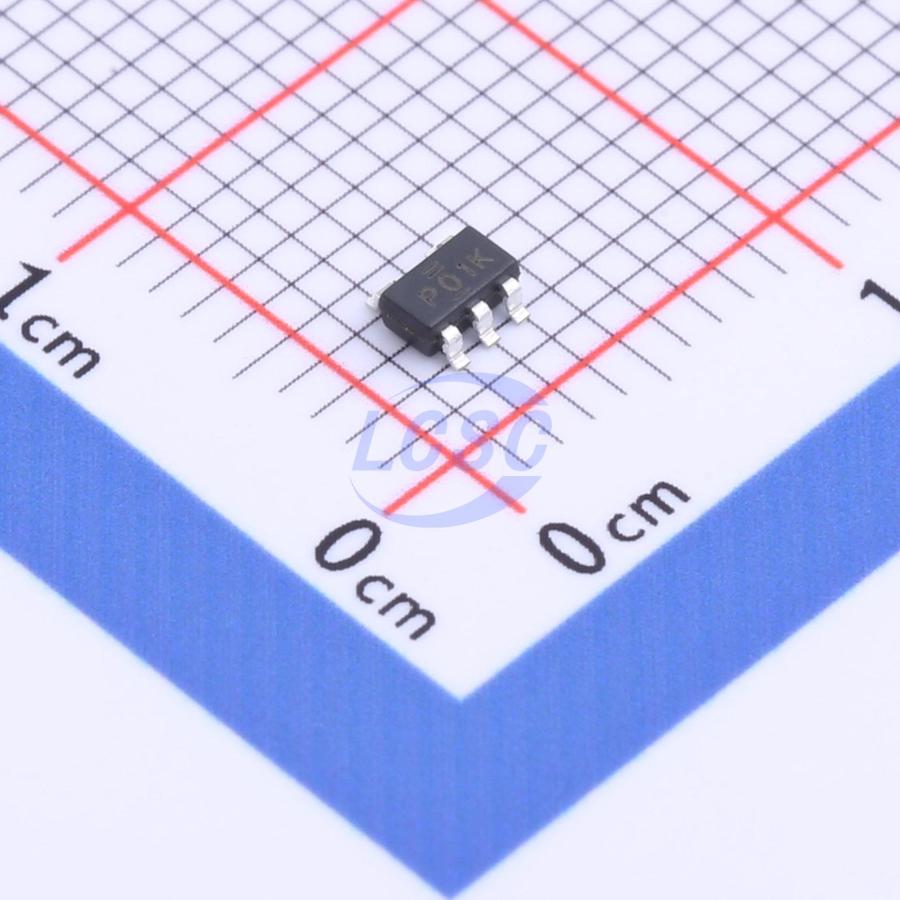

BL8075CB5TR50
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
16V 500mA low-power linear voltage regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8075CB5TR50
- Store part #
- C2763864
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,445 in stock
#C2763864
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.26 | ₹71.30 |
| 50+ | ₹11.35 | ₹567.50 |
| 150+ | ₹9.90 | ₹1,485.00 |
| 500+ | ₹8.80 | ₹4,400.00 |
| 3,000+ | ₹7.44 | ₹22,320.00 |
| 6,000+ | ₹7.00 | ₹42,000.00 |
5 × ₹14.26
₹71.30
excl. GST
₹84.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8075CB5TR50
₹71.30 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 16V
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
BL8075 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. It can provide 300mA output current when input / output voltage differential drops to 600mV (Vout = 3.3V), and it also provides foldback short-circuit protection, thermal protection and output current limit function. The very low power consumption of BL8075 (<10uA) can greatly improve natural life of batteries. BL8075 can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customize on command. BL8075 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8075 has well load transient response and good temperature characteristic, And it uses trimming technique to guarantee output voltage accuracy within ±2%.
Applications
- Battery Powered equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Reference Voltage Source Regulation after Switching Power
Key features
- Low Power Consumption: 10uA(Typ.)
- Maximum Output Current: 500mA
- Small Dropout Voltage 600mV@300mA (Vout = 3.3V), 1.2V@500mA (Vout = 3.3V)
- Input Voltage Range: 3V~16V
- Output Voltage Range: 1.2V~5.0V (customized on command in 0.1V steps)
- Highly Accurate: ±2% (±1% customized)
- Output Current Limit: 650mA
