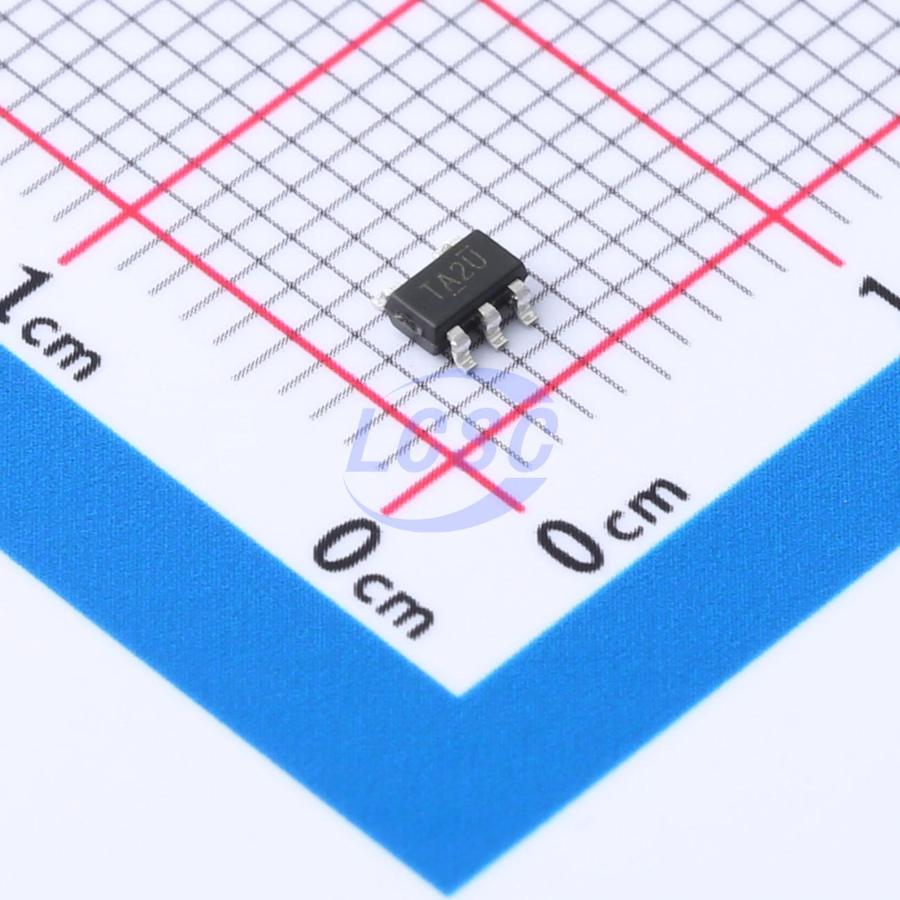

BL8079AGCB5TR
800mV~5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
600mA High PSRR, Fast Response Linear Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8079AGCB5TR
- Store part #
- C5291411
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,100 in stock
#C5291411
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.58 | ₹75.80 |
| 100+ | ₹6.19 | ₹619.00 |
| 300+ | ₹5.50 | ₹1,650.00 |
| 3,000+ | ₹4.82 | ₹14,460.00 |
| 6,000+ | ₹4.41 | ₹26,460.00 |
| 9,000+ | ₹4.19 | ₹37,710.00 |
10 × ₹7.58
₹75.80
excl. GST
₹89.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8079AGCB5TR
₹75.80 for 10 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Output Type
- Adjustable
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.051 g
Overview
BL8079AG series is a group of positive voltage output, low power consumption, low dropout voltage regulator. BL8079AG can provide output value adjustable from 0.8V to 5.0V. BL8079AG includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module with discharge capability. BL8079AG has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. It uses trimming technique to guarantee output voltage accuracy within ±2%. And it also provides fold back short-circuit protection, thermal shutdown and output current limit function. BL8079AG is available in SOT23-5 and DFN2*2-6 package which is lead free.
Applications
- Power source for cellular phones and various kind of PCSs
- Battery powered equipment
- Power management of MP3, PDA, DSC, Mouse, PS2 games
- Reference voltage source
- Regulation after switching power
Key features
- Low power consumption: 65uA (Typ.)
- Maximum output current: 600mA
- Low dropout voltage: 360mV@IOUT=600mA, VOUT = 3.3V
- Build-in chip enable and discharge circuit
- Input voltage range: 2~6V
- Adjustable output from 0.8V to 5.0V
- Output voltage accuracy: ±2%
- Output current limit
- Short circuit protection
- Over temperature protection
