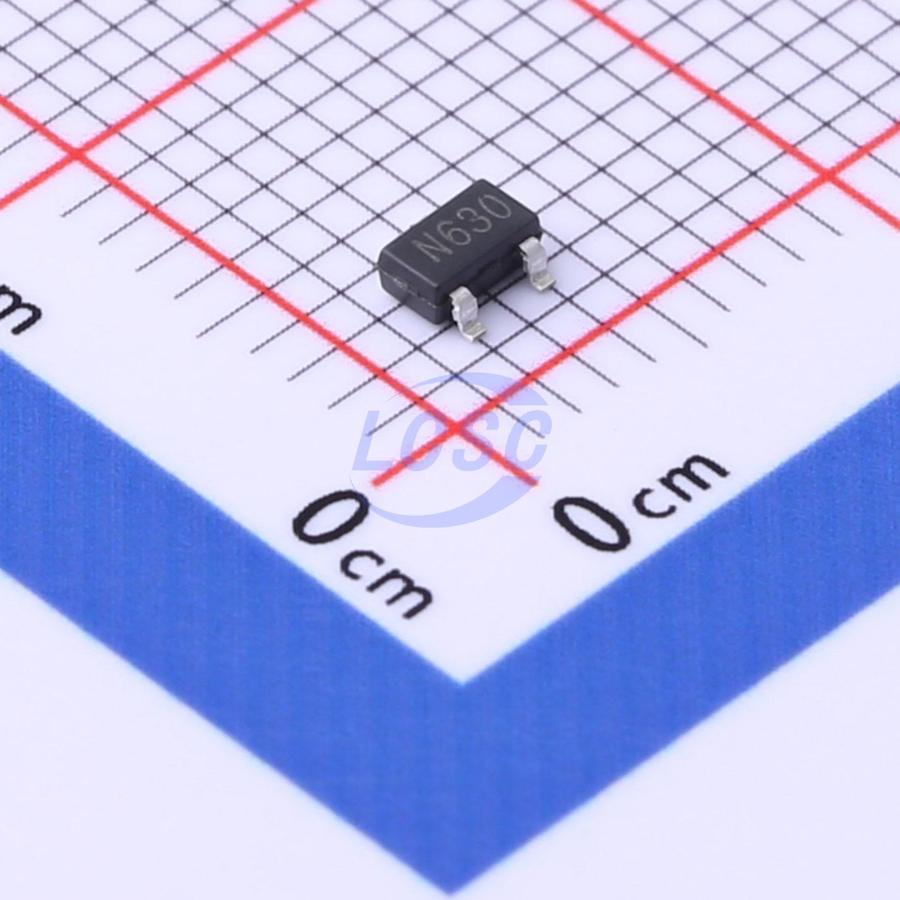

BL8506-30NRM
20us Active Low 700mV~10V 1 SOT-23 Supervisors
High-Precision Low Voltage Detector
- Manufacturer
- BL
- Manufacturer part #
- BL8506-30NRM
- Store part #
- C2763866
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,325 in stock
#C2763866
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.43 | ₹92.15 |
| 50+ | ₹14.46 | ₹723.00 |
| 150+ | ₹12.48 | ₹1,872.00 |
| 500+ | ₹10.98 | ₹5,490.00 |
| 3,000+ | ₹9.79 | ₹29,370.00 |
| 6,000+ | ₹9.19 | ₹55,140.00 |
5 × ₹18.43
₹92.15
excl. GST
₹108.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8506-30NRM
₹92.15 for 5 + GST
Specifications
- Reset Timeout
- 20us
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 1uA
- Voltage - Supply
- 700mV~10V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
BL8506 is a series of high precision voltage detector with ultra low current consumption (500nA typ. at Vdd = 3.0V). It can work at very low voltage, which makes it perfect for system reset. BL8506 is composed of high precision voltage reference, comparator, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming. Two type of output, CMOS and N-channel open-drain are available. BL8506 is available in SOT-89-3, SOT-23-3, TO92, SOT23-5 packages which are Pb free. High-Precision Low Voltage Detector
Applications
- Power monitor for portable equipment such as PDA, DSC, Mobile phone, Notebook, MP3
- CPU and Logic Circuit Reset
- Battery Checker
- Battery Back-up Circuit
- Power Failure Detector
Key features
- High-precision detection Voltage： ±2%
- Detection Voltage： 0.9V ~ 6.0V (in 0.1V steps)
- Precise hysteresis： 4% typ.
- Operating Voltage range： 0.7V ~ 10V
- Ultra-low current consumption：500nA typ. (at VDD = 3.0V)
- Two Output Forms ：CMOS(Active Low) and N-channel open-drain(Active Low)
