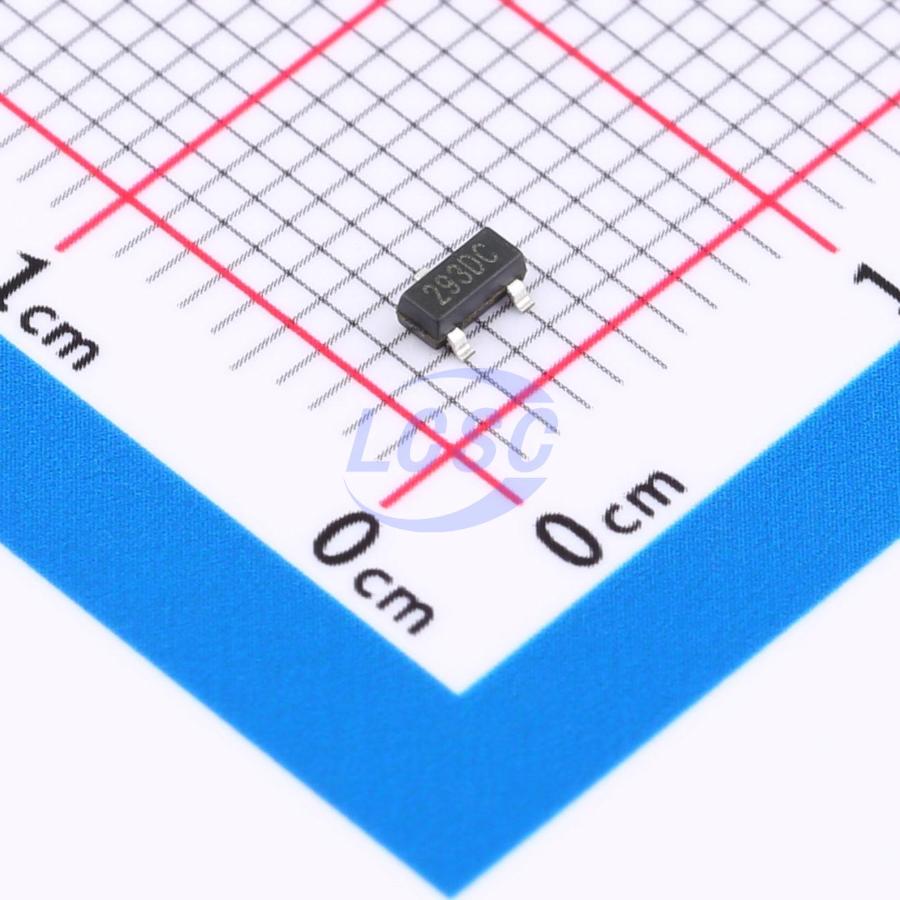

BL8518CB3TR293DC
200ms Active Low 1.2V~6V 1 SOT-23A Supervisors
Low Voltage Detector With Built-in Delay Circuit
- Manufacturer
- BL
- Manufacturer part #
- BL8518CB3TR293DC
- Store part #
- C691891
- Package / case
- SOT-23A
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,645 in stock
#C691891
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.21 | ₹71.05 |
| 50+ | ₹11.68 | ₹584.00 |
| 150+ | ₹10.41 | ₹1,561.50 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 3,000+ | ₹8.71 | ₹26,130.00 |
| 6,000+ | ₹8.32 | ₹49,920.00 |
5 × ₹14.21
₹71.05
excl. GST
₹83.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8518CB3TR293DC
₹71.05 for 5 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- Reset Active Level
- Active Low
- standby current
- 4.5uA
- Voltage - Supply
- 1.2V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
BL8518 is a series of high precision voltage detector with ultra-low current consumption (4.5uA typ. at Vin = 3.0V) and a built-in delay circuit. It can work at very low voltage, which makes it perfect for system reset. BL8518 is composed of high precision voltage reference, comparator, delay circuit, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming. Two type of output, CMOS and N-channel opendrain are available. BL8518 is available in small size SOT-23 package which is Pb free.
Applications
- Power monitor for portable equipment such as PDA, DSC, Mobile phone, Notebook, MP3
- CPU and Logic Circuit Reset
- Battery Checker
- Battery Back-up Circuit Power Failure Detector
Key features
- High-Precision Detection Voltage: ±3%
- Detection Voltage: 2.63V and 2.93V (customized other voltages)
- Built-in Power on Reset Delay time circuit: Refer to Selection Guide
- Operating Voltage Range: 1.2V~6V
- Ultra-low current consumption: 4.5uA typ. (at Vin = 3.0V)
- Two Output Forms: CMOS (Active Low) and N-channel open-drain (Active Low)
