BLDatasheet (PDF)

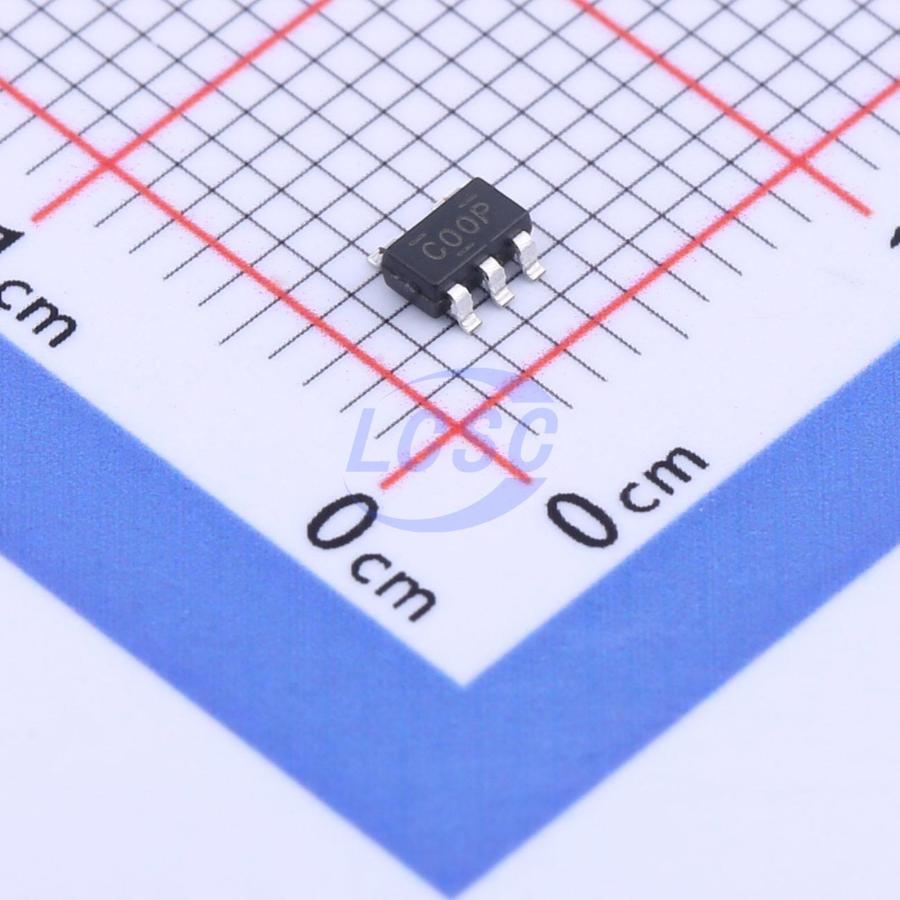

BL8555-30PRA
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low noise 150mA LDO regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8555-30PRA
- Store part #
- C2834971
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C2834971
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.22 | ₹66.10 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.18 | ₹1,377.00 |
| 500+ | ₹8.16 | ₹4,080.00 |
| 3,000+ | ₹7.01 | ₹21,030.00 |
| 6,000+ | ₹6.62 | ₹39,720.00 |
5 × ₹13.22
₹66.10
excl. GST
₹78.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8555-30PRA
₹66.10 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 150mA
- Features
- Enable control;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
BL8555 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. BL8555 can provide output value in the range of 1.2V~5.0V every 0.1V step. It also can be customized on command. BL8555 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8555 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8555 is available in SOT-23-5,SC-70-5 packages which is lead free. It also can available in these packages with lead.
Applications
- Power source for cellular phones and various kind of PCSs
- Battery Powered equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Reference Voltage Source
- Regulation after Switching Power
Key features
- Low Power Consumption: 25uA (Typ.)
- Low output noise (27uVRMS)
- Standby Mode: 0.1uA
- Low dropout Voltage: 0.2V@100mA (Typ.)
- High Ripple Rejection: 65dB@1kHz (Typ.)
- Low Temperature Coefficient: ±100ppm/°C
- Excellent Line regulation: 0.05%N
- Build-in chip enable circuit
- Output Voltage Range: 1.2V~5.0V (customized on command every 0.1V step)
- Highly Accurate: ±2% (±1% customized)
- Output Current Limit
