BLDatasheet (PDF)

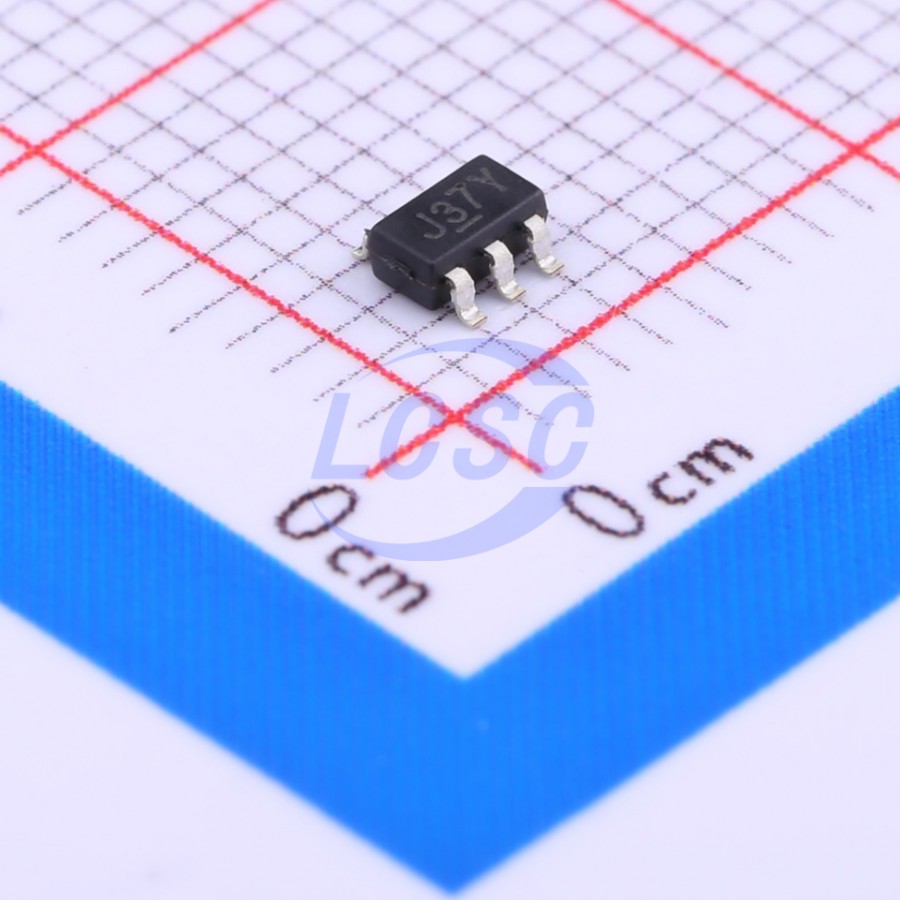

BL8558-33PRN
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low-noise, fast-response 500mA LDO voltage regulator
- Manufacturer
- BL
- Manufacturer part #
- BL8558-33PRN
- Store part #
- C313519
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,825 in stock
#C313519
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.16 | ₹50.80 |
| 50+ | ₹8.00 | ₹400.00 |
| 150+ | ₹6.91 | ₹1,036.50 |
| 500+ | ₹6.11 | ₹3,055.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹5.13 | ₹30,780.00 |
5 × ₹10.16
₹50.80
excl. GST
₹59.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8558-33PRN
₹50.80 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 75uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 8V
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.087 g
Overview
BL8558 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. BL8558 can provide output value in the range of 1.2V~4.5V every 0.1V step. It also can be customized on command. BL8558 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module with discharge capability. BL8558 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8558 is available in SOT-23-5, SOT89-3, SOT23-3, TO92 packages which are lead free.
Applications
- Power source for cellular phones and various kind of PCSs
- Battery Powered equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Reference Voltage Source
- Regulation after Switching Power
Key features
- Low Power Consumption: 75uA（Typ.）
- Low output noise (47uVRMS)
- Standby Mode: 0.1uA
- Low dropout Voltage: 0.46V@500mA (Typ.)
- High Ripple Rejection: 66dB@100Hz (Typ.)
- Low Temperature Coefficient: ±100ppm/°C
- Excellent Line regulation: 0.05%/V
- Build-in chip enable and discharge circuit
- Output Voltage Range: 1.2V~4.5V (customized on command every 0.1V step)
- Highly Accurate: ±2% (±1% customized)
- Output Current Limit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL8075CB5TR33#C2763863BL · SOT-23-5 | BL | SOT-23-5 | 2,545 | ₹13.92 · 2,545 in stock | View |
 | BL8568GCB5ATR33#C5118079BL · SOT-23-5 | BL | SOT-23-5 | 4,650 | ₹7.38 · 4,650 in stock | View |
