BLDatasheet (PDF)

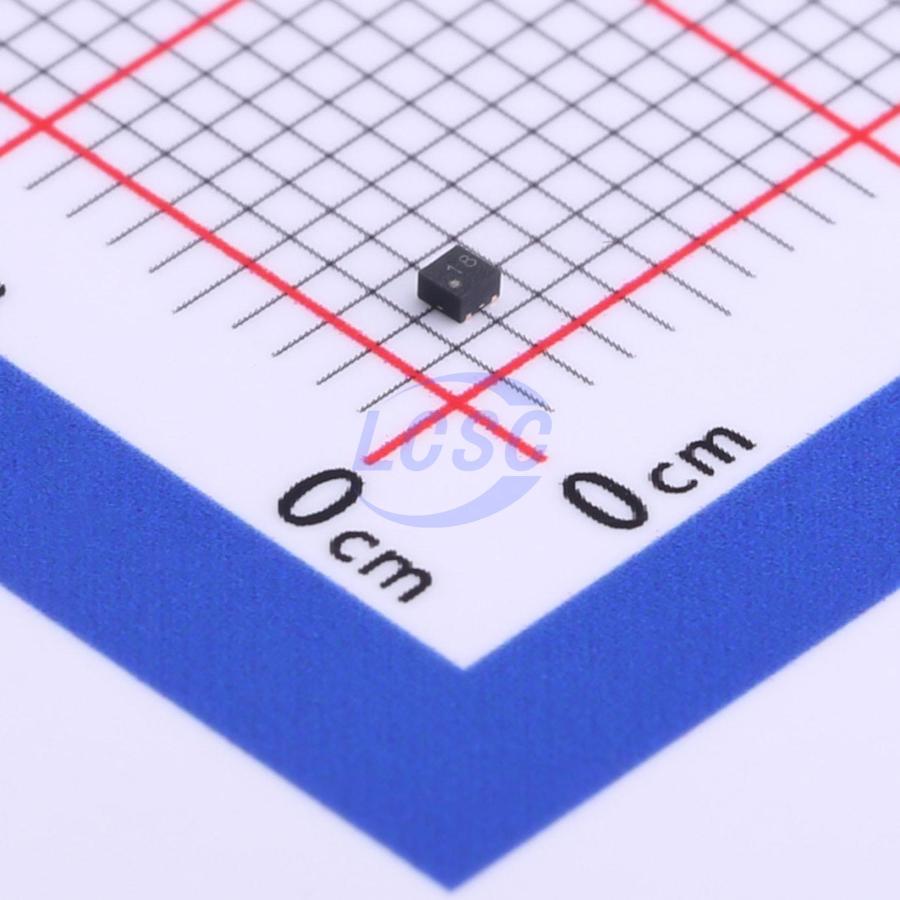

BL8563CKETR18
1.8V Positive Fixed DFN1x1-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4RoHSActive
300mA High PSRR, Linear Regulator, w/ Output Discharge
- Manufacturer
- BL
- Manufacturer part #
- BL8563CKETR18
- Store part #
- C691897
- Package / case
- DFN1x1-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,615 in stock
#C691897
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.89 | ₹59.45 |
| 50+ | ₹9.51 | ₹475.50 |
| 150+ | ₹8.32 | ₹1,248.00 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 2,500+ | ₹6.71 | ₹16,775.00 |
| 5,000+ | ₹5.85 | ₹29,250.00 |
5 × ₹11.89
₹59.45
excl. GST
₹70.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BL8563CKETR18
₹59.45 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 35uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Overview
BL8563 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. BL8563 can provide output value in the range of 1.0V~4.5V every 0.1V step. It also can be customized on command. BL8563 can also work under a wide input voltage ranging from 2.0V to 6V. BL8563 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8563 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8563 is available in SOT-23-3, SOT-23-5, SC-70-5, DFN1x1-4 and DFN1.2x1.6-4 packages which is lead free.
Applications
- Power source for cellular phones and various kind of PCSs Battery Powered equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Voltage Reference Regulation after Switching Power
Key features
- Output voltage range: 1.0V~4.5V (customized on command every 0.1V step)
- Low power consumption: 35uA (Typ.)
- Low output noise (47uVRMS)
- Shutdown mode: 0.1uA
- Low dropout voltage: 300mV@300mA (Typ.)
- High ripple rejection: 70dB@1KHz (Typ.)
- Low temperature coefficient: ±100ppm/°C
- Excellent line regulation: 0.05%/V
- Build-in 1.5K discharge resistor when CE low
- Highly accurate: ±2%
- Output current limit
- Fold-back output short circuit protection
