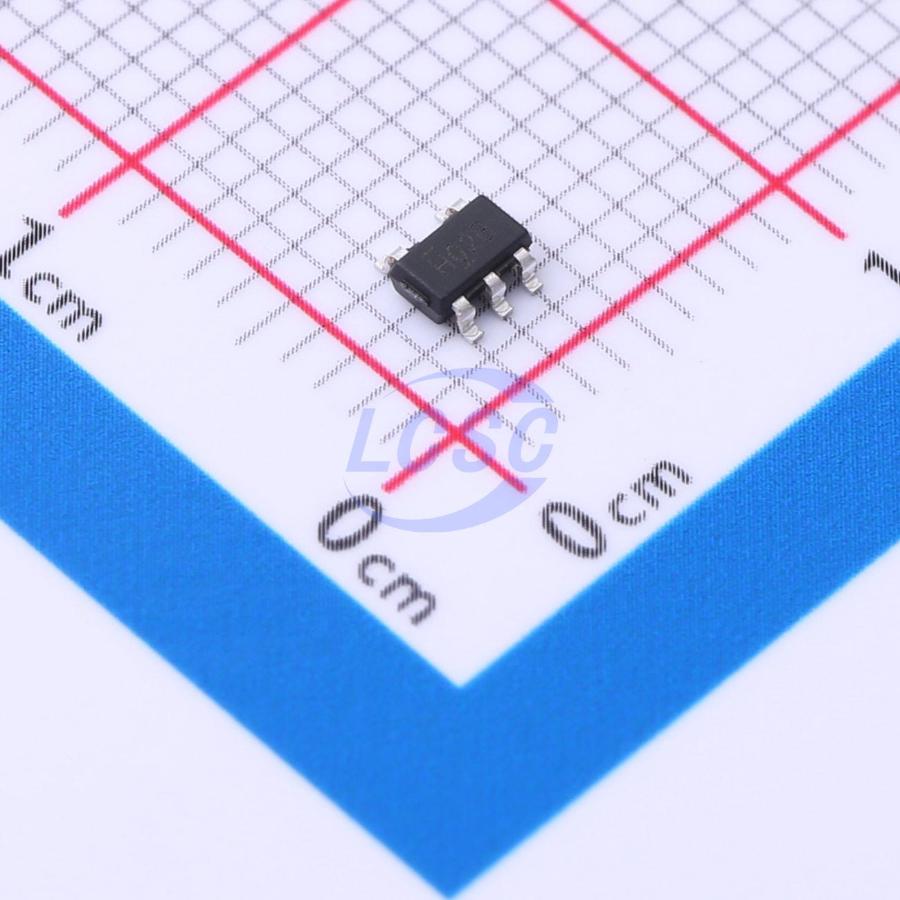

BL8568GCB5ATR30
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR, Linear Regulator, w. Output Discharge
- Manufacturer
- BL
- Manufacturer part #
- BL8568GCB5ATR30
- Store part #
- C5118078
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,620 in stock
#C5118078
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.22 | ₹82.20 |
| 100+ | ₹6.55 | ₹655.00 |
| 300+ | ₹5.72 | ₹1,716.00 |
| 3,000+ | ₹5.09 | ₹15,270.00 |
| 6,000+ | ₹4.59 | ₹27,540.00 |
| 9,000+ | ₹4.34 | ₹39,060.00 |
10 × ₹8.22
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL8568GCB5ATR30
₹82.20 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
BL8568G series is a group of positive voltage output, low power consumption, low dropout voltage regulator. BL8568G can provide output value in the range of 0.9V~4.5V every 0.1V step. It also can be customized on command. BL8568G can also work under a wide input voltage ranging from 2.0V to 6V.
Applications
- Power source for cellular phones and various kind of PCSs
- Battery Powered equipment
- Power Management of MP3, PDA, DSC, Mouse, PS2 Games
- Voltage Reference Regulation after Switching Power
Key features
- BL8568G includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module.
- BL8568G has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%.
- BL8568G is available in SOT-23-3, SOT-23-5, SC-70-5, DFN1x1-4 and DFN1.2x1.6-4 packages which is lead free.
- Output voltage range: 0.9V~4.5V (customized on command every 0.1V step)
- Low power consumption: 80uA (Typ.)
- Shutdown mode: 0.1uA
- Low dropout voltage: 65mV@100mA
- High ripple rejection: 70dB@1KHz (Typ.)
- Low temperature coefficient: ±100ppm/°C
- Excellent line regulation: 0.05%/V
- Build-in chip enable and discharge circuit
- Highly accurate: ±2% Output current limit
