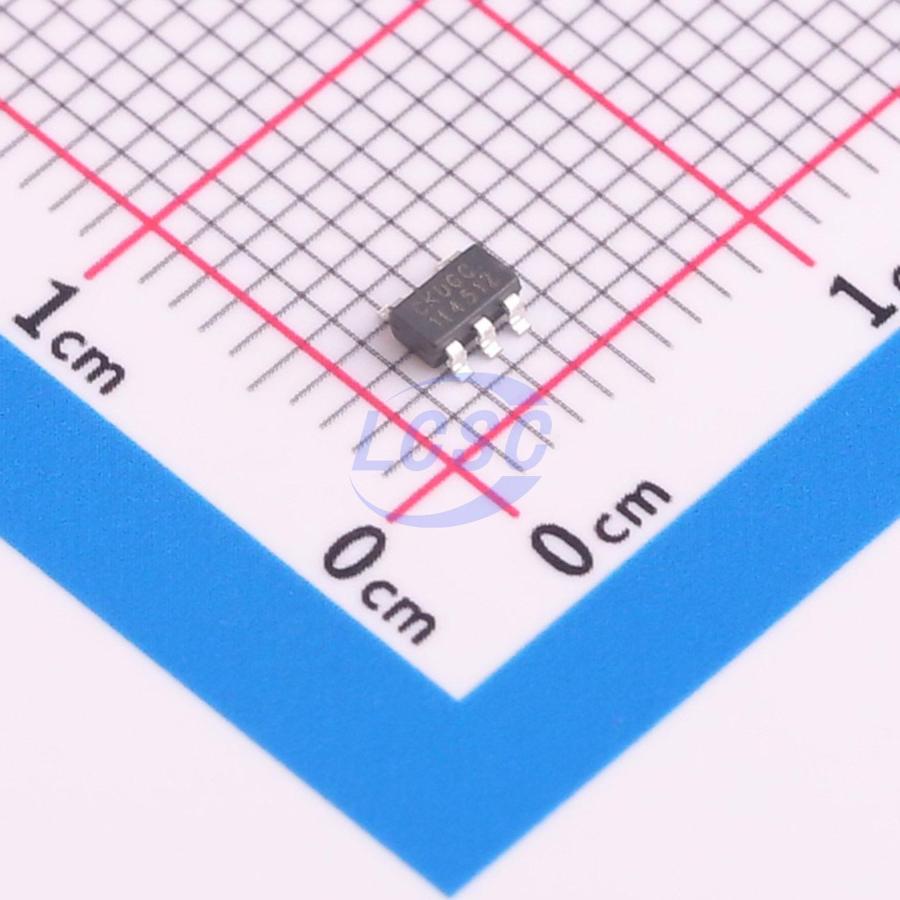

BL9161-15BARN

1.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

300mA Ultra-low Noise, Ultra-Fast CMOS LDO Regulator

Manufacturer: BL
Manufacturer part #: BL9161-15BARN
Store part #: C2932539
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,290 in stock

#C2932539

Stock & price checked 40 h ago

Quantity	Unit price	Pack price
10+	₹7.01	₹70.10
100+	₹5.57	₹557.00
300+	₹4.86	₹1,458.00
3,000+	₹4.31	₹12,930.00
6,000+	₹3.88	₹23,280.00
9,000+	₹3.66	₹32,940.00

Quantity (min 10, multiples of 10)

10 × ₹7.01

₹70.10

excl. GST

₹82.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL9161-15BARN

₹70.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 110uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Thermal shutdown;Output discharge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.05 g

Overview

The BL9161 is designed for portable applications with demanding performance and space requirements. The BL9161 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9161 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9161 consumes less than 0.1μA in shutdown mode and has fast turn-on time (Typical 50µs). The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in SOT23-5 package.

Applications

Cellular and Smart Phones
Cordless Telephones
Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Hand-Held Instruments
PCMCIA Cards
MP3/MP4/MP5 Players
Portable Information Appliances

Key features

Ultra-low Noise
Ultra-Fast Response in Line/Load Transient
<0.1μA Standby Current When Shutdown
Low Dropout: 230mV@300mA
Wide Operating Voltage Ranges: 2V to 5.5V
Low Temperature Coefficient
Current Limiting Protection
Thermal Shutdown Protection
Only 1μF Output Capacitor Required for Stability
High Power Supply Rejection Ratio
Fast output discharge
Available in SOT23-5 Package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BL8568GCB5ATR15#C5118076BL · SOT-23-5	BL	SOT-23-5	3,000	₹4.82 · 3,000 in stock	View
BL9161G-15BARN#C2987734BL · SOT-23-5	BL	SOT-23-5	50	₹7.94 · 50 in stock	View
BL8568CB5ATR15#C2909396BL · SOT-23-5	BL	SOT-23-5	On request	₹14.82 · 0 in stock	View
