BLDatasheet (PDF)

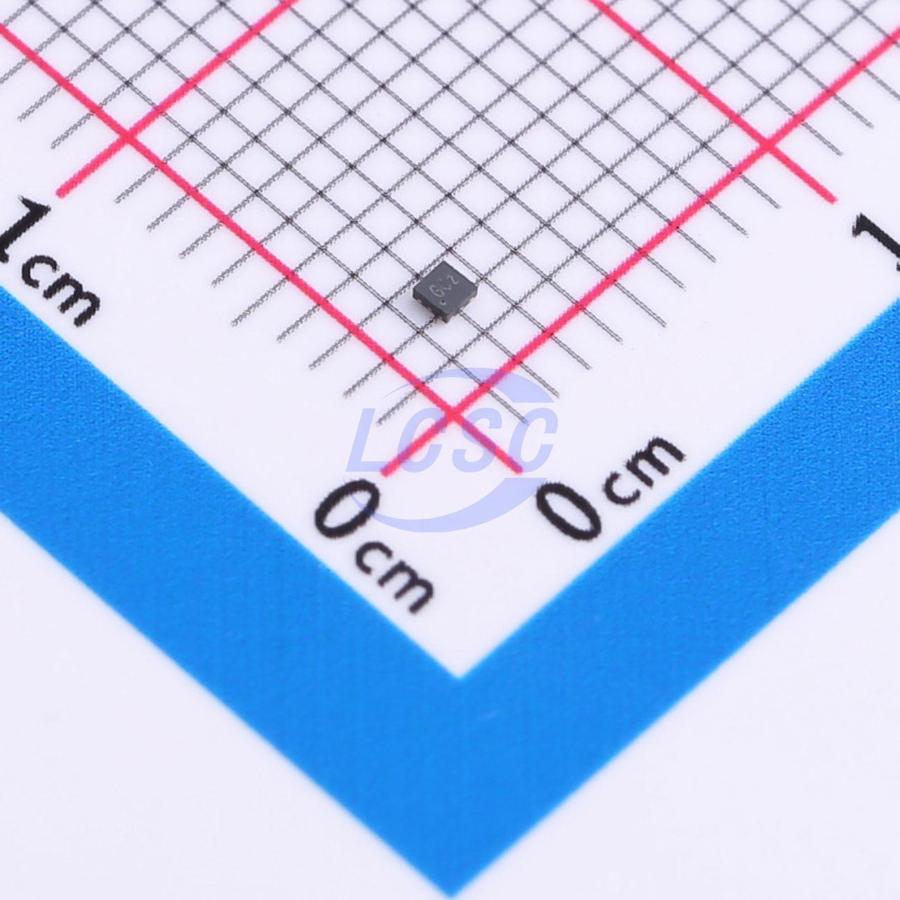

BL9161G-15BADRN
1.5V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN1x1-4LRoHSActive
300mA Ultra-low Noise, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL9161G-15BADRN
- Store part #
- C7462444
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C7462444
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.63 | ₹36.30 |
| 100+ | ₹3.55 | ₹355.00 |
| 300+ | ₹3.49 | ₹1,047.00 |
| 1,000+ | ₹3.44 | ₹3,440.00 |
10 × ₹3.63
₹36.30
excl. GST
₹42.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BL9161G-15BADRN
₹36.30 for 10 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
The BL9161G is designed for portable applications with demanding performance and space requirements. The BL9161G performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9161G also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9161G consumes only 0.01μA current in shutdown mode and has fast turn-on time (Typical 50μs). The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Cellular and Smart Phones
- Cordless Telephones
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- PCMCIA Cards
- MP3/MP4/MP5 Players
- Portable Information Appliances
Key features
- Ultra-low Noise
- Ultra-Fast Response in Line/Load Transient
- 0.01μA Standby Current When Shutdown
- Low Dropout: 205mV@300mA
- Wide Operating Voltage Ranges: 2.2V to 6V
- Low Temperature Coefficient
- Current Limiting Protection
- Thermal Shutdown Protection
- Only 1μF Output Capacitor Required for Stability
- High Power Supply Rejection Ratio
- Fast output discharge
- Available in SOT23-5, SOT23-3, SC70-5 and DFN1×1 -4L Package
