UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
BLDatasheet (PDF)

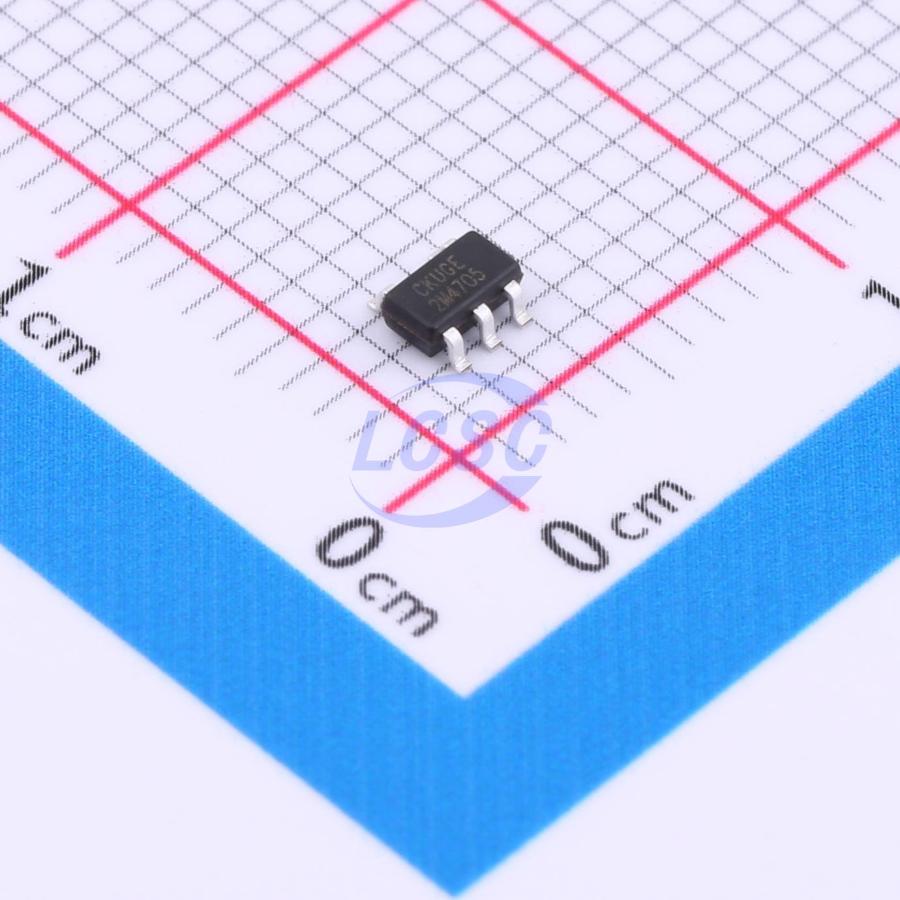

BL9161G-25BARN
2.5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA Ultra-low Noise, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL9161G-25BARN
- Store part #
- C3008777
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,130 in stock
#C3008777
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.64 | ₹66.40 |
| 100+ | ₹5.29 | ₹529.00 |
| 300+ | ₹4.60 | ₹1,380.00 |
| 3,000+ | ₹3.93 | ₹11,790.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.64
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL9161G-25BARN
₹66.40 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The BL9161G is designed for portable applications with demanding performance and space requirements. The BL9161G performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9161G also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9161G consumes only 0.01μA current in shutdown mode and has fast turn-on time (Typical 50μs). The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Cellular and Smart Phones
- Cordless Telephones
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- PCMCIA Cards
- MP3/MP4/MP5 Players
- Portable Information Appliances
Key features
- Ultra-low Noise
- Ultra-Fast Response in Line/Load Transient
- 0.01μA Standby Current When Shutdown
- Low Dropout: 205mV@300mA
- Wide Operating Voltage Ranges: 2.2V to 6V
- Low Temperature Coefficient
- Current Limiting Protection
- Thermal Shutdown Protection
- Only 1μF Output Capacitor Required for Stability
- High Power Supply Rejection Ratio
- Fast output discharge
- Available in SOT23-5, SOT23-3, SC70-5 and DFN1×1 -4L Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL8558-25PRN#C5185885BL · SOT-23-5 | BL | SOT-23-5 | 5 | ₹20.82 · 5 in stock | View |
 | BL8568CB5ATR25#C2932534BL · SOT-23-5 | BL | SOT-23-5 | 1,470 | ₹9.63 · 1,470 in stock | View |
