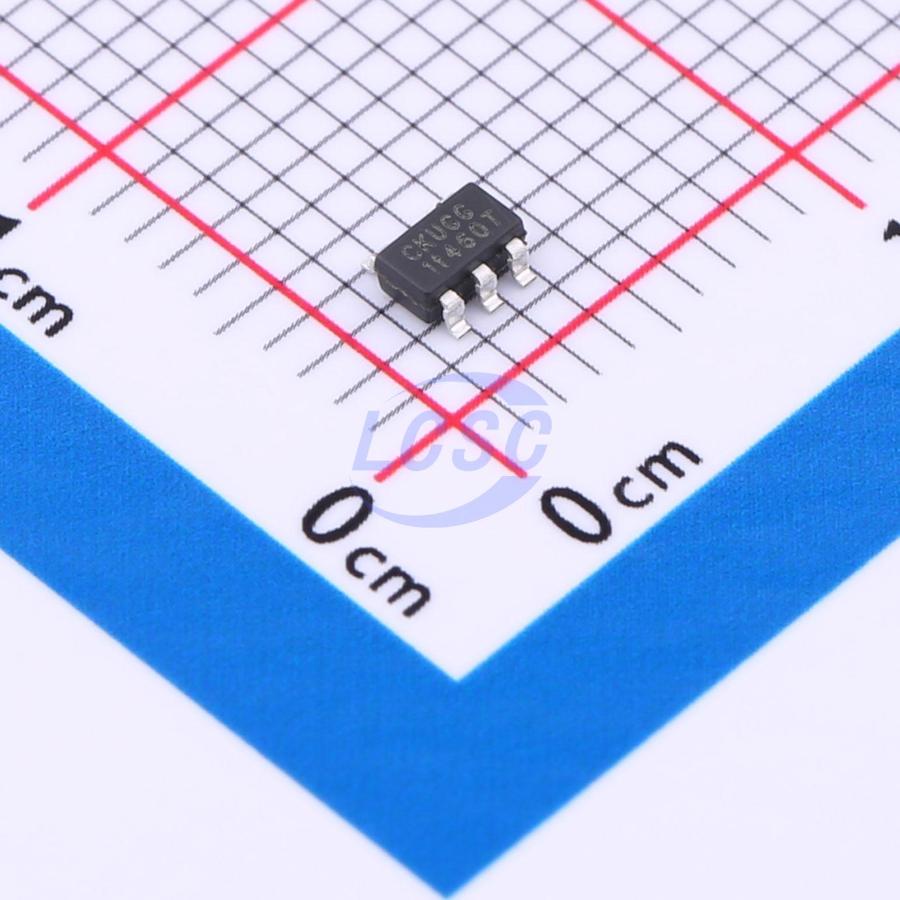

BL9161G-28BARN
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA Ultra-low Noise, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL9161G-28BARN
- Store part #
- C2927423
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,880 in stock
#C2927423
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.80 | ₹76.00 |
| 200+ | ₹2.98 | ₹596.00 |
| 600+ | ₹2.53 | ₹1,518.00 |
| 3,000+ | ₹2.25 | ₹6,750.00 |
| 9,000+ | ₹2.01 | ₹18,090.00 |
| 21,000+ | ₹1.88 | ₹39,480.00 |
20 × ₹3.80
₹76.00
excl. GST
₹89.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL9161G-28BARN
₹76.00 for 20 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 135uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.049 g
Overview
The BL9161G is designed for portable applications with demanding performance and space requirements. The BL9161G performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9161G also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9161G consumes only 0.01 μA current in shutdown mode and has fast turn-on time (Typical 50 μs). The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Cellular and Smart Phones
- Cordless Telephones
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- PCMCIA Cards
- MP3/MP4/MP5 Players
- Portable Information Appliances
Key features
- Ultra-low Noise
- Ultra-Fast Response in Line/Load Transient
- 0.01 μA Standby Current When Shutdown
- Low Dropout: 205 mV @ 300 mA
- Wide Operating Voltage Ranges: 2.2V to 6V
- Low Temperature Coefficient
- Current Limiting Protection
- Thermal Shutdown Protection
- Only 1 μF Output Capacitor Required for Stability
- High Power Supply Rejection Ratio
- Fast output discharge
- Available in SOT23-5, SOT23-3, SC70-5 and DFN1 x 1 -4L Package
