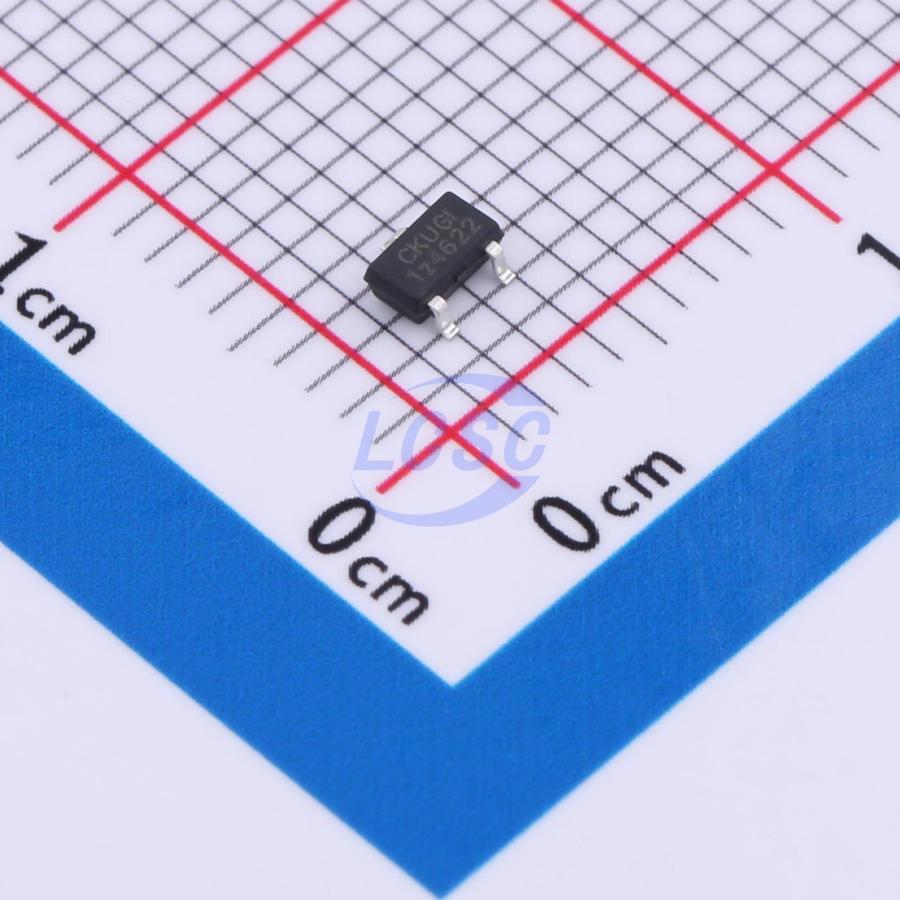

BL9161G-30BPRT

3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-3RoHSActive

300mA Ultra-low Noise, Ultra-Fast CMOS LDO Regulator

Manufacturer: BL
Manufacturer part #: BL9161G-30BPRT
Store part #: C2999152
Package / case: SOT-23-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,570 in stock

#C2999152

Stock & price checked 46 h ago

Quantity	Unit price	Pack price
10+	₹6.10	₹61.00
100+	₹4.84	₹484.00
300+	₹4.22	₹1,266.00
3,000+	₹3.76	₹11,280.00
6,000+	₹3.39	₹20,340.00
9,000+	₹3.19	₹28,710.00

Quantity (min 10, multiples of 10)

10 × ₹6.10

₹61.00

excl. GST

₹71.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BL9161G-30BPRT

₹61.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 200uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6V
Output Type: Fixed
Features: Enable control;Over Current Protection;Thermal shutdown;Output discharge

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.046 g

Overview

The BL9161G is designed for portable applications with demanding performance and space requirements. The BL9161G performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9161G also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9161G consumes only 0.01 μA current in shutdown mode and has fast turn-on time (Typical 50 μs). The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.

Applications

Cellular and Smart Phones
Cordless Telephones
Battery-Powered Equipment
Laptop, Palmtops, Notebook Computers
Hand-Held Instruments
PCMCIA Cards
MP3/MP4/MP5 Players
Portable Information Appliances

Key features

Ultra-low Noise
Ultra-Fast Response in Line/Load Transient
0.01 μA Standby Current When Shutdown
Low Dropout: 205 mV @ 300 mA
Wide Operating Voltage Ranges: 2.2V to 6V
Low Temperature Coefficient
Current Limiting Protection
Thermal Shutdown Protection
Only 1 μF Output Capacitor Required for Stability
High Power Supply Rejection Ratio
Fast output discharge
Available in SOT23-5, SOT23-3, SC70-5 and DFN1 x 1 -4L Package
