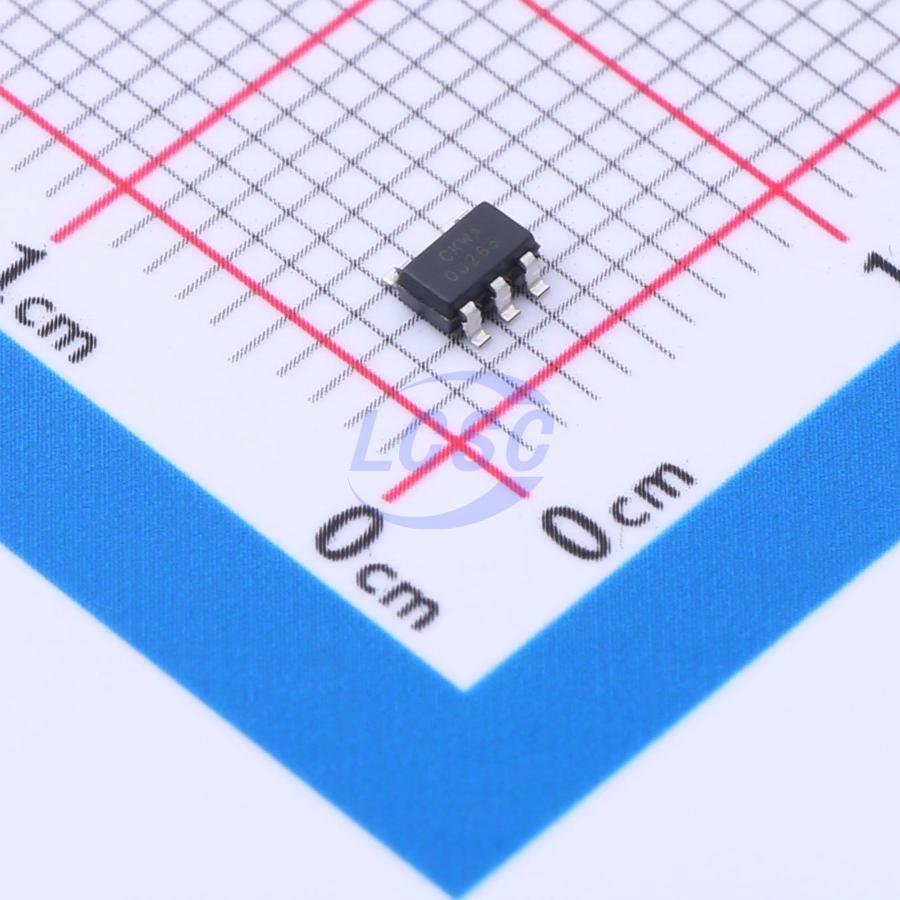

BL9165-120BARN
1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR, Ultra-low Noise, Ultra-Fast CMOS LDO Regulator
- Manufacturer
- BL
- Manufacturer part #
- BL9165-120BARN
- Store part #
- C2932544
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C2932544
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.90 | ₹54.50 |
| 50+ | ₹8.63 | ₹431.50 |
| 150+ | ₹7.47 | ₹1,120.50 |
| 500+ | ₹6.63 | ₹3,315.00 |
| 3,000+ | ₹5.94 | ₹17,820.00 |
| 6,000+ | ₹5.60 | ₹33,600.00 |
5 × ₹10.90
₹54.50
excl. GST
₹64.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL9165-120BARN
₹54.50 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The BL9165 is designed for portable applications with demanding performance and space requirements. The BL9165 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The BL9165 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The BL9165 consumes only 0.1μA current in shutdown mode and has fast turn-on time (Typical 100μs). The other features include ultra- low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
Applications
- Cellular and Smart Phones
- Cordless Telephones
- Camera and Machine Vision Modules
- Battery-Powered Equipment
- Laptop, Palmtops, Notebook Computers
- Hand-Held Instruments
- PCMCIA Cards Portable Information Appliances
Key features
- Ultra-low Noise
- Ultra-Fast Transient Response
- High PSRR: -87dB @ 217Hz -83dB @ 1KHz -54dB @ 1MHz
- 0.1μA Standby Current When Shutdown
- Low Dropout: 240mV@500mA (VOUT = 2.8V)
- Wide Operating Voltage Ranges: 1.8V to 5.5V
- Current Limiting and Short Circuit Current Protection
- Thermal Shutdown Protection
- Only 1μF Output Capacitor Required for Stability
- Fast output discharge
- Available in SOT23-5, SC70-5 and DFN1X1-4L Packages
