ROHMDatasheet (PDF)

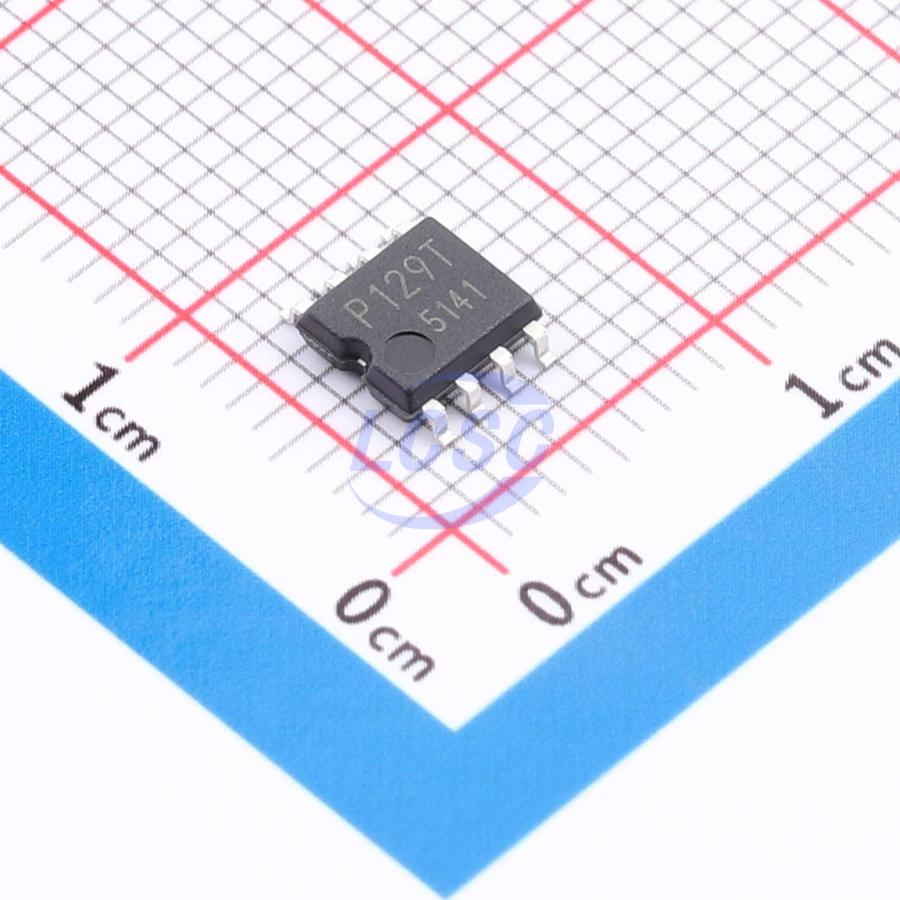

BM2P129TF-E2
94kHz~106kHz 1.3A 560mW 650V 8V~12.98V Buck SOIC-8-175mil AC DC Converters, Offline Switchers RoHS
SOIC-8-175milROHS3 CompliantActive
AC/DC Convertor IC PWM type DC/DC converter IC
- Manufacturer
- ROHM
- Manufacturer part #
- BM2P129TF-E2
- Store part #
- C3192971
- Package / case
- SOIC-8-175mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,662 in stock
#C3192971
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.84 | ₹71.84 |
| 10+ | ₹62.08 | ₹620.80 |
| 30+ | ₹57.09 | ₹1,712.70 |
| 100+ | ₹52.31 | ₹5,231.00 |
| 500+ | ₹49.27 | ₹24,635.00 |
| 1,000+ | ₹47.75 | ₹47,750.00 |
1 × ₹71.84
₹71.84
excl. GST
₹84.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BM2P129TF-E2
₹71.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Frequency - Switching
- 94kHz~106kHz
- Output Current
- 1.3A
- Pd - Power Dissipation
- 560mW
- Voltage - Breakdown
- 650V
- Voltage - Supply
- 8V~12.98V
- Topology
- Buck
- Features
- High voltage direct start;Light load efficient mode;EMI optimization (spread spectrum);Leading edge blanking;Under-voltage lockout;Soft-start;Over Voltage Protection;Under Voltage Protection;Over Current Protection;Overtemperature protection (OTP)
- Duty Cycle(Max)
- 75%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
The PWM type DC/DC converter for AC/DC provides an optimum system for all products that include an electrical outlet. It enables simpler design of a high effective converter specializing in non-isolated devices. This series has a built-in HV starter circuit that tolerates 650V/800V, and it contributes to low power consumption. With a current detection resistor for switching as internal device, it can be designed as small power supply. Since current mode control is utilized, current is restricted in each cycle and excellent performance is demonstrated in bandwidth and transient response. The switching frequency is fixed to 100 kHz. A frequency hopping function is also on chip, and it contributes to low EMI. In addition, a built-in super junction MOSFET which tolerates 650V/800V makes the design easy.
Applications
- LED lights
- air conditioners
- cleaners
Key features
- PWM frequency: 100kHz
- PWM current mode method
- Frequency hopping function Burst operation at light load
- Built-in 650V/800V start circuit
- Built-in 650V/800V switching MOSFET
- VCC pin under voltage protection
- VCC pin over voltage protection
- Over current limiter function per cycle Soft start function
