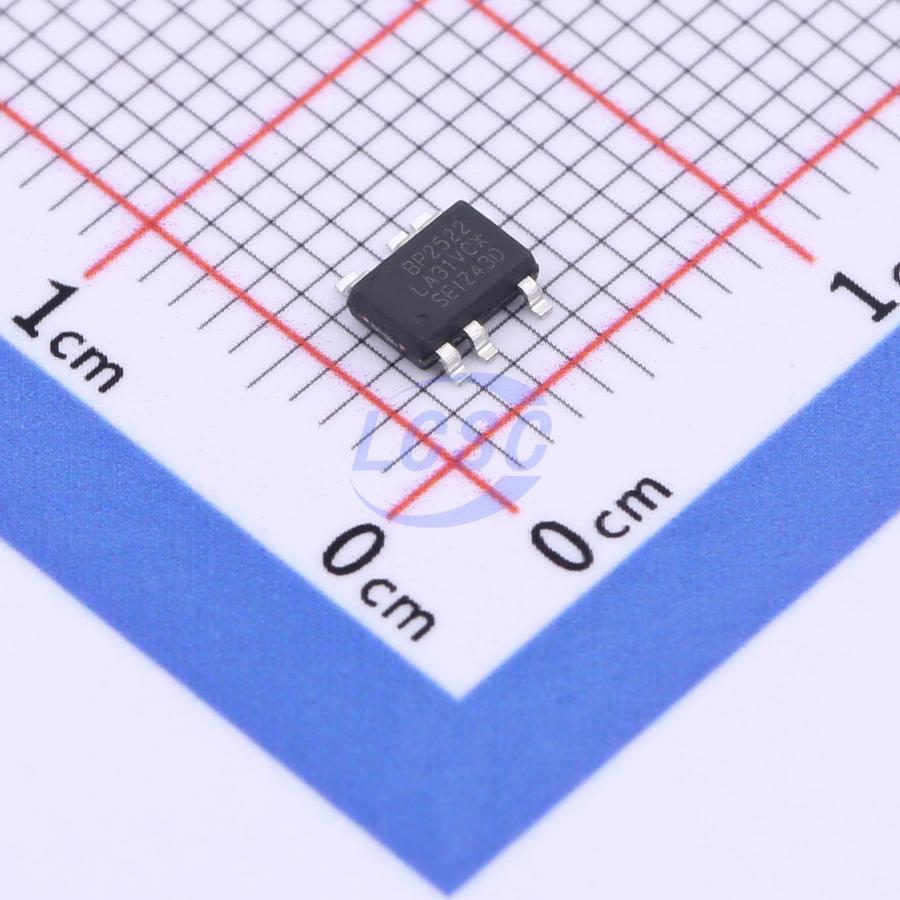

BP2522D

BP2522X is a high-precision, low standby power non-isolated buck constant voltage driver IC. Suitable for non-isolated power supplies with full voltage input ranging from 85Vac to 265Vac. The IC integrates a high-voltage power switch and employs a proprietary voltage-current control technique, achieving excellent constant voltage characteristics without external loop compensation capacitors, significantly reducing system cost and board space. The IC adopts multi-mode control technology and draws VCC supply from the output, effectively reducing system standby power consumption, improving efficiency and dynamic performance, and minimizing noise under light-load conditions. Available in SOT33-5A package.

Key features

• Ultra-low standby power consumption < 20mW
• Fixed 12V or 24V output voltage, selectable
• Integrated high-voltage power transistor with built-in high-voltage startup and supply circuit
• Excellent dynamic response
• Reduced-swing modulation technology for minimized audio noise
• Frequency dithering technology for improved EMI
• ±5% output voltage accuracy
• Built-in soft-start protection, overload protection, short-circuit protection, over-temperature protection, and cycle-by-cycle current limiting
