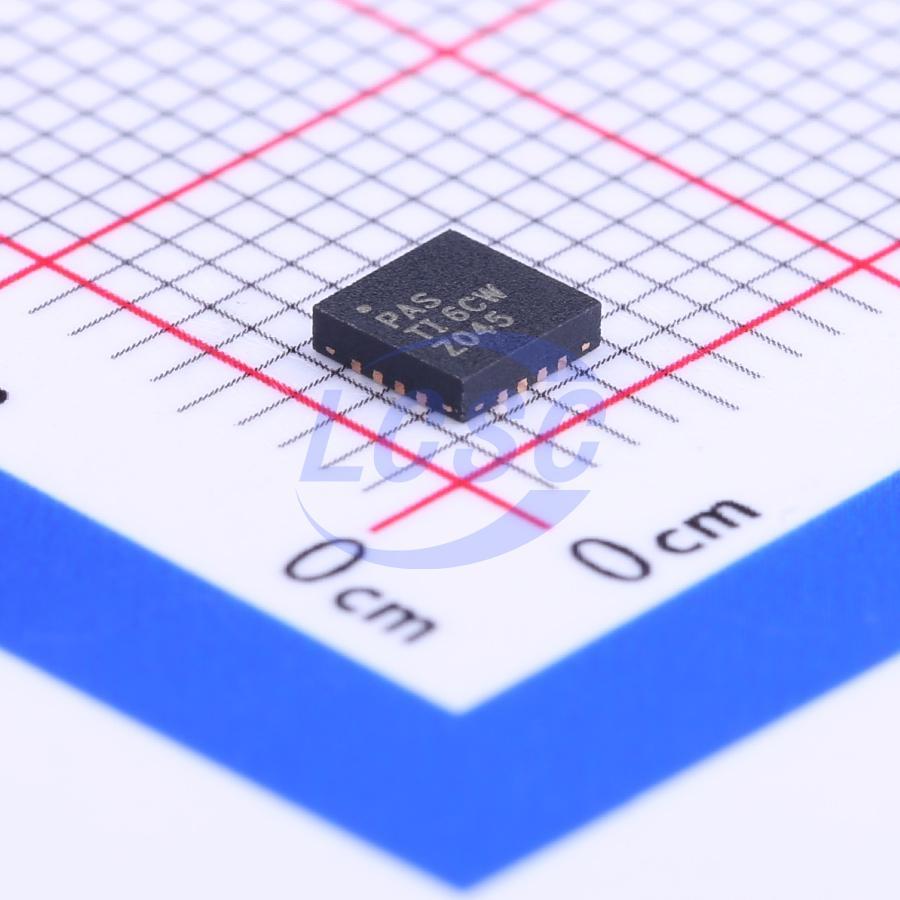

BQ24650RVAR

Charging IC VQFN-16-EP(3.6x3.6) Power Management - Specialized RoHS

VQFN-16-EP(3.6x3.6)ROHS3 CompliantActive

Stand-alone synchronous step-down battery charging controller suitable for solar applications with maximum power point tracking function

Manufacturer: TI
Manufacturer part #: BQ24650RVAR
Store part #: C53712
Package / case: VQFN-16-EP(3.6x3.6)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,636 in stock

#C53712

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹384.98	₹384.98
10+	₹339.96	₹3,399.60
30+	₹311.69	₹9,350.70
100+	₹277.31	₹27,731.00
500+	₹264.27	₹1,32,135.00
1,000+	₹258.61	₹2,58,610.00

Quantity (min 1)

1 × ₹384.98

₹384.98

excl. GST

₹454.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

BQ24650RVAR

₹384.98 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Charging IC
Operating Temperature: -40℃~+125℃
0V Battery Charge: Support
Type of Battery: Lithium Battery;LiFePO4 Battery;Lead-Acid Battery
Quiescent Current: 5uA
Voltage - Supply: 5V~28V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.072 g

Overview

The BQ24650 device is a highly integrated switching-mode battery charge controller. It provides input voltage regulation, which can reduce the charging current when the input voltage is lower than the programmed level. When a solar panel is used to power the input, the input regulation loop reduces the charging current to enable the solar panel to provide maximum power output. The BQ24650 provides a constant-frequency synchronous PWM controller with high-precision charging current and voltage regulation, pre-charge regulation, charge termination, and charge status monitoring functions. The BQ24650 charges the battery in three stages: pre-charge, constant-current charge, and constant-voltage charge. The charging operation is terminated when the current reaches 10% of the fast-charge rate. The pre-charge timer is fixed at 30 minutes. The BQ24650 automatically restarts the charging cycle when the battery voltage is below the internal threshold and enters a low quiescent current sleep mode when the input voltage is below the battery voltage. The BQ24650 supports a battery voltage range from 2.1V to 26V, and the VFB is set to a 2.1V feedback reference. The charging current can be programmed by selecting an appropriate sense resistor. The BQ24650 comes in a 16-pin, 3.5mm×3.5mm² thin QFN package.

Applications

Solar-powered applications
Remote monitoring stations
Portable handheld instruments
12V to 24V automotive systems
Current-limited power supplies

Key features

Maximum Power Point Tracking (MPPT) via input voltage regulation
Programmable MPPT settings
5V to 28V input solar panel
600kHz NMOS-NMOS synchronous buck controller
Resistor-programmable float voltage
Compatible with Li-Ion/Polymer, LiFePO₄, and lead-acid battery chemistries
Accuracy – ±0.5% charge voltage regulation, ±3% charge current regulation, ±0.6% input voltage regulation
High integration – internal loop compensation, internal digital soft-start
Protection – input overvoltage protection, battery temperature sensing, battery undervoltage detection, thermal shutdown
Charge status output for LED or host processor
MPPSET charge enable pin
Automatic sleep mode for reduced power consumption – shutdown battery discharge current <15μA
Compact 3.5×3.5mm², 16-pin QFN package
