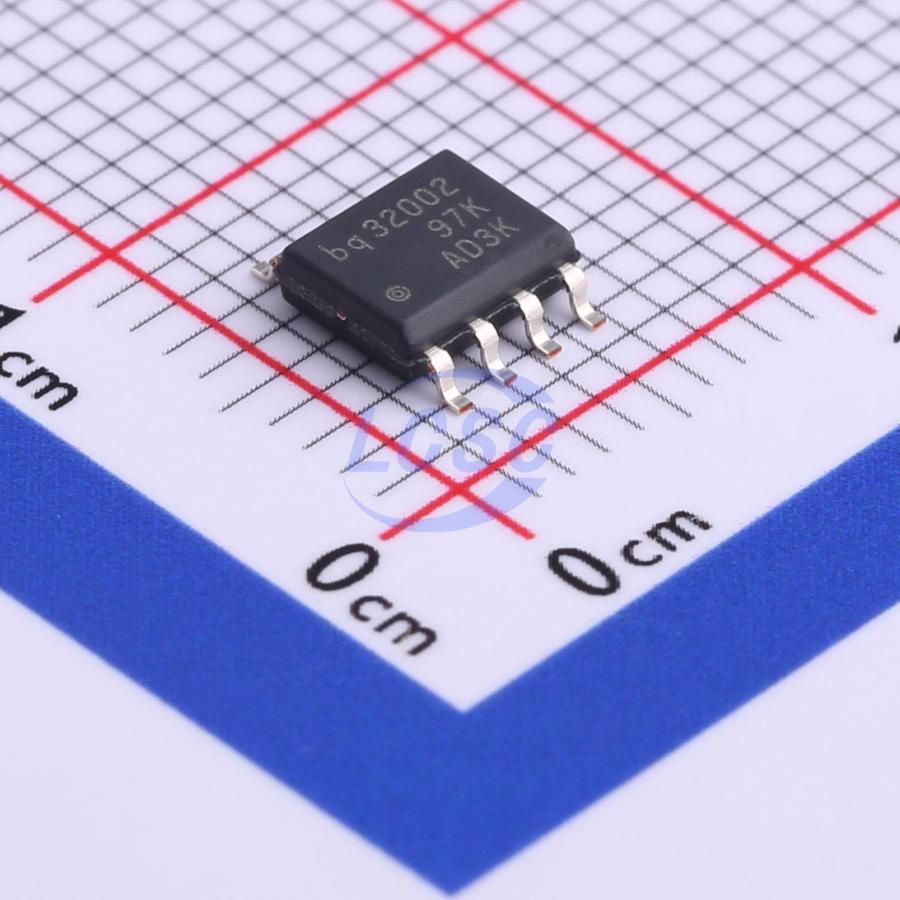

BQ32002DR
Built-in SOIC-8 Real Time Clocks RoHS
Real-Time Clock(RTC)
- Manufacturer
- TI
- Manufacturer part #
- BQ32002DR
- Store part #
- C575564
- Package / case
- SOIC-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,751 in stock
#C575564
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.69 | ₹181.69 |
| 10+ | ₹147.09 | ₹1,470.90 |
| 30+ | ₹129.91 | ₹3,897.30 |
| 100+ | ₹112.72 | ₹11,272.00 |
| 500+ | ₹102.49 | ₹51,245.00 |
| 1,000+ | ₹97.27 | ₹97,270.00 |
1 × ₹181.69
₹181.69
excl. GST
₹214.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BQ32002DR
₹181.69 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3V~3.6V
- Features
- Backup power management and battery charging
- crystal oscillator
- Built-in
- Current - Supply
- 65uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.172 g
Overview
The BQ32002 device is a compatible replacement for industry standard real-time clocks. The BQ32002 features an automatic backup supply that can be implemented using a capacitor or nonrechargeable battery. The BQ32002 has a programmable calibration adjustment from –63 ppm to +126 ppm. The BQ32002 registers include an OF (oscillator fail) flag indicating the status of the RTC oscillator, as well as a STOP bit that allows the host processor to disable the oscillator. The time registers are normally updated once per second, and all the registers are updated at the same time to prevent a timekeeping glitch. The BQ32002 includes automatic leap-year compensation.
Applications
- General Consumer Electronics
Key features
- Automatic Switchover to Backup Supply
- I²C Interface Supports Serial Clock up to 400 kHz
- Uses 32.768-kHz Crystal With –63-ppm to +126-ppm Adjustment
- Integrated Oscillator-Fail Detection
- 8-Pin SOIC Package
- -40 ℃ to +85 ℃ Ambient Operating Temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BQ32002D#C2861334TI · SOIC-8 | TI | SOIC-8 | 99 | ₹141.59 · 99 in stock | View | |
 | YSN8010SJ 32.768KHZ#C42930215YXC Crystal Oscillators · SOP-8 | YXC Crystal Oscillators | SOP-8 | 44 | ₹99.08 · 44 in stock | View |
 | YSN8010SJ#C51976804YXC Crystal Oscillators · SOP-8 | YXC Crystal Oscillators | SOP-8 | 8,468 | ₹98.87 · 8,468 in stock | View |
| M41T81SM6F#C152732ST · SOIC-8 | ST | SOIC-8 | 18 | ₹395.97 · 18 in stock | View | |
 | DS1683S+#C1520449MAXIM · SOIC-8 | MAXIM | SOIC-8 | On request | ₹973.50 · 0 in stock | View |
