ROHM

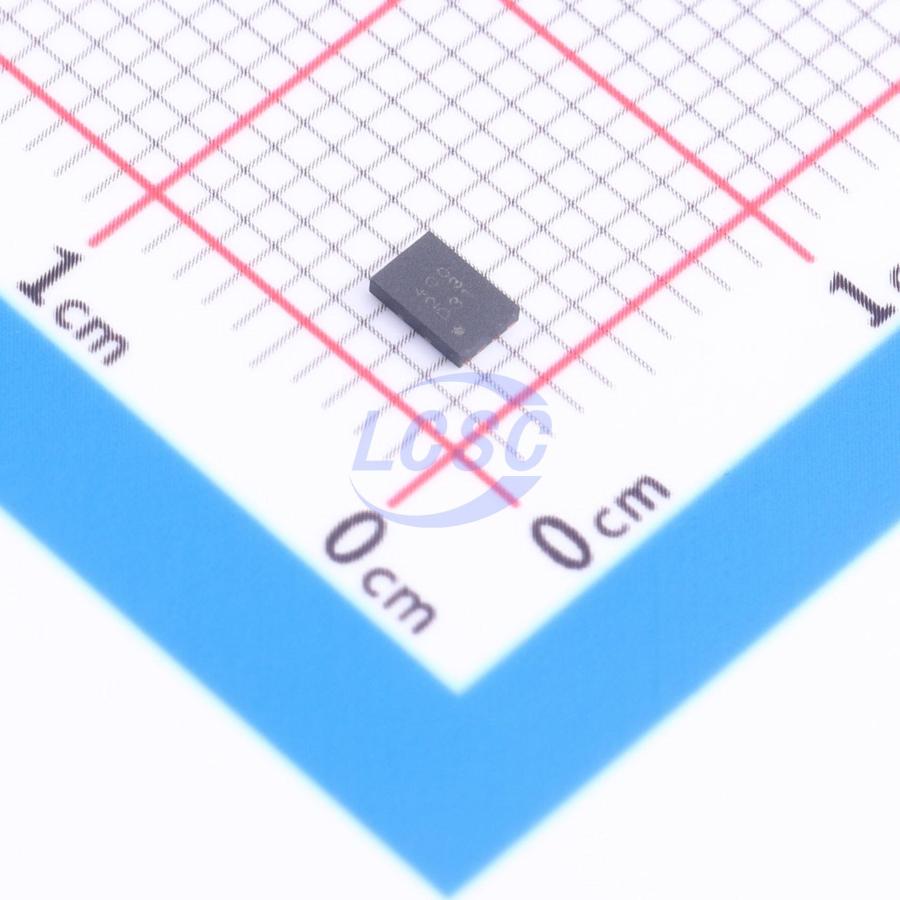

BR24G02NUX-3TTR
2Kbit 400kHz I2C VSON-8(2x3) Memory RoHS
VSON-8(2x3)ROHS3 CompliantActive
2Kbit I2C BUS EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2061429
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.07 | ₹200.35 |
| 50+ | ₹31.22 | ₹1,561.00 |
| 150+ | ₹27.43 | ₹4,114.50 |
| 500+ | ₹22.69 | ₹11,345.00 |
| 2,500+ | ₹20.59 | ₹51,475.00 |
| 4,000+ | ₹19.33 | ₹77,320.00 |
5 × ₹40.07
₹200.35
excl. GST
₹236.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BR24G02NUX-3TTR
₹200.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.064 g
Overview
BR24G02-3 is a 2Kbit serial EEPROM of I²C BUS Interface.
Key features
- Completely Conforming to the World Standard I2C BUS
- All Controls Available by 2 Ports of Serial Clock (SCL) and Serial Data (SDA)
- Other Devices than EEPROM can be Connected to the Same Port, Saving Microcontroller Port
- 1.6V to 5.5V Single Power Source Operation Most Suitable for Battery Use
- 1.6V to 5.5V Wide Limit of Operating Voltage, Possible FAST MODE 400KHz Operation
- Up to 8 Byte in Page Write Mode
- 256x8 Bit Format
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake Write (Write Protect) Function Added
- Prevention of Write Mistake at Low Voltage
- More than 1 Million Write Cycles
- More than 40 Years Data Retention
- Noise Filter Built in SCL / SDA Terminal
- Initial Delivery State FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M34E02-FMC6TG#C2061374ST · UFDFPN-8(2x3) | ST | UFDFPN-8(2x3) | 3 | ₹30.22 · 3 in stock | View |
 | CAT34C02HU4IGT4A#C233783onsemi · UDFN-8-EP(2x3) | onsemi | UDFN-8-EP(2x3) | 2 | ₹82.29 · 2 in stock | View |
 | BR24L02NUX-WTR#C308609ROHM · TDFN-8-EP(2x3) | ROHM | TDFN-8-EP(2x3) | 5 | ₹35.22 · 5 in stock | View |
 | NV34C02MUW3VTBG#C894150onsemi · DFN-8-EP(2x3) | onsemi | DFN-8-EP(2x3) | 83 | ₹84.53 · 83 in stock | View |
 | 24AA025T-I/MC#C2061199MICROCHIP · DFN-8-EP(2x3) | MICROCHIP | DFN-8-EP(2x3) | 7 | ₹159.02 · 7 in stock | View |
