ROHM

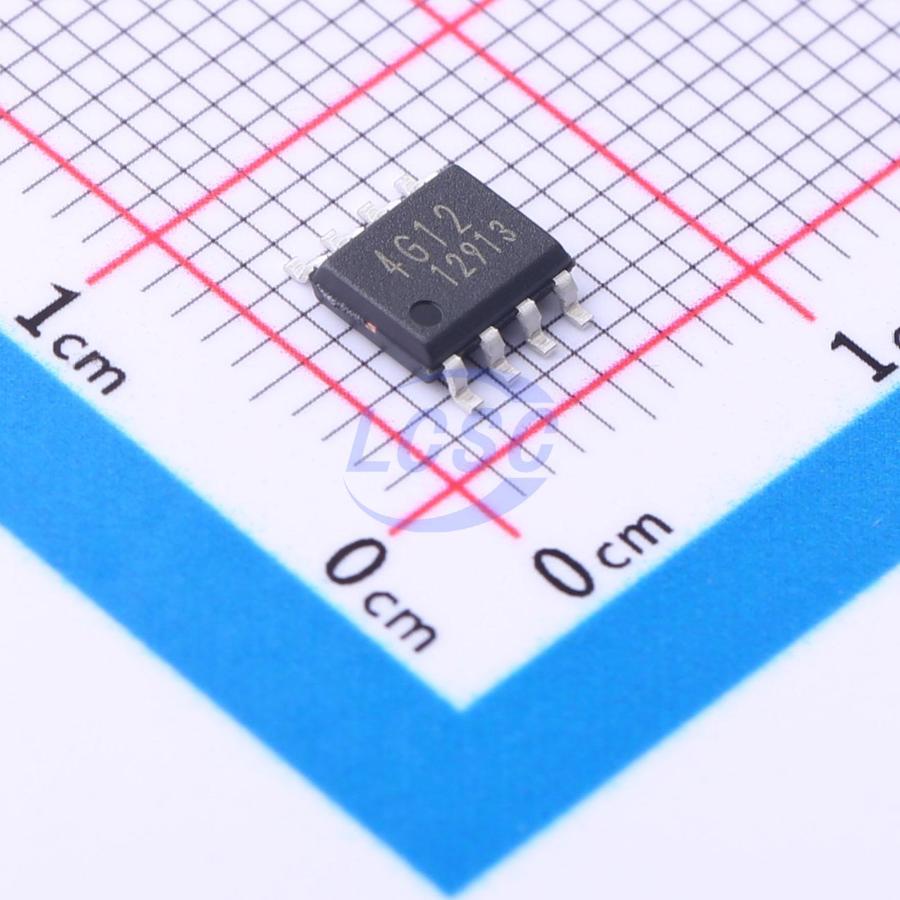

BR24G128FJ-3GTE2
128Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
I2C BUS EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C2061633
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.46 | ₹177.30 |
| 50+ | ₹30.97 | ₹1,548.50 |
| 150+ | ₹29.05 | ₹4,357.50 |
| 500+ | ₹24.36 | ₹12,180.00 |
| 2,500+ | ₹23.28 | ₹58,200.00 |
| 5,000+ | ₹22.65 | ₹1,13,250.00 |
5 × ₹35.46
₹177.30
excl. GST
₹209.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24G128FJ-3GTE2
₹177.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.6V~5.5V;2.5mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
BR24G128-3 series is a serial EEPROM of I²C BUS Interface Method
Key features
- Completely conforming to the world standard I2C BUS
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5V Single Power Source Operation most suitable for battery use
- 1.6V to 5.5V wide limit of operating voltage, possible FAST MODE 400kHz operation
- Page Write Mode useful for initial value write at factory shipment
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake Write (Write Protect) Function Added
- Prevention of Write Mistake At Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL / SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BR24G128F-3GTE2#C2062061ROHM · SOP-8 | ROHM | SOP-8 | 25 | ₹169.15 · 25 in stock | View | |
 | 24LC128T-I/SN-TUDI#C41411007Tudi · SOP-8 | Tudi | SOP-8 | 1,725 | ₹22.77 · 1,725 in stock | View |
 | 24AA128-I/SN#C511330MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 176 | ₹220.78 · 176 in stock | View |
 | HG24C128M/TR#C19193536HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,115 | ₹21.01 · 1,115 in stock | View |
 | 24AA128T-I/SN-TUDI#C41410997Tudi · SOP-8 | Tudi | SOP-8 | 2,342 | ₹73.94 · 2,342 in stock | View |
