ROHM

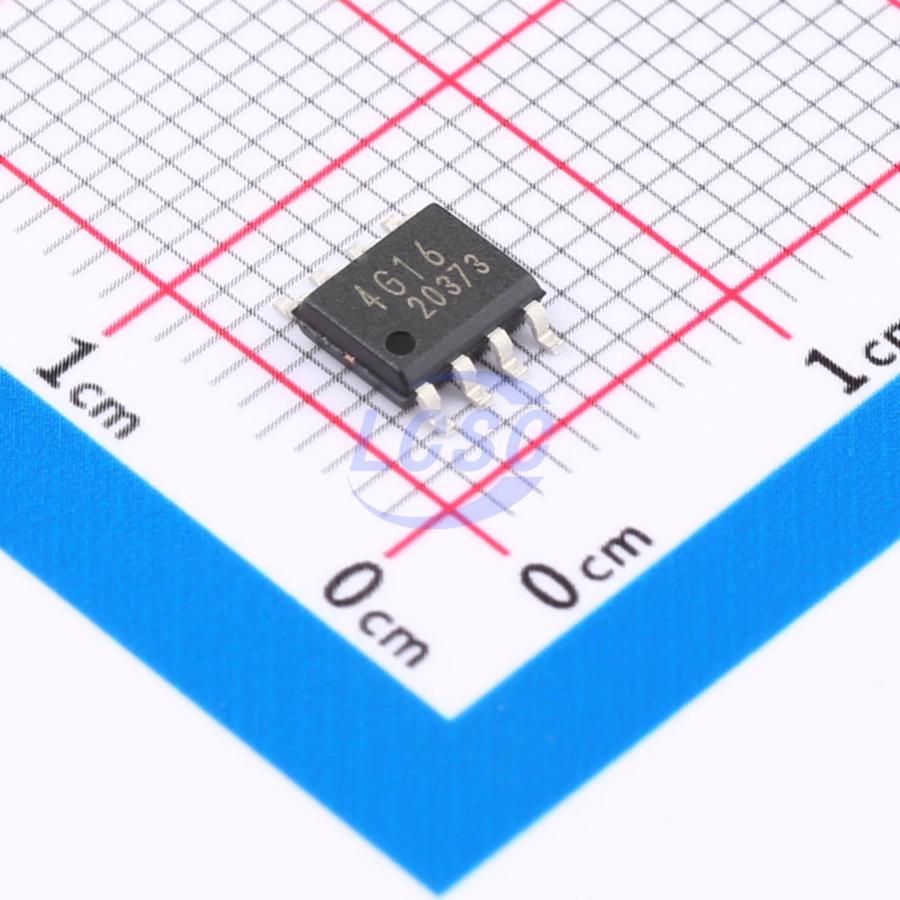

BR24G16FJ-3GTE2
16Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
I2C BUS EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,500 in stock
#C2061431
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.92 | ₹119.60 |
| 50+ | ₹18.99 | ₹949.50 |
| 150+ | ₹16.88 | ₹2,532.00 |
| 500+ | ₹14.24 | ₹7,120.00 |
| 2,500+ | ₹13.07 | ₹32,675.00 |
| 5,000+ | ₹12.36 | ₹61,800.00 |
5 × ₹23.92
₹119.60
excl. GST
₹141.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24G16FJ-3GTE2
₹119.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function;Power-down/Power-up protection circuit
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.201 g
Overview
BR24G16-3 is a 16Kbit serial EEPROM of I²C BUS Interface.
Key features
- Completely conforming to the world standard I²C BUS
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5V Single Power Source Operation most suitable for battery use
- 1.6V to 5.5V wide limit of operating voltage, possible FAST MODE 400kHz operation
- Up to 16 Byte in Page Write Mode
- Bit Format 2K x 8bit
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake WP(Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL / SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BR24T16FJ-WE2#C2061201ROHM · SOIC-8 | ROHM | SOIC-8 | 4 | ₹51.72 · 4 in stock | View |
 | BR24L16FJ-WE2#C2062145ROHM · SOIC-8 | ROHM | SOIC-8 | 25 | ₹151.68 · 25 in stock | View |
 | CAT24C16WI-GT3#C81197onsemi · SOIC-8 | onsemi | SOIC-8 | 9,045 | ₹38.34 · 9,045 in stock | View |
 | 24AA16-I/SN#C1349214MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 31 | ₹119.73 · 31 in stock | View |
 | 24AA16T-I/SN#C2061027MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2,166 | ₹78.02 · 2,166 in stock | View |
