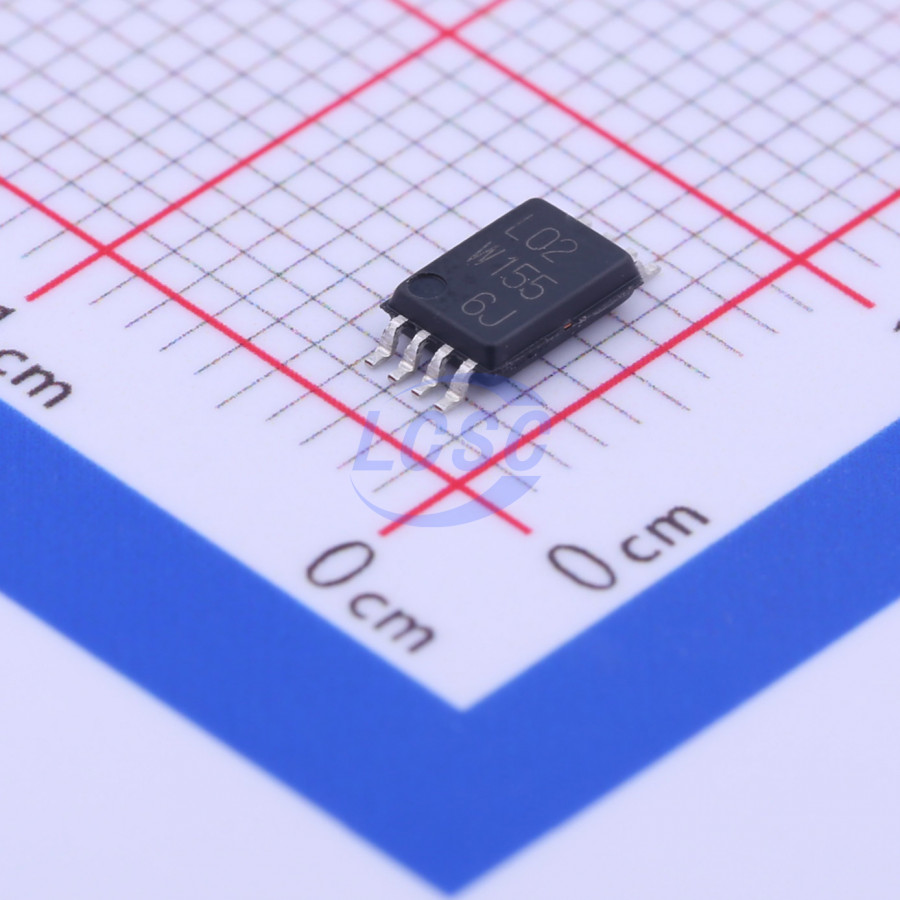

BR24L02FV-WE2

2Kbit 400kHz I2C LSSOP-8-175mil Memory RoHS

LSSOP-8-175milROHS CompliantActive

I²C BUS Serial EEPROM

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,030 in stock

#C337990

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹32.98

₹32.98

excl. GST

₹38.92 incl. 18% GST

BR24L02FV-WE2

₹32.98 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
Memory Size: 2Kbit
Voltage - Supply: 1.7V~5.5V;2mA
Clock Frequency: 400kHz
Data Retention - TDR (Year): 40 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 2uA
Write Cycle Endurance: 1,000,000 cycles
Interface: I2C

BR24Lxxx-W series is a serial EEPROM of I²C BUS interface method

Completely conforming to the I2C BUS
All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
Other devices than EEPROM can be connected to the same port, saving microcontroller port
1.8V to 5.5V single power source action most suitable for battery use
Page write mode useful for initial value write at factory shipment
Highly reliable connection by Au pad and Au wire
Auto erase and auto end function at data write
Low current consumption:
At write operation (5V): 1.2mA (Typ.)
At read operation (5V): 0.2mA (Typ.)
At standby operation (5V): 0.1μA (Typ.)
Write mistake prevention function
Write (write protect) function added
Write mistake prevention function at low voltage
Data rewrite up to 1,000,000 times
Data kept for 40 years
Noise filter built in SCL / SDA terminal
Shipment data all address FFh
