ROHM

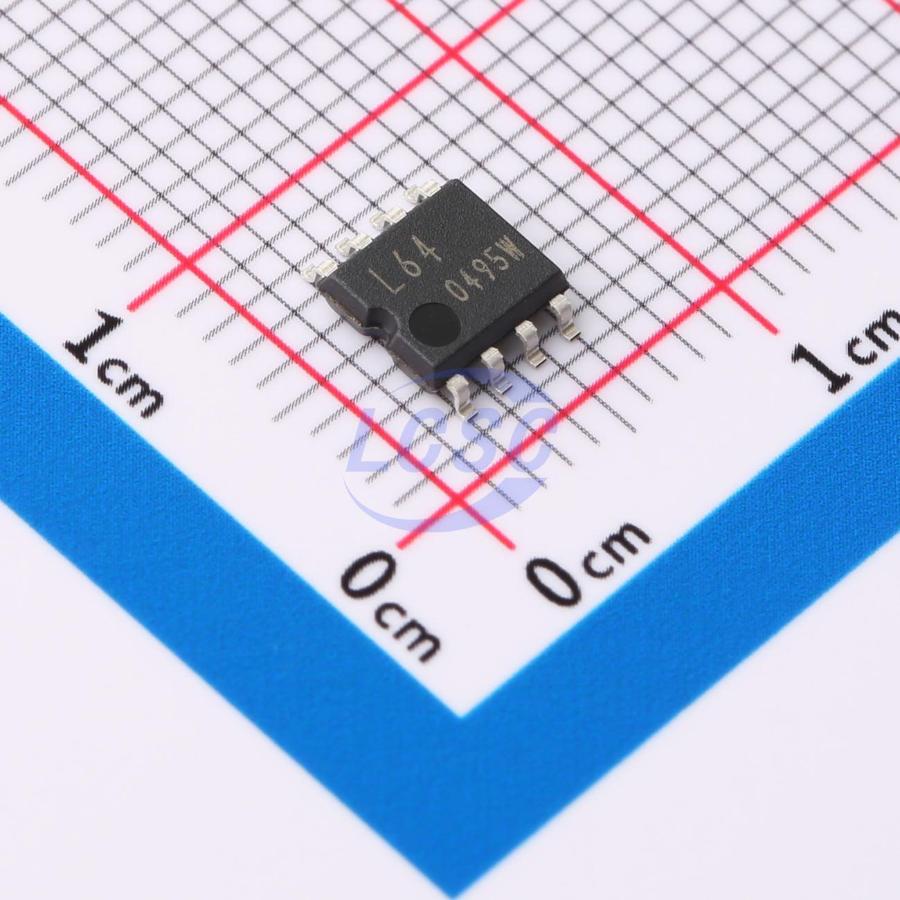

BR24L64F-WE2
64Kbit 100kHz I2C SOIC-8-175mil Memory RoHS
SOIC-8-175milROHS3 CompliantActive
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,604 in stock
#C5603018
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.27 | ₹116.27 |
| 10+ | ₹92.62 | ₹926.20 |
| 30+ | ₹80.69 | ₹2,420.70 |
| 100+ | ₹68.98 | ₹6,898.00 |
| 500+ | ₹62.04 | ₹31,020.00 |
| 1,000+ | ₹58.34 | ₹58,340.00 |
1 × ₹116.27
₹116.27
excl. GST
₹137.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24L64F-WE2
₹116.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 100kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.168 g
Overview
The BR24Lxxx-W Series are serial EEPROMs with I²C bus interface.
Key features
- Fully compliant with the world standard I²C bus.
- All control via two ports: SCL and SDA.
- Other devices besides EEPROM can be connected to the same port, saving microcontroller ports.
- 1.8V to 5.5V single power supply (1.7V to 5.5V for BR24L02-W, BR24L16-W, BR24L32-W), ideal for battery-powered applications.
- Page write mode for factory initial value programming.
- Highly reliable connections via gold pads and gold wire bonding.
- Auto-erase and auto-end functions during data write operations.
- Low current consumption:
- Write operation (5V): 1.2mA (typ., 1.5mA for BR24L32-W, BR24L64-W).
- Read operation (5V): 0.2mA (typ.).
- Standby operation (5V): 0.1μA (typ.).
- Write error prevention:
- Write protection function.
- Write error prevention at low voltage.
- Data rewrite endurance: 1,000,000 cycles.
- Data retention: 40 years.
- Built-in noise filter on SCL/SDA pins.
- All addresses set to FFh at factory shipment.
