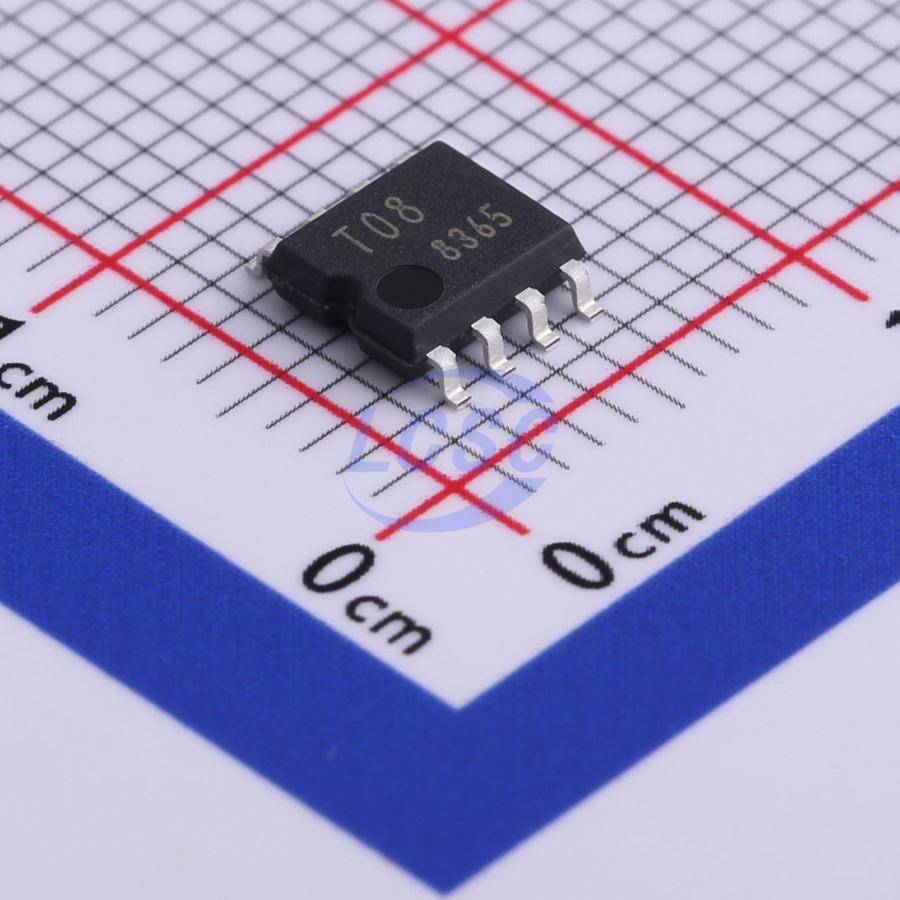

ROHM
BR24T08F-WE2
8Kbit 400kHz I2C SOIC-8-175mil Memory RoHS
SOIC-8-175milROHS CompliantActive
Serial EEPROM I2C BUS Interface
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C600858
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.89 | ₹119.45 |
| 50+ | ₹19.29 | ₹964.50 |
| 150+ | ₹17.32 | ₹2,598.00 |
| 500+ | ₹14.86 | ₹7,430.00 |
| 2,500+ | ₹12.20 | ₹30,500.00 |
| 5,000+ | ₹11.54 | ₹57,700.00 |
5 × ₹23.89
₹119.45
excl. GST
₹140.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24T08F-WE2
₹119.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.212 g
Overview
BR24T08-W is a serial EEPROM of I²C BUS Interface Method
Key features
- Completely conforming to the world standard I2C BUS
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5V Single Power Source Operation, most suitable for battery use
- 1.6V to 5.5V wide limit of operating voltage, possible FAST MODE 400kHz operation
- Page Write Mode useful for initial value write at factory shipment
- Self-timed Programming Cycle
- Low current Consumption
- Prevention of Write Mistake, Write (Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL/ SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BR24G08F-3GTE2#C509764ROHM · SOP-8-4.4mm | ROHM | SOP-8-4.4mm | 26,380 | ₹22.21 · 26,380 in stock | View |
| BR24S08F-WE2#C600772ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | On request | Price on request | Quote | |
 | BR24L08F-WE2#C2062154ROHM · SOIC-8-175mil | ROHM | SOIC-8-175mil | On request | Price on request | Quote |
