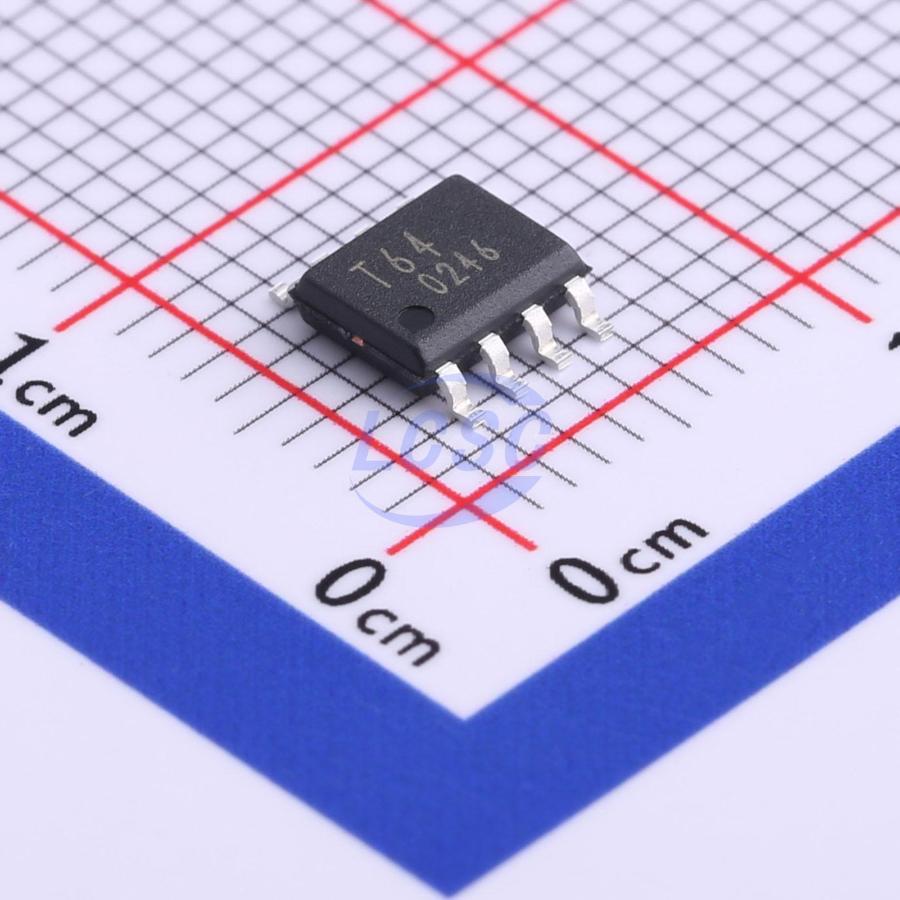

ROHM
BR24T64FJ-WE2
64Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
I2C BUS EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,615 in stock
#C694089
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.25 | ₹201.25 |
| 50+ | ₹31.55 | ₹1,577.50 |
| 150+ | ₹27.82 | ₹4,173.00 |
| 500+ | ₹21.62 | ₹10,810.00 |
| 2,500+ | ₹19.55 | ₹48,875.00 |
| 5,000+ | ₹18.30 | ₹91,500.00 |
5 × ₹40.25
₹201.25
excl. GST
₹237.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24T64FJ-WE2
₹201.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.215 g
Overview
BR24T64-W is a serial EEPROM of I²C BUS Interface Method
Key features
- Completely conforming to the world standard I²C BUS.
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5V Single Power Source Operation most suitable for battery use
- 1.6V to 5.5V wide limit of operation voltage, possible FAST MODE 400KHz operation
- Page Write Mode useful for initial value write at factory shipment
- Self-timed Programming Cycle
- Low Current Consumption
- Prevention of Write Mistake Write (Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL / SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT24LC64#C73710HOLTEK · SOP-8 | HOLTEK | SOP-8 | 7,300 | ₹21.76 · 7,300 in stock | View |
 | 24AA64-I/SN#C1349006MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 35 | ₹181.54 · 35 in stock | View |
 | 24AA64/SN#C1351220MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 2 | ₹104.07 · 2 in stock | View |
 | 24AA64T-I/SN#C45707MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 564 | ₹77.62 · 564 in stock | View |
 | 24AA64F-I/SN#C615135MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4 | ₹161.32 · 4 in stock | View |
