ROHM

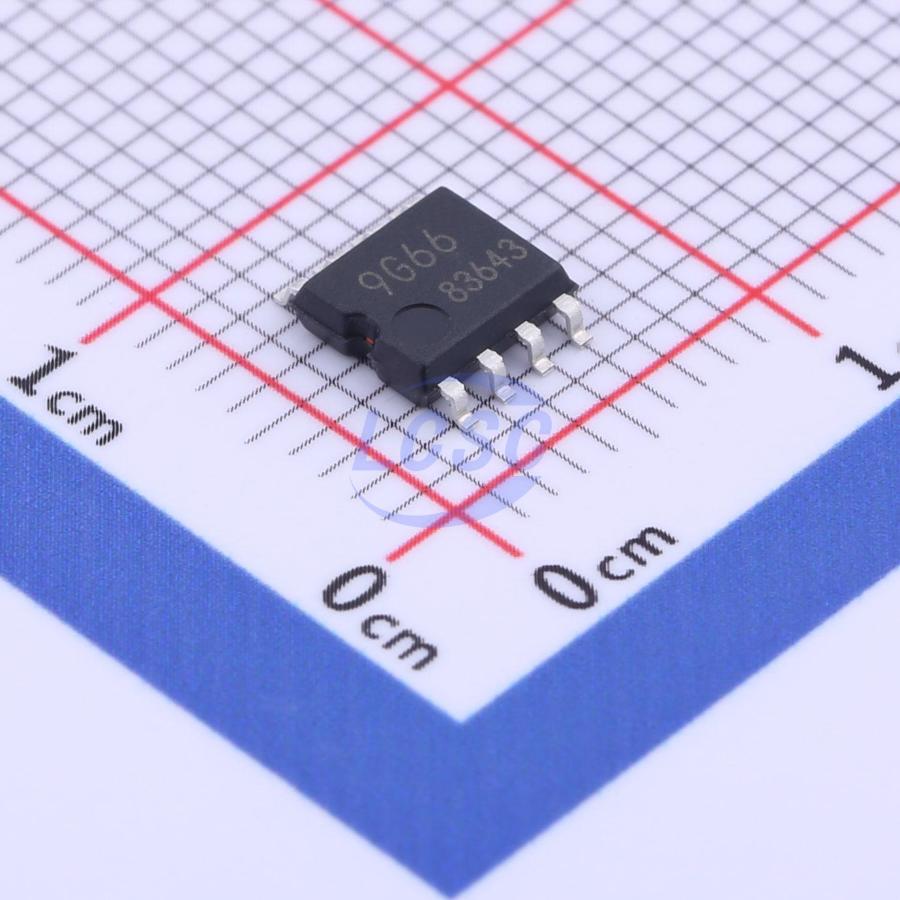

BR93G66F-3GTE2
4Kbit 3MHz SPI SOIC-8-175mil Memory RoHS
SOIC-8-175milROHS CompliantActive
Serial EEPROM 3-Line Interface
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,610 in stock
#C880948
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.50 | ₹152.50 |
| 50+ | ₹26.80 | ₹1,340.00 |
| 150+ | ₹25.22 | ₹3,783.00 |
| 500+ | ₹20.06 | ₹10,030.00 |
| 2,500+ | ₹19.17 | ₹47,925.00 |
| 5,000+ | ₹18.64 | ₹93,200.00 |
5 × ₹30.50
₹152.50
excl. GST
₹179.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR93G66F-3GTE2
₹152.50 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 3MHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
BR93G66-3A is serial EEPROM of Serial 3-Line Interface Method. They are 16bit organization and CS PIN is the first PIN in their PIN configuration.
Key features
- 3-Line Communications of chip select, serial clock, serial data input / output (the case where input and output are shared)
- Operations available at High Speed 3MHz clock (4.5 V to 5.5 V)
- High Speed Write available (Write Time 5ms Max)
- Same package and pin configuration from 1Kbit to 16Kbit
- 1.7V to 5.5V Single Power Source Operation
- Address Auto Increment Function at read Operation
- Write Error Prevention Function »Write Prohibition at Power On »Write Prohibition by Command Code »Write Error Prevention function at Low Voltage
- Self-timed Programming Cycle
- Program Condition Display by READY / BUSY
- Compact Package SOP8 SOP-J8 SSOP-B8 TSSOP-B8 MSOP8 TSSOP-B8J VSON008X2030
- More than 40 years data retention
- More than 1million write cycles
- Initial delivery state all addresses FFFFh
