BLUE ROCKETDatasheet (PDF)

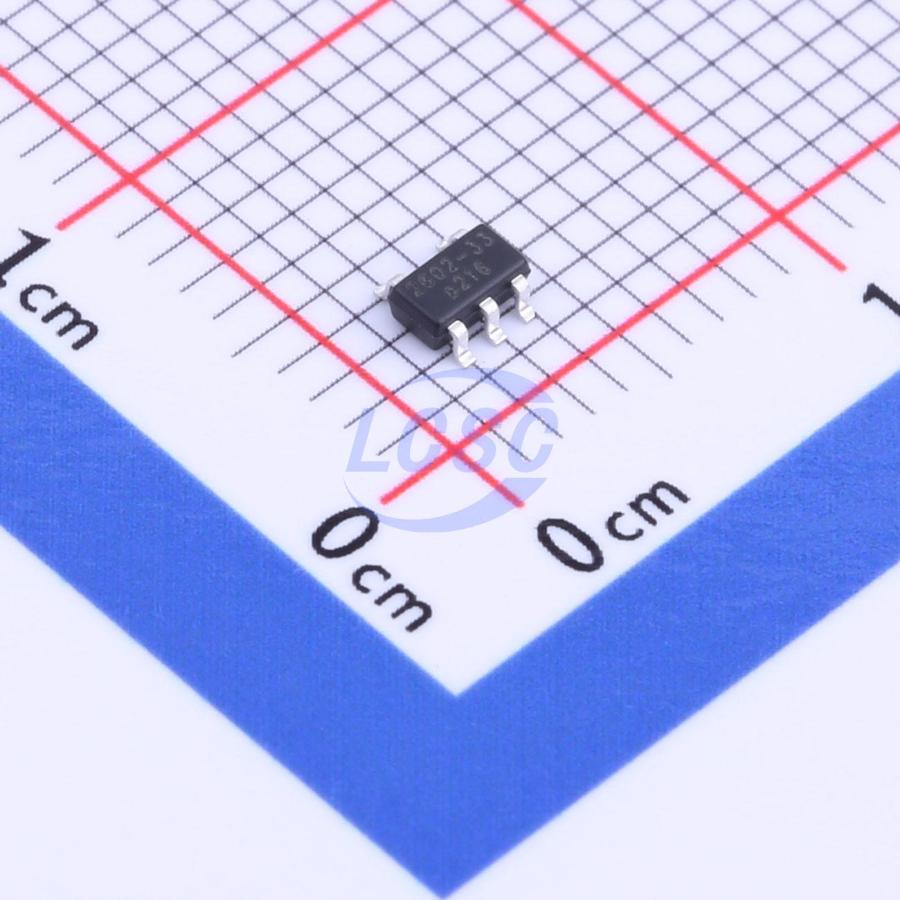

BRCO2602ME-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
Ultra-low power consumption low dropout linear regulator
- Manufacturer
- BLUE ROCKET
- Manufacturer part #
- BRCO2602ME-3.3
- Store part #
- C914054
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C914054
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.72 | ₹87.20 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹5.98 | ₹1,794.00 |
| 3,000+ | ₹5.29 | ₹15,870.00 |
| 6,000+ | ₹4.75 | ₹28,500.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹8.72
₹87.20
excl. GST
₹102.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BRCO2602ME-3.3
₹87.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Enable control;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
BRCO2602ME is an ultra-low power, low-dropout linear regulator fabricated in CMOS process.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- Ultra-low quiescent current: 0.8μA
- Output current: 300mA
- Low dropout: 110mV@100mA (VOUT = 3.3V)
- Active-high enable
- Excellent line transient and output load transient response
- Input voltage range: 1.8V ~ 8.0V
- Output voltage range: 1.2V ~ 5.0V
- High accuracy: ±2%
- High PSRR: 50dB@1kHz
- Built-in current limiting and short-circuit protection
- SOT23-5 package, halogen-free product
