InfineonDatasheet (PDF)

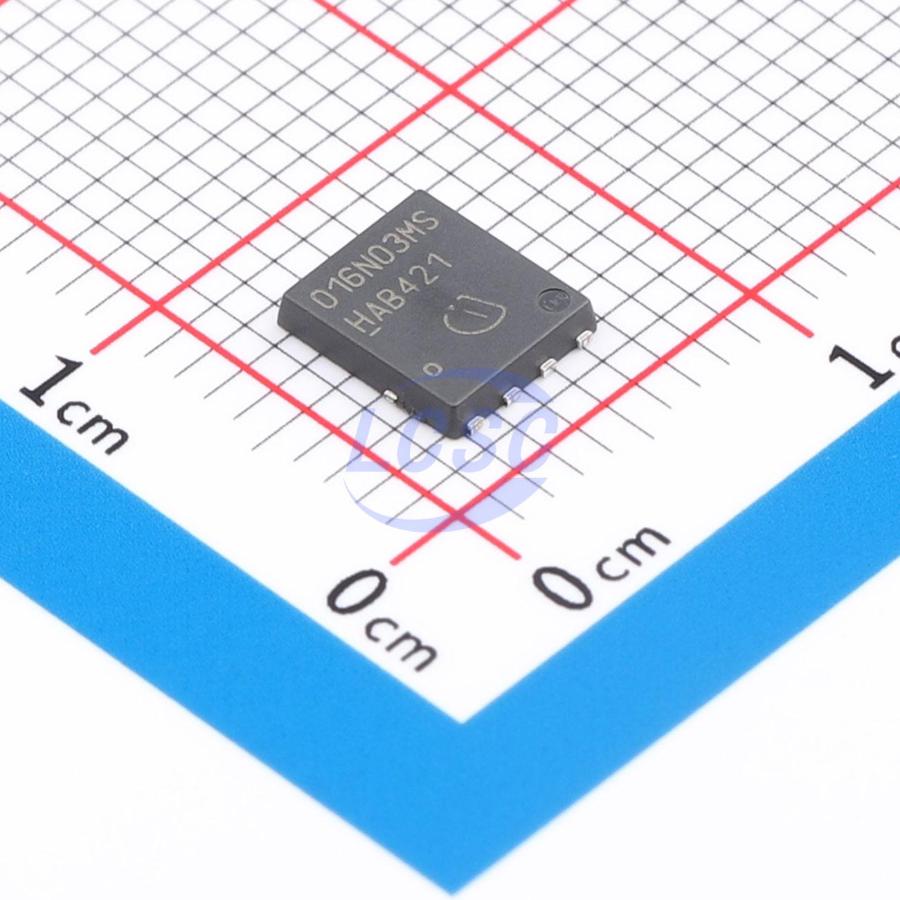

BSC016N03MS G
30V 100A 125W 1.6mΩ@10V 1 N-channel TDSON-8-EP(5x6) Single FETs, MOSFETs
TDSON-8-EP(5x6)RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- BSC016N03MS G
- Store part #
- C534293
- Package / case
- TDSON-8-EP(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C534293
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.35 | ₹90.35 |
| 10+ | ₹88.18 | ₹881.80 |
| 30+ | ₹86.64 | ₹2,599.20 |
| 100+ | ₹85.12 | ₹8,512.00 |
1 × ₹90.35
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC016N03MS G
₹90.35 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 13nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 1.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 84nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Key features
- Optimized for 5V driver applications (notebooks, VGA, point-of-load power supplies)
- Low switching figure of merit (FOMsw) for high-frequency switching power supplies
- 100% avalanche tested
- N-channel
- Ultra-low on-resistance RDS(on) at VGS = 4.5V
- Excellent gate charge × RDS(on) figure of merit (FOM)
- JEDEC-compliant for target applications
- Outstanding thermal resistance performance
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MU4008Y#C47361188MIRACLE POWER · PDFN-8L(5x6) | MIRACLE POWER | PDFN-8L(5x6) | 1,465 | ₹47.16 · 1,465 in stock | View |
 | CMSA006N12#C5337958Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 92 | ₹148.47 · 92 in stock | View |
 | FDMS8018#C464161onsemi · Power-56-8 | onsemi | Power-56-8 | 49 | ₹197.95 · 49 in stock | View |
 | HD504N015SG#C52766422R+O · PDFN-8(5x6) | R+O | PDFN-8(5x6) | 5,432 | ₹99.09 · 5,432 in stock | View |
 | SP60N01BGHNK#C49257272Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 5,180 | ₹108.33 · 5,180 in stock | View |
