InfineonDatasheet (PDF)

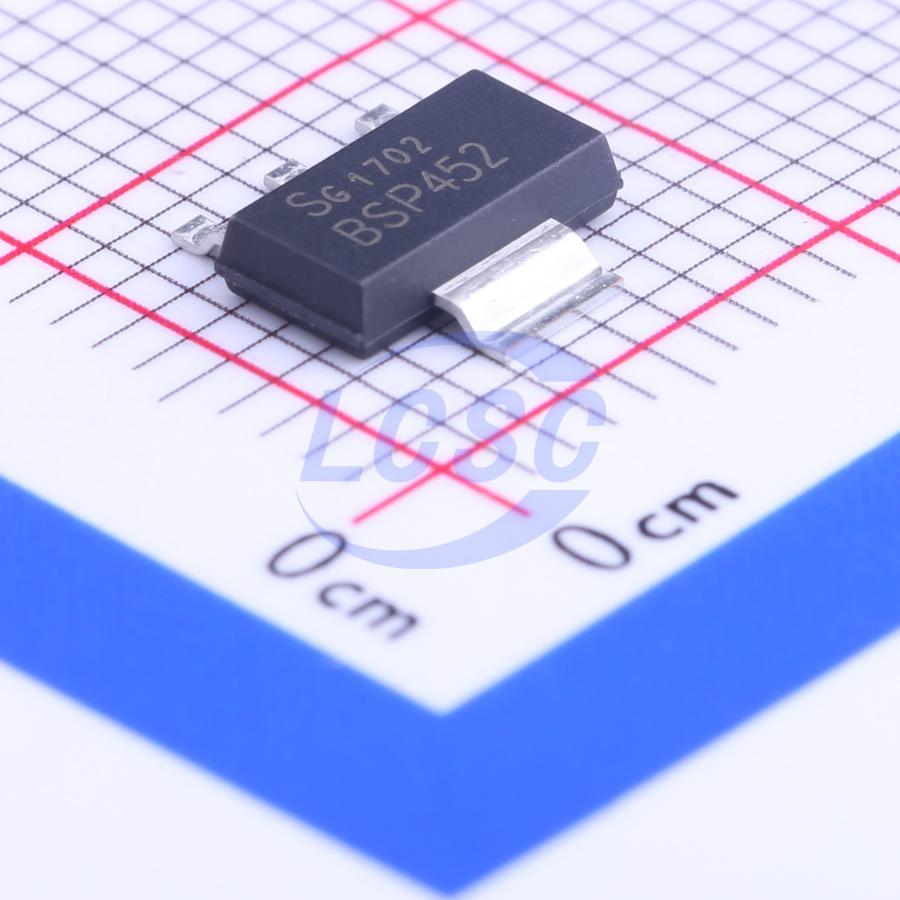

BSP452
1 500mA Active High High Side Switch SOT-223 Power Distribution Switches, Load Drivers RoHS
SOT-223ROHS3 CompliantActive
Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BSP452
- Store part #
- C58074
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,193 in stock
#C58074
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹202.47 | ₹202.47 |
| 10+ | ₹167.19 | ₹1,671.90 |
| 30+ | ₹147.82 | ₹4,434.60 |
| 100+ | ₹126.10 | ₹12,610.00 |
| 500+ | ₹116.41 | ₹58,205.00 |
| 1,000+ | ₹111.89 | ₹1,11,890.00 |
1 × ₹202.47
₹202.47
excl. GST
₹238.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BSP452
₹202.47 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Load dump protection;Reverse voltage protection;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 500mA
- Control Input Logic
- Active High
- RDS(on)
- 160mΩ
- Operating Voltage
- 5V~34V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.194 g
Overview
N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Fully protected by embedded protection functions.
Applications
- μC compatible power switch for 12 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays and discrete circuits
Key features
- High-side switch
- Short-circuit protection
- Input protection
- Overtemperature protection with hysteresis
- Overload protection
- Overvoltage protection
- Switching inductive load
- Clamp of negative output voltage with inductive loads
- Undervoltage shutdown
- Maximum current internally limited
- Electrostatic discharge (ESD) protection
- Reverse battery protection
- AEC qualified (RoHS compliant)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ITS4200SMEN#C2653779Infineon · SOT-223-4 | Infineon | SOT-223-4 | 8 | ₹233.46 · 8 in stock | View |
 | ISP452HUMA1#C3232295Infineon · SOT-223-4 | Infineon | SOT-223-4 | 91 | ₹333.07 · 91 in stock | View |
