InfineonDatasheet (PDF)

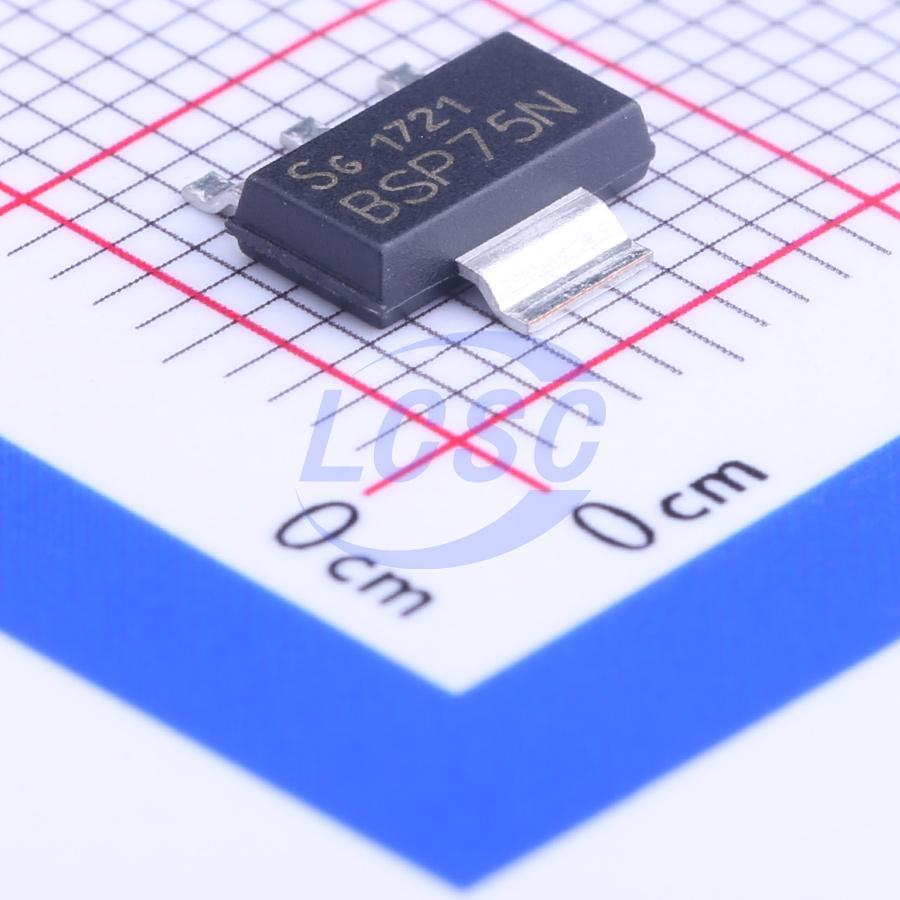

BSP75N
1 700mA Active High Low Side Switch SOT-223-4 Power Distribution Switches, Load Drivers
SOT-223-4RoHSActive
Smart Low side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BSP75N
- Store part #
- C114056
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,979 in stock
#C114056
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹322.32 | ₹322.32 |
| 10+ | ₹289.80 | ₹2,898.00 |
| 30+ | ₹269.38 | ₹8,081.40 |
| 100+ | ₹248.42 | ₹24,842.00 |
| 500+ | ₹239.03 | ₹1,19,515.00 |
| 1,000+ | ₹234.87 | ₹2,34,870.00 |
1 × ₹322.32
₹322.32
excl. GST
₹380.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
BSP75N
₹322.32 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Load dump protection
- number of channels
- 1
- Maximum Continuous Current
- 700mA
- Control Input Logic
- Active High
- RDS(on)
- 550mΩ
- Operating Voltage
- 0V~10V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
- N channel vertical power FET in Smart Power Technology. Fully protected by embedded protection functions. - The BSP 75N is a monolithic power switch in Smart Power Technology (SPT) with a logic level input, an open drain DMOS output stage and integrated protection functions. It is designed for all kind of resistive and inductive loads (relays, solenoid) in automotive and industrial applications.
Applications
- All kinds of resistive, inductive and capacitive loads in switching applications
- μc compatible power switch for 12V and 24 V DC applications and for 42 Volt Powernet
- Replaces electromechanical relays and discrete circuits
Key features
- Logic Level Input Input protection (ESD)
- Thermal shutdown with auto restart
- Overload protection
- Short circuit protection
- Overvoltage protection
- Current limitation
- Green Product (RoHS compliant)
- AEC Stress Test Qualification
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS3134N#C534767Infineon · SOT-223-4 | Infineon | SOT-223-4 | On request | Price on request | Quote |
