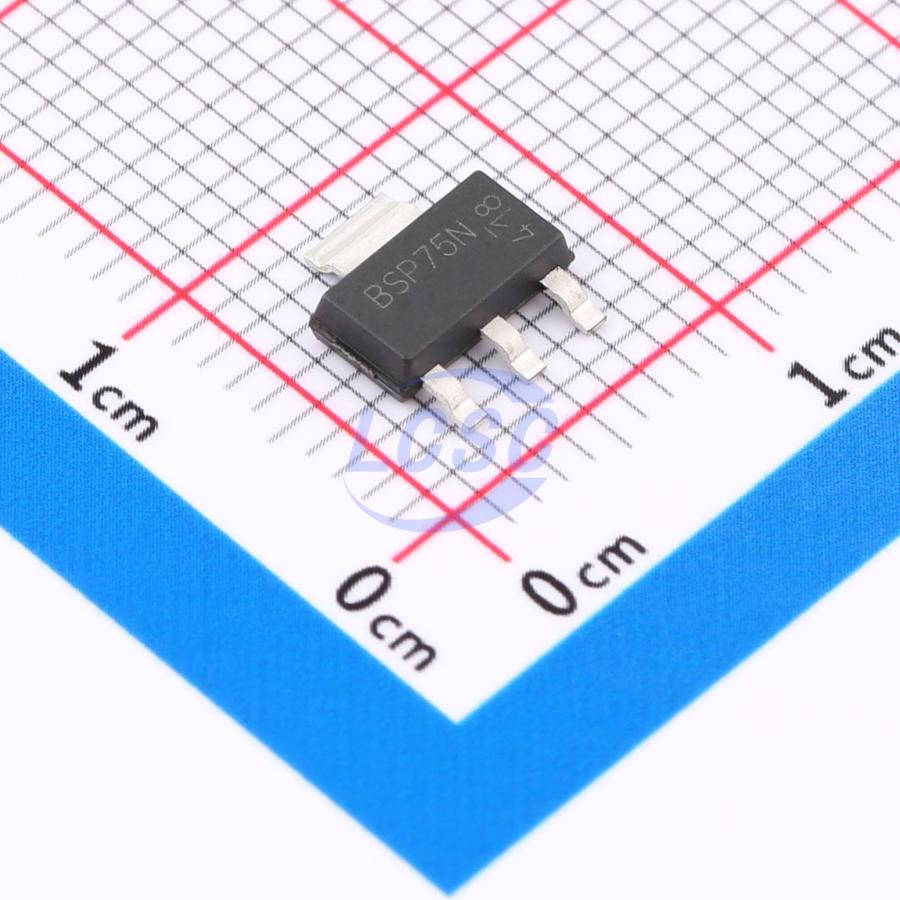

BSP75NTA
1 Active High 1.3A Low Side Switch SOT-223-4 Power Distribution Switches, Load Drivers RoHS
SOT-223-4ROHS3 CompliantActive
60V self-protected low-side Intellifet MOSFET switch
- Manufacturer
- DIODES
- Manufacturer part #
- BSP75NTA
- Store part #
- C172450
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,332 in stock
#C172450
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.86 | ₹186.86 |
| 10+ | ₹154.28 | ₹1,542.80 |
| 30+ | ₹136.24 | ₹4,087.20 |
| 100+ | ₹116.03 | ₹11,603.00 |
| 500+ | ₹100.18 | ₹50,090.00 |
| 1,000+ | ₹96.26 | ₹96,260.00 |
1 × ₹186.86
₹186.86
excl. GST
₹220.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BSP75NTA
₹186.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Load dump protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.3A
- Operating Voltage
- 60V
- RDS(on)
- 385mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
The BSP75N is a self- protected, low- side IntelliFET MOSFET. It features monolithic overtemperature, overcurrent, overvoltage (active clamp), and ESD protected logic- level functionality. It is intended as a general- purpose switch.
Applications
- Especially suited for loads with high inrush current, such as lamps and motors
- All types of resistive, inductive, and capacitive loads in switching applications
- μC compatible power switches for 12V and 24V DC applications
- Replaces electromechanical relays and discrete circuits
- Linear mode capabilities—current- limiting protection circuitry is designed to deactivate at low Vps to not compromise the load current during normal operation. Maximum DC operating current is therefore determined by thermal capability of the package/board combination rather than by protection circuitry, which does not compromise the product's ability to self- protect at low Vps.
Key features
- Short- Circuit Protection with Auto Restart
- Overvoltage Protection (Active Clamp)
- Thermal Shutdown with Auto Restart
- Overcurrent Protection
- Input Protection (ESD)
- Load- Dump Protection (Actively Protects Load)
- Logic- Level Input
- High Continuous Current Rating
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An automotive- compliant part is available under separate datasheet (BSP75NQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMS6004DGTA#C211386DIODES · SOT-223-3 | DIODES | SOT-223-3 | 3 | ₹110.72 · 3 in stock | View |
| ZXMS6004DGQ-13#C2157978DIODES · SOT-223-3 | DIODES | SOT-223-3 | 1 | ₹220.89 · 1 in stock | View | |
 | NCV8406ASTT3G#C459816onsemi · SOT-223 | onsemi | SOT-223 | 1,780 | ₹111.01 · 1,780 in stock | View |
 | ZXMS6005SGTA#C174042DIODES · SOT-223 | DIODES | SOT-223 | 168 | ₹161.25 · 168 in stock | View |
 | ZXMS6005DGTA#C174045DIODES · SOT-223-3 | DIODES | SOT-223-3 | 1,767 | ₹166.51 · 1,767 in stock | View |
