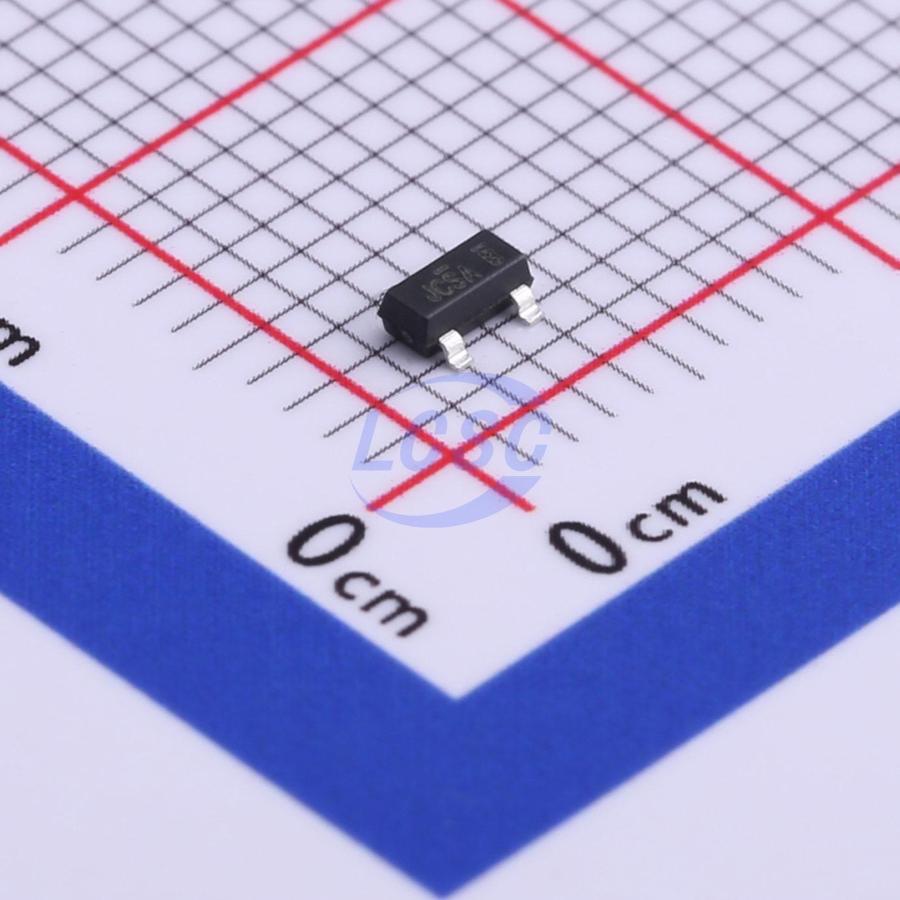

BSS123
N-Channel 100V 0.17A 0.36W Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 100V 0.17A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- BSS123
- Store part #
- C513249
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,180 in stock
#C513249
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.48 | ₹104.80 |
| 100+ | ₹8.44 | ₹844.00 |
| 300+ | ₹7.44 | ₹2,232.00 |
| 3,000+ | ₹6.67 | ₹20,010.00 |
| 6,000+ | ₹6.06 | ₹36,360.00 |
| 9,000+ | ₹5.76 | ₹51,840.00 |
10 × ₹10.48
₹104.80
excl. GST
₹123.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS123
₹104.80 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 7pF
- Ciss-Input Capacitance
- 73pF
- Pd - Power Dissipation
- 360mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 170mA
- Reverse Transfer Capacitance (Crss)
- 3.4pF
- RDS(on)
- 10Ω@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.8nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
These N-Channel enhancement mode field effect transistors are produced using proprietary, high cell density, DMOS technology. These products have been designed to minimize onstate resistance while provide rugged, reliable, and fast switching performance. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Applications
- small servo motor control
- power MOSFET gate drivers
- other switching applications
Key features
- 0.17 A, 100 V. RDS(ON) = 6 Ω @ VGS = 10 V, RDS(ON) = 10 Ω @ VGS = 4.5 V
- High density cell design for extremely low RDS(ON)
- Rugged and Reliable
- Compact industry standard SOT - 23 surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS123#C358379BLUE ROCKET · SOT-23 | BLUE ROCKET | SOT-23 | 20 | ₹3.65 · 20 in stock | View |
 | BSS123(UMW)#C5693003UMW · SOT-23 | UMW | SOT-23 | 2,240 | ₹2.83 · 2,240 in stock | View |
 | BSS123#C6069530YFW · SOT-23 | YFW | SOT-23 | 3,000 | ₹3.74 · 3,000 in stock | View |
 | BSS123#C54426039luJing · SOT-23 | luJing | SOT-23 | 1,880 | ₹3.11 · 1,880 in stock | View |
| BSS123#C23661579HT(Shenzhen Jinyu Semicon) · SOT-23 | HT(Shenzhen Jinyu Semicon) | SOT-23 | 2,980 | ₹5.83 · 2,980 in stock | View | |
