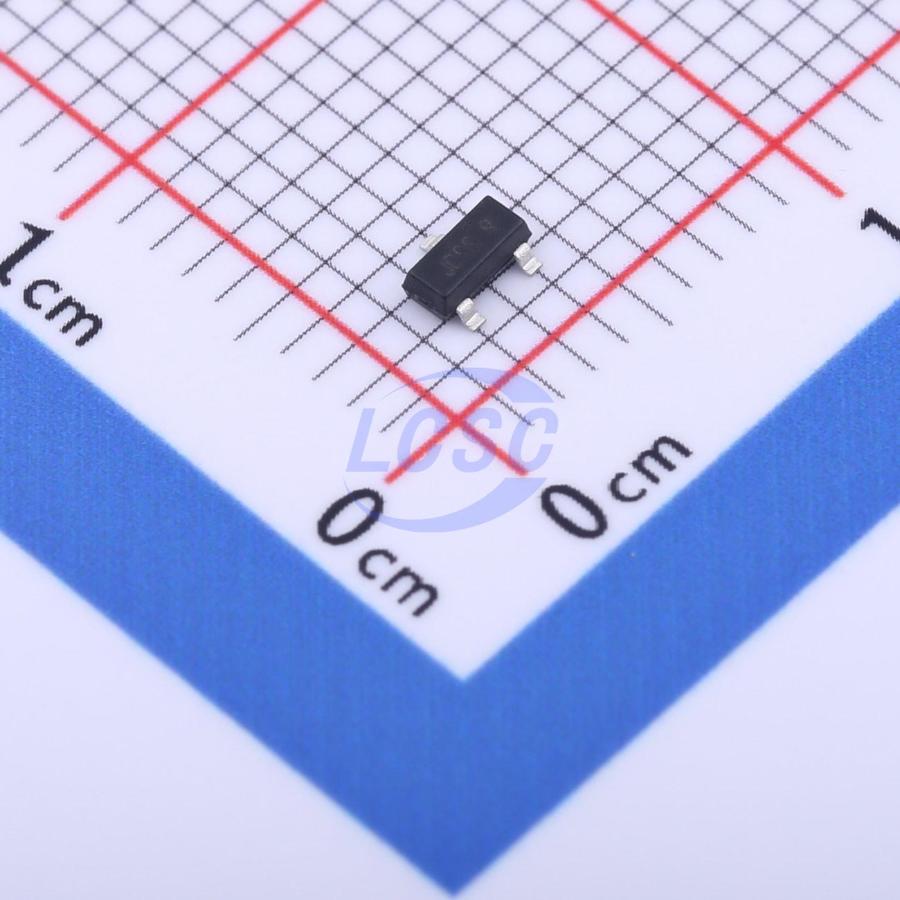

BSS138
N-Channel 50V 0.22A 0.36W Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 50V 0.22A SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- BSS138
- Store part #
- C52895
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57,790 in stock
#C52895
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.57 | ₹95.70 |
| 100+ | ₹7.95 | ₹795.00 |
| 300+ | ₹7.14 | ₹2,142.00 |
| 3,000+ | ₹4.21 | ₹12,630.00 |
| 6,000+ | ₹3.72 | ₹22,320.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹9.57
₹95.70
excl. GST
₹112.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138
₹95.70 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 13pF
- Ciss-Input Capacitance
- 27pF
- Pd - Power Dissipation
- 360mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 50V
- Current - Continuous Drain(Id)
- 220mA
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 3.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.4nC@25V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
These N-Channel enhancement mode field effect transistors are produced using proprietary, high cell density, DMOS technology. These products have been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance. These products are particularly suited for low voltage, low current applications such as small servo motor control, power MOSFET gate drivers, and other switching applications.
Applications
- small servo motor control
- power MOSFET gate drivers
- other switching applications
Key features
- 0.22 A, 50 V. RDS(ON) = 3.5 Ω @ VGS = 10 V; RDS(ON) = 6.0 Ω @ VGS = 4.5 V
- High density cell design for extremely low RDS(ON)
- Rugged and Reliable
- Compact industry standard SOT - 23 surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS138#C53058666luJing · SOT-23 | luJing | SOT-23 | 2,460 | ₹1.71 · 2,460 in stock | View |
 | BSS138LT1G-CN#C42419969ChipNobo · SOT-23 | ChipNobo | SOT-23 | 1,000 | ₹2.70 · 1,000 in stock | View |
 | BSS138#C5250986TWGMC · SOT-23 | TWGMC | SOT-23 | 6,350 | ₹2.55 · 6,350 in stock | View |
 | BSS138#C22458952ALJ · SOT-23 | ALJ | SOT-23 | 89,850 | ₹2.57 · 89,850 in stock | View |
 | BSS138#C2874697JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,50,250 | ₹2.12 · 1,50,250 in stock | View |
