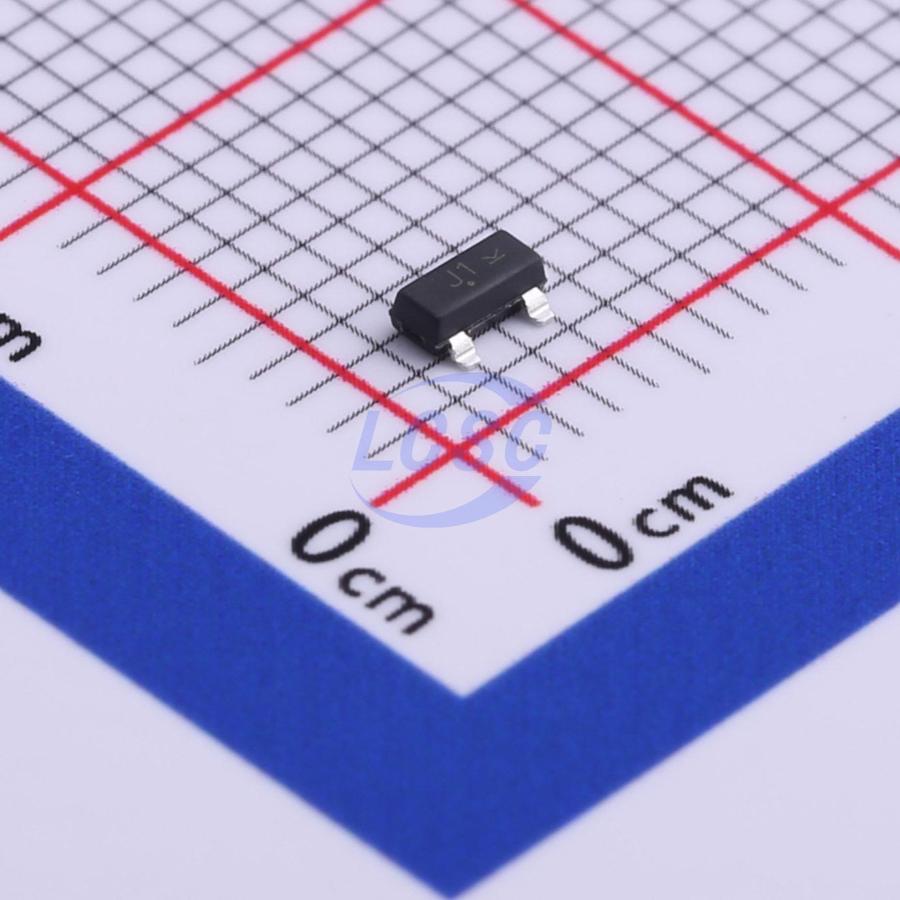

BSS138LT1G
N-Channel 50V 200mA 225mW Surface Mount SOT-23
PopularSOT-23ROHS3 CompliantActive
MOSFET N-CH 50V 200mA SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- BSS138LT1G
- Store part #
- C82045
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,45,780 in stock
#C82045
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.83 | ₹58.30 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.06 | ₹1,218.00 |
| 3,000+ | ₹3.35 | ₹10,050.00 |
| 6,000+ | ₹3.16 | ₹18,960.00 |
| 9,000+ | ₹3.06 | ₹27,540.00 |
10 × ₹5.83
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138LT1G
₹58.30 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 12pF
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 225mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 50V
- Current - Continuous Drain(Id)
- 200mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 5.6Ω@2.75V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- DC−DC converters
- power management in portable and battery−powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones
Key features
- Low Threshold Voltage (VGS(th): 0.5 V−1.5 V) Makes it Ideal for Low Voltage Applications
- Miniature SOT−23 Surface Mount Package Saves Board Space
- BVSS Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LBSS138LT1G#C8490LRC · SOT-23 | LRC | SOT-23 | 1,15,550 | ₹2.65 · 1,15,550 in stock | View |
 | BSS138#C2874697JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,54,250 | ₹2.12 · 1,54,250 in stock | View |
 | BSS138#C3040446FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 5,900 | ₹2.21 · 5,900 in stock | View |
| VB162K#C416209VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹4.06 · 50 in stock | View | |
 | BSS138L#C5224264ElecSuper · SOT-23 | ElecSuper | SOT-23 | 9,460 | ₹1.93 · 9,460 in stock | View |
Questions about BSS138LT1G
Does the BSS138LT1G Meet Industry Reliability and Compliance Standards?
Yes, the BSS138LT1G is RoHS compliant and offered by onsemi as a reliable semiconductor solution. Certain versions are AEC-Q101 qualified and PPAP capable, making them suitable for automotive and other applications requiring enhanced quality and reliability standards.
Is the BSS138LT1G Compatible With Other N-Channel MOSFETs?
The BSS138LT1G can serve as a replacement for other low-power N-channel MOSFETs with similar specifications. When evaluating equivalent parts, compare datasheet parameters such as VDS rating, RDS(on), gate threshold voltage, and package type to ensure compatibility with your application.
What Applications Is the BSS138LT1G Commonly Used For?
The BSS138LT1G MOSFET is widely used in DC-DC converters, power management circuits, battery-powered devices, logic level shifting, and embedded systems. It is particularly suitable for low-voltage applications requiring efficient switching performance and minimal board space.
What Are the Key Specifications and Features of the BSS138LT1G MOSFET?
The BSS138LT1G is an N-channel MOSFET from onsemi featuring a 50V drain-to-source voltage, 200mA continuous drain current, and a compact SOT-23 package. Its low gate threshold voltage and small footprint make it a popular choice for low-voltage switching and power management applications.
