VBsemi ElecDatasheet (PDF)

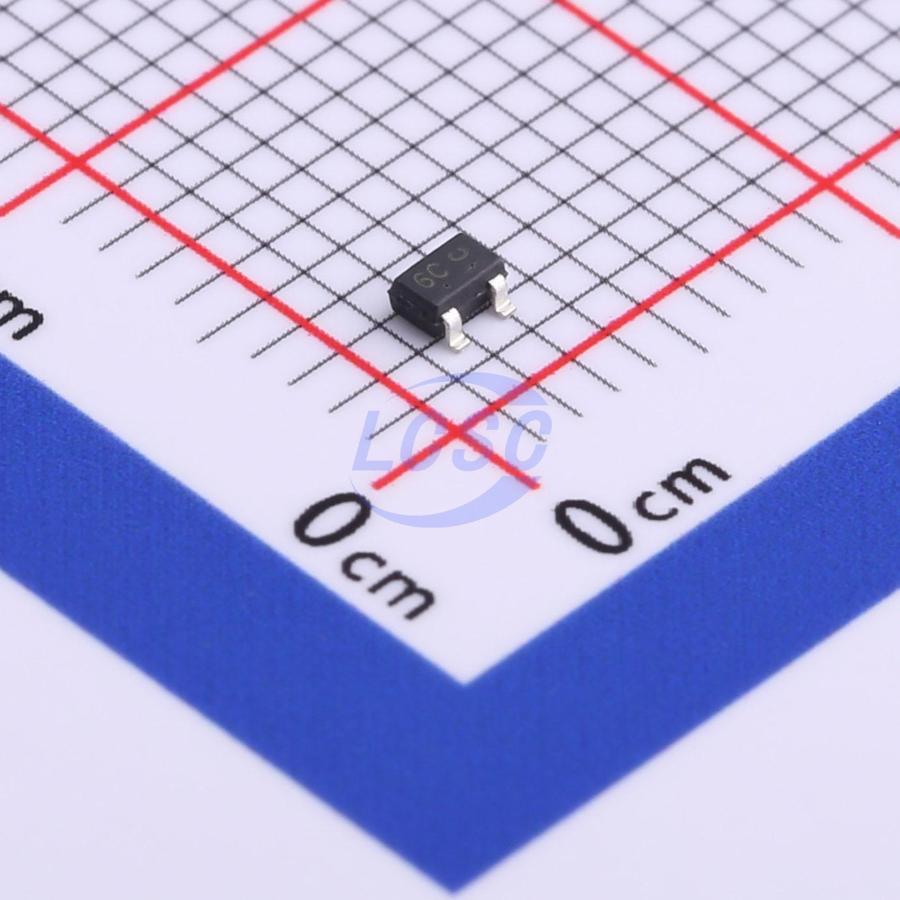

BSS138W-VB
N-Channel 60V 0.3A Surface Mount SC-70-3
SC-70-3RoHSActive
MOSFET N-CH 60V 0.3A SC-70-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSS138W-VB
- Store part #
- C878878
- Package / case
- SC-70-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C878878
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.99 | ₹59.95 |
| 50+ | ₹9.58 | ₹479.00 |
| 150+ | ₹8.36 | ₹1,254.00 |
| 500+ | ₹7.46 | ₹3,730.00 |
| 3,000+ | ₹6.73 | ₹20,190.00 |
| 6,000+ | ₹6.36 | ₹38,160.00 |
5 × ₹11.99
₹59.95
excl. GST
₹70.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BSS138W-VB
₹59.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 6pF
- Current - Continuous Drain(Id)
- 300mA
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 400pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Halogen-free per IEC 61249-2-21
- Low on-resistance: 2 Ω
- Low threshold: 2 V (typical)
- Low input capacitance: 25 pF
- Fast switching speed: 25 ns
- Low input and output leakage current
- Trench power MOSFET
- RoHS compliant per directive 2002/95/EC
- Low offset voltage
- Low-voltage operation
- Easy drive without buffer
- High-speed circuits
- Low error voltage
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBK162K#C416330VBsemi Elec · SC-70-3 | VBsemi Elec | SC-70-3 | 220 | ₹11.87 · 220 in stock | View |
 | NX138BKWX-VB#C45662539VBsemi Elec · SC-70-3 | VBsemi Elec | SC-70-3 | 20 | ₹12.21 · 20 in stock | View |
 | BSS138W-7-F-VB#C19190209VBsemi Elec · SC-70-3 | VBsemi Elec | SC-70-3 | 70 | ₹12.13 · 70 in stock | View |
 | SSM3K15FU-VB#C5179557VBsemi Elec · SOT-323 | VBsemi Elec | SOT-323 | 50 | ₹13.51 · 50 in stock | View |
 | 2SK3018T106-VB#C55251751VBsemi Elec · SC-70-3 | VBsemi Elec | SC-70-3 | 5 | ₹6.89 · 5 in stock | View |
