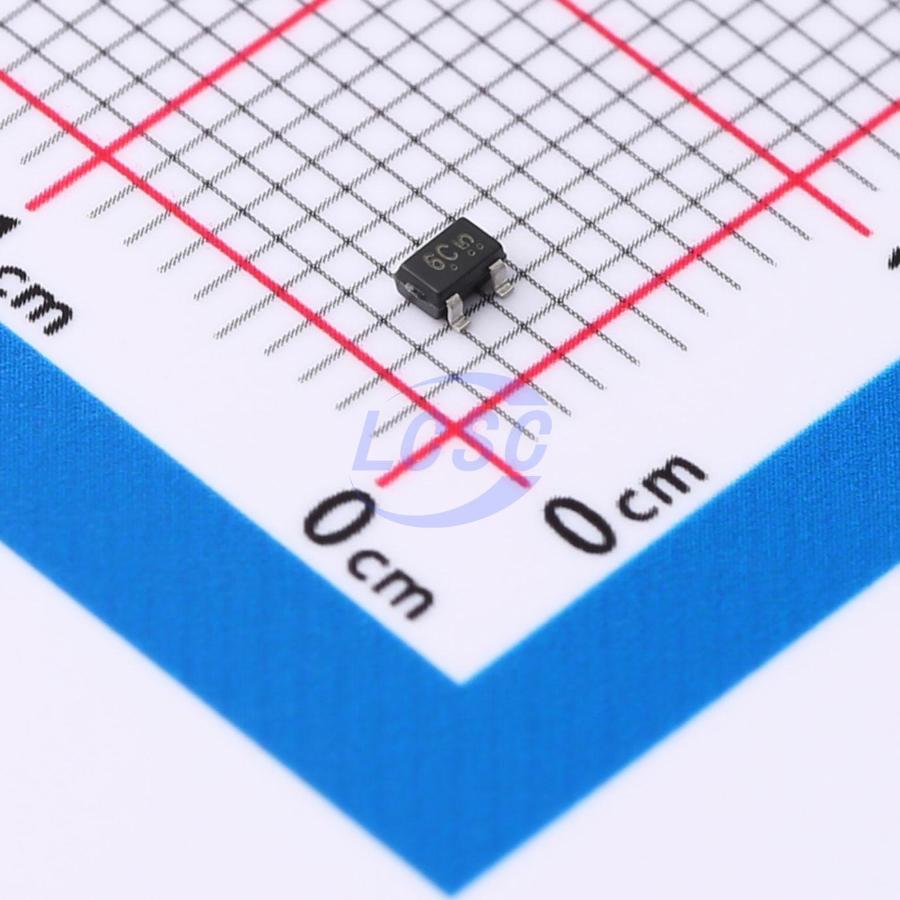

NX138BKWX-VB
N-Channel 60V 300mA 0.35W Surface Mount SC-70-3
SC-70-3RoHSActive
MOSFET N-CH 60V 300mA SC-70-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NX138BKWX-VB
- Store part #
- C45662539
- Package / case
- SC-70-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C45662539
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.21 | ₹61.05 |
| 50+ | ₹9.74 | ₹487.00 |
| 150+ | ₹8.49 | ₹1,273.50 |
| 500+ | ₹7.57 | ₹3,785.00 |
| 3,000+ | ₹6.83 | ₹20,490.00 |
| 6,000+ | ₹6.46 | ₹38,760.00 |
5 × ₹12.21
₹61.05
excl. GST
₹72.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NX138BKWX-VB
₹61.05 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 300mA
- Output Capacitance(Coss)
- 6pF
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 600pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- Halogen-free per IEC 61249-2-21
- Low on-resistance: 2 Ω
- Low threshold: 2 V (typical)
- Low input capacitance: 25 pF
- Fast switching speed: 25 ns
- Low input and output leakage current
- TrenchFET power MOSFET
- RoHS compliant per directive 2002/95/EC
