InfineonDatasheet (PDF)

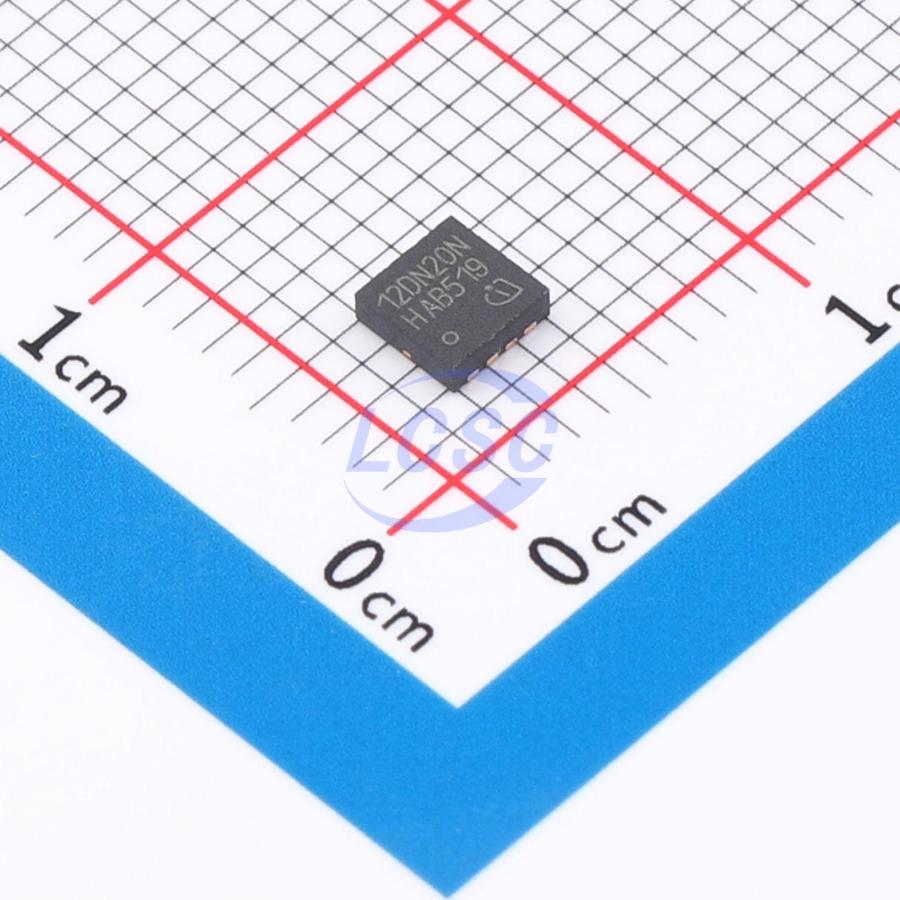

BSZ12DN20NS3 G
N-Channel 200V 11.3A 50W Surface Mount TSDSON-8FL
TSDSON-8FLROHS3 CompliantActive
MOSFET N-CH 200V 11.3A TSDSON-8FL
- Manufacturer
- Infineon
- Manufacturer part #
- BSZ12DN20NS3 G
- Store part #
- C534706
- Package / case
- TSDSON-8FL
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C534706
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.44 | ₹187.44 |
| 10+ | ₹154.13 | ₹1,541.30 |
| 30+ | ₹135.85 | ₹4,075.50 |
| 100+ | ₹115.17 | ₹11,517.00 |
| 500+ | ₹106.03 | ₹53,015.00 |
| 1,000+ | ₹101.88 | ₹1,01,880.00 |
1 × ₹187.44
₹187.44
excl. GST
₹221.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSZ12DN20NS3 G
₹187.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 39pF
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 50W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 11.3A
- Reverse Transfer Capacitance (Crss)
- 5.1pF
- RDS(on)
- 125mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
Key features
- Optimized for DC-DC conversion
- N-channel, normally-on
- Excellent gate charge x RDS(on) product (figure of merit)
- Low on-resistance RDS(on)
- Operating temperature up to 150°C
- Lead-free lead plating; RoHS compliant
- Qualified to JEDEC standards for target applications
- Halogen-free per IEC61249-2-21
