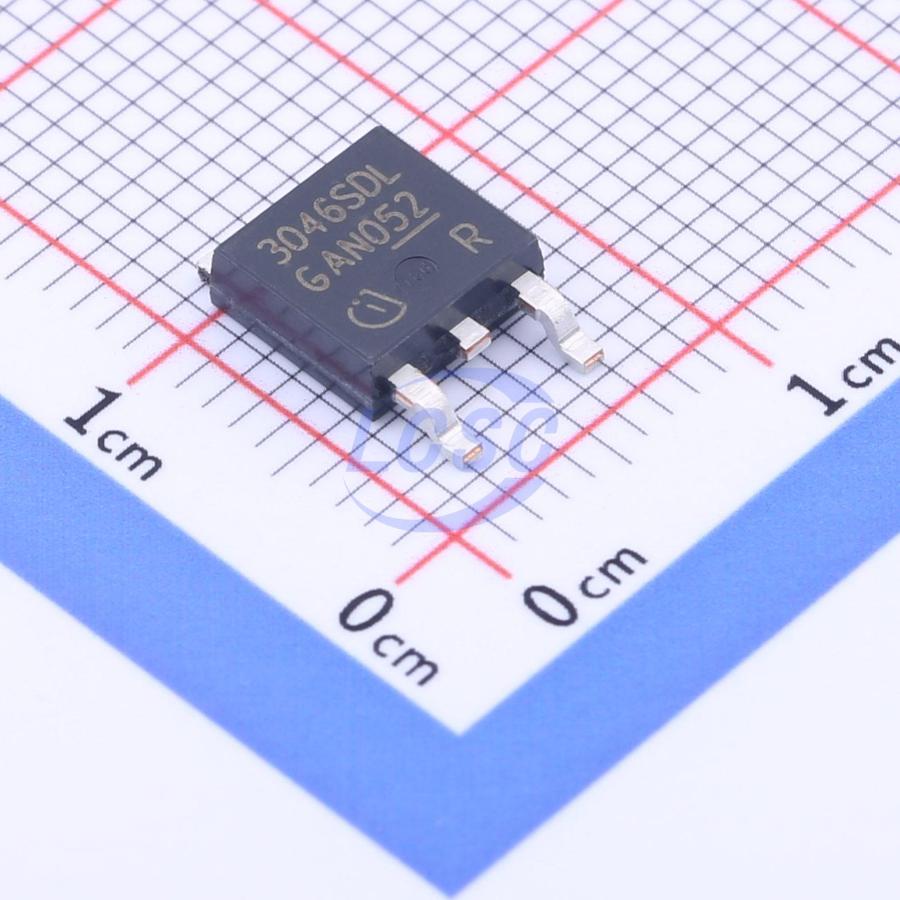

BTS3046SDL

1 3.6A Active High Low Side Switch TO-252-3 Power Distribution Switches, Load Drivers RoHS

TO-252-3ROHS3 CompliantActive

Smart Low Side Power Switch

Manufacturer: Infineon
Manufacturer part #: BTS3046SDL
Store part #: C534754
Package / case: TO-252-3
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,238 in stock

#C534754

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
1+	₹197.10	₹197.10
10+	₹162.98	₹1,629.80
30+	₹144.07	₹4,322.10
100+	₹123.00	₹12,300.00
500+	₹113.43	₹56,715.00
1,000+	₹109.31	₹1,09,310.00

Quantity (min 1)

1 × ₹197.10

₹197.10

excl. GST

₹232.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

BTS3046SDL

₹197.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Latch protection
number of channels: 1
Maximum Continuous Current: 3.6A
Control Input Logic: Active High
RDS(on): 46mΩ
Operating Voltage: 2.5V~10V
Type: Low Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.44 g

Overview

The BTS3046SDL is a single channel low-side MOSFET power switch in PG-TO252-3-11 package providing embedded protective functions. The device is monolithically integrated with a N channel vertical power FET and embedded protection functions. The BTS3046SDL is automotive qualified and can be used in 12V and 24V automotive and industrial applications. The device is able to switch all kind of resistive, inductive and capacitive loads, limited by the single pulse avalanche energy (EAS) and maximum current capabilities. The BTS3046SDL offers ESD protection on the IN Pin which refers to the Source pin (Ground). The overtemperature protection prevents the device from overheating due to overload and/or bad cooling conditions. The temperature information is given by a temperature sensor in the power MOSFET. During thermal shutdown the device sinks an increased input current at the IN pin to feedback the fault condition. The BTS3046SDL has a thermal-latch function. The device will turn off and stay off, even after the measured temperature has dropped below the thermal hysteresis. After cooling down the device can be switched on again by toggling the IN pin. The over voltage protection gets activated during load dump or inductive turn off conditions. The power MOSFET is limiting the drain-source voltage, if it rises above the VDS(clamp).

Applications

Designed for inductive and lamp loads in automotive and industrial applications. 12V and 24V applications
All types of resistive, inductive and capacitive loads
Replaces discrete circuits
