InfineonDatasheet (PDF)

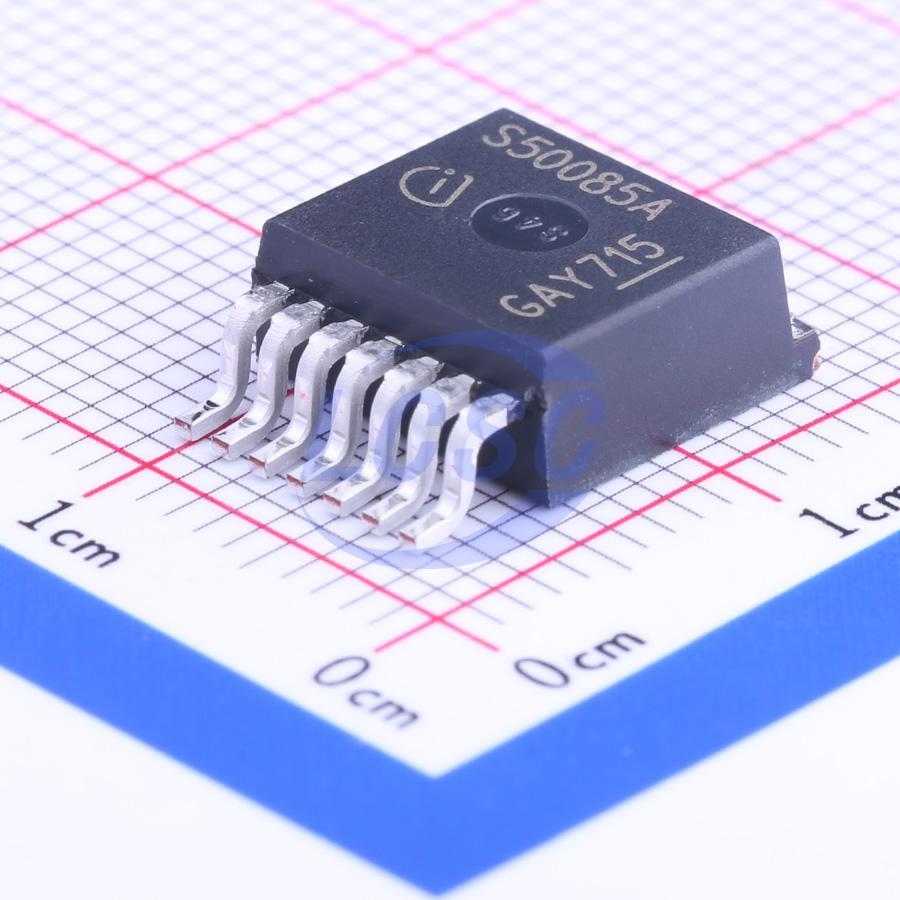

BTS50085-1TMA
1 Active Low 90A High Side Switch TO-220-7 Power Distribution Switches, Load Drivers
TO-220-7RoHSActive
Smart Highside High Current Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS50085-1TMA
- Store part #
- C82655
- Package / case
- TO-220-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,000 in stock
#C82655
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,466.89 | ₹1,466.89 |
| 10+ | ₹1,277.29 | ₹12,772.90 |
| 30+ | ₹1,048.12 | ₹31,443.60 |
| 100+ | ₹951.26 | ₹95,126.00 |
1 × ₹1,466.89
₹1,466.89
excl. GST
₹1,730.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BTS50085-1TMA
₹1,466.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Load dump protection;Reverse voltage protection;Integrated charge pump;Latch protection
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 90A
- Operating Voltage
- 5V~58V
- RDS(on)
- 9mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.51 g
Overview
N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protection functions.
Applications
- Power switch with current sense diagnostic feedback for up to 48 V DC grounded loads
- Most suitable for loads with high inrush current like lamps and motors; all types of resistive and inductive loads
- Replaces electromechanical relays, fuses and discrete circuits
Key features
- Overload protection
- Current limitation
- Short circuit protection
- Over temperature protection
- Over voltage protection (including load dump)
- Clamp of negative voltage at output
- Fast deenergizing of inductive loads
- Low ohmic inverse current operation
- Diagnostic feedback with load current sense
- Open load detection via current sense
- Loss of Vbb protection
- Electrostatic discharge (ESD) protection
- Green product (RoHS compliant)
- AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS50085-1TMB#C534799Infineon · TO-220-7 | Infineon | TO-220-7 | On request | ₹1,441.05 · 0 in stock | View |
