InfineonDatasheet (PDF)

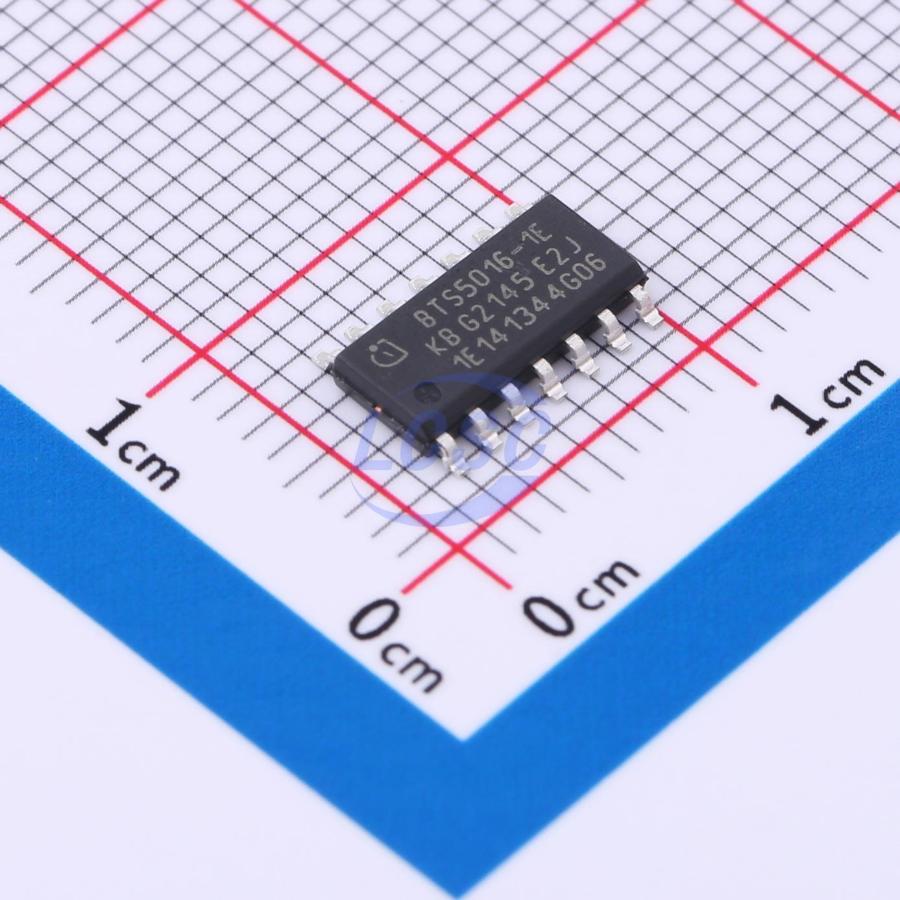

BTS5016-1EKB
1 Active High 8A High Side Switch SOIC-14 Power Distribution Switches, Load Drivers RoHS
SOIC-14ROHS3 CompliantActive
Smart High-Side Power Switch Single Channel
- Manufacturer
- Infineon
- Manufacturer part #
- BTS5016-1EKB
- Store part #
- C534803
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,295 in stock
#C534803
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹325.88 | ₹325.88 |
| 10+ | ₹299.98 | ₹2,999.80 |
| 30+ | ₹283.88 | ₹8,516.40 |
| 100+ | ₹267.11 | ₹26,711.00 |
| 500+ | ₹259.70 | ₹1,29,850.00 |
| 1,000+ | ₹256.44 | ₹2,56,440.00 |
1 × ₹325.88
₹325.88
excl. GST
₹384.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS5016-1EKB
₹325.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Latch protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 8A
- Operating Voltage
- 5V~28V
- RDS(on)
- 16mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
The BTS5016-1EKB is a 16 mΩ single channel Smart High-Side Power Switch, embedded in a PG-DSO-14-47 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to H4, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
Key features
- One channel device
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant)
- AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BTS5010-1EKB#C534800Infineon · DSO-14 | Infineon | DSO-14 | 50 | ₹269.94 · 50 in stock | View |
