InfineonDatasheet (PDF)

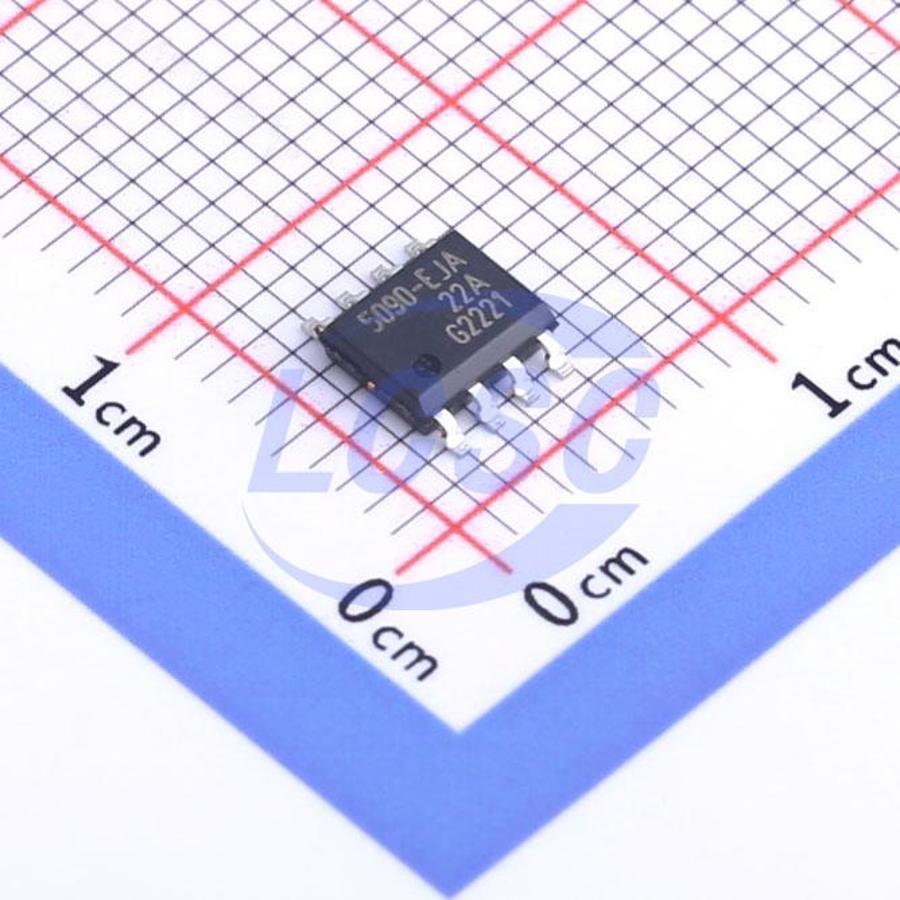

BTS5090-1EJA
1 3A Active High High Side Switch DSO-8-EP Power Distribution Switches, Load Drivers RoHS
DSO-8-EPROHS3 CompliantActive
Smart High-Side Power Switch Single Channel
- Manufacturer
- Infineon
- Manufacturer part #
- BTS5090-1EJA
- Store part #
- C534811
- Package / case
- DSO-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,319 in stock
#C534811
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.62 | ₹166.62 |
| 10+ | ₹136.26 | ₹1,362.60 |
| 30+ | ₹119.55 | ₹3,586.50 |
| 100+ | ₹100.46 | ₹10,046.00 |
| 500+ | ₹92.21 | ₹46,105.00 |
| 1,000+ | ₹88.31 | ₹88,310.00 |
1 × ₹166.62
₹166.62
excl. GST
₹196.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BTS5090-1EJA
₹166.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Latch protection
- number of channels
- 1
- Maximum Continuous Current
- 3A
- Control Input Logic
- Active High
- RDS(on)
- 90mΩ
- Operating Voltage
- 5V~28V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The BTS5090-1EJA is a 90 mΩ single channel Smart High-Side Power Switch, embedded in a PG-DSO-8-43 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 1 * P21W, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
Key features
- One channel device
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant)
- AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMS81045SPQ-13#C5201726DIODES · SO-8-EP | DIODES | SO-8-EP | 67 | ₹121.45 · 67 in stock | View |
 | BTS5030-1EJA#C2990798Infineon · DSO-8-EP | Infineon | DSO-8-EP | On request | ₹263.09 · 0 in stock | View |
| ZXMS81045SP-13#C17247315DIODES · SO-8-EP | DIODES | SO-8-EP | On request | ₹170.18 · 0 in stock | View | |
