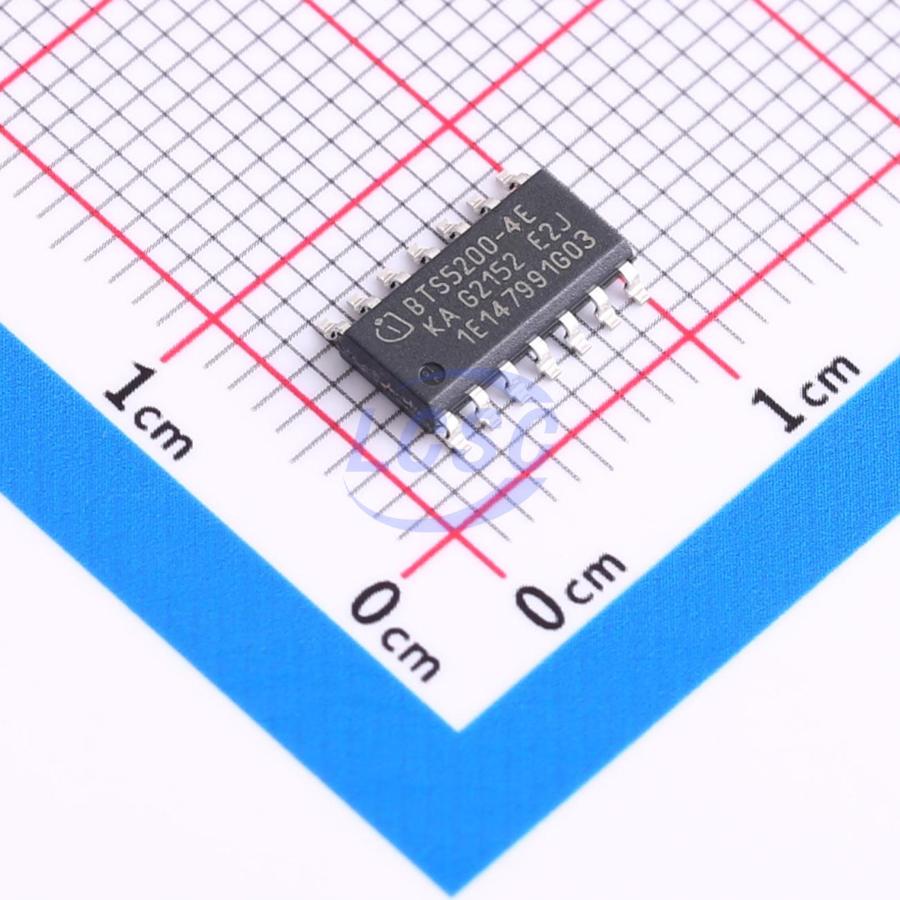

Infineon

BTS5200-4EKA

4 Active High 1A High Side Switch DSO-14-EP Power Distribution Switches, Load Drivers

DSO-14-EPRoHSActive

Smart High-Side Power Switch Quad Channel, 200mΩ

Manufacturer: Infineon
Manufacturer part #: BTS5200-4EKA
Store part #: C534815
Package / case: DSO-14-EP
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,313 in stock

#C534815

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹198.08	₹198.08
10+	₹162.93	₹1,629.30
30+	₹143.62	₹4,308.60
100+	₹121.72	₹12,172.00
500+	₹111.95	₹55,975.00
1,000+	₹107.61	₹1,07,610.00

Quantity (min 1)

1 × ₹198.08

₹198.08

excl. GST

₹233.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

BTS5200-4EKA

₹198.08 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Latch protection
number of channels: 4
Control Input Logic: Active High
Maximum Continuous Current: 1A
Operating Voltage: 5V~28V
RDS(on): 400mΩ
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.192 g

Overview

BTS5200-4EKA is a 200 mΩ quad-channel smart high-side power switch housed in a PG-DSO-14-48-EP exposed-pad package, featuring protection functions and diagnostics. The power transistor consists of an N-channel vertical power MOSFET with charge pump. The device is integrated using Smart6 technology. It is specifically designed to drive bulbs up to R5W and LEDs in harsh automotive environments.
