InfineonDatasheet (PDF)

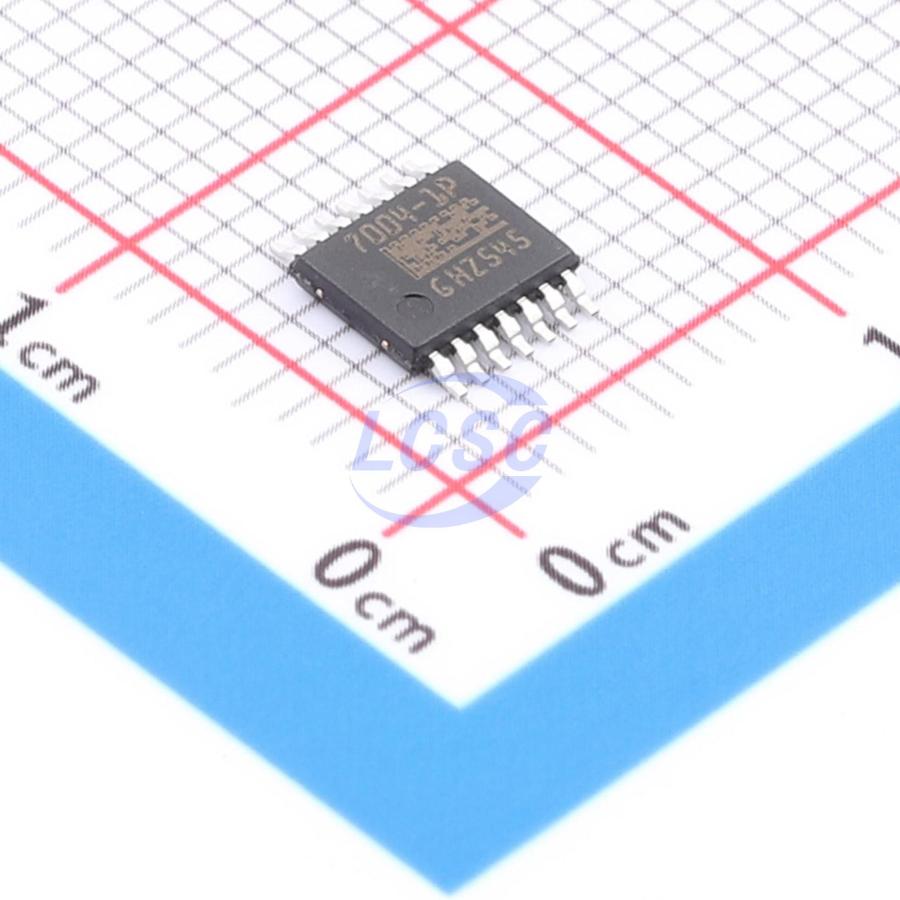

BTS7004-1EPP
High Side Switch 1 Channel 15A TSDSO-14
TSDSO-14ROHS3 CompliantActive
12V Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS7004-1EPP
- Store part #
- C534825
- Package / case
- TSDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,000 in stock
#C534825
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹237.57 | ₹237.57 |
| 10+ | ₹200.22 | ₹2,002.20 |
| 30+ | ₹179.58 | ₹5,387.40 |
| 100+ | ₹156.35 | ₹15,635.00 |
| 500+ | ₹145.93 | ₹72,965.00 |
| 1,000+ | ₹141.15 | ₹1,41,150.00 |
1 × ₹237.57
₹237.57
excl. GST
₹280.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTS7004-1EPP
₹237.57 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Latch protection
- number of channels
- 1
- Maximum Continuous Current
- 15A
- Control Input Logic
- Active High
- Operating Voltage
- 3.1V~28V
- RDS(on)
- 4.4mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.091 g
Overview
Applications
- Suitable for driving 15 A resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Suitable for driving glow plug, heating loads, DC motor and for power distribution
Key features
- High-Side Switch with Diagnosis and Embedded Protection
- Part of PROFET™ '+2 12V Family
- ReverseON for low power dissipation in Reverse Polarity
- Green Product (RoHS compliant)
- Absolute and dynamic temperature limitation with controlled reactivation
- Overcurrent protection (tripping) with Intelligent Latch
- Undervoltage shutdown
- Overvoltage protection with external components
- Proportional load current sense
- Open Load in ON and OFF state
- Short circuit to ground and battery
- Qualified for automotive applications. Product validation according to AEC-Q100 Grade 1.
