InfineonDatasheet (PDF)

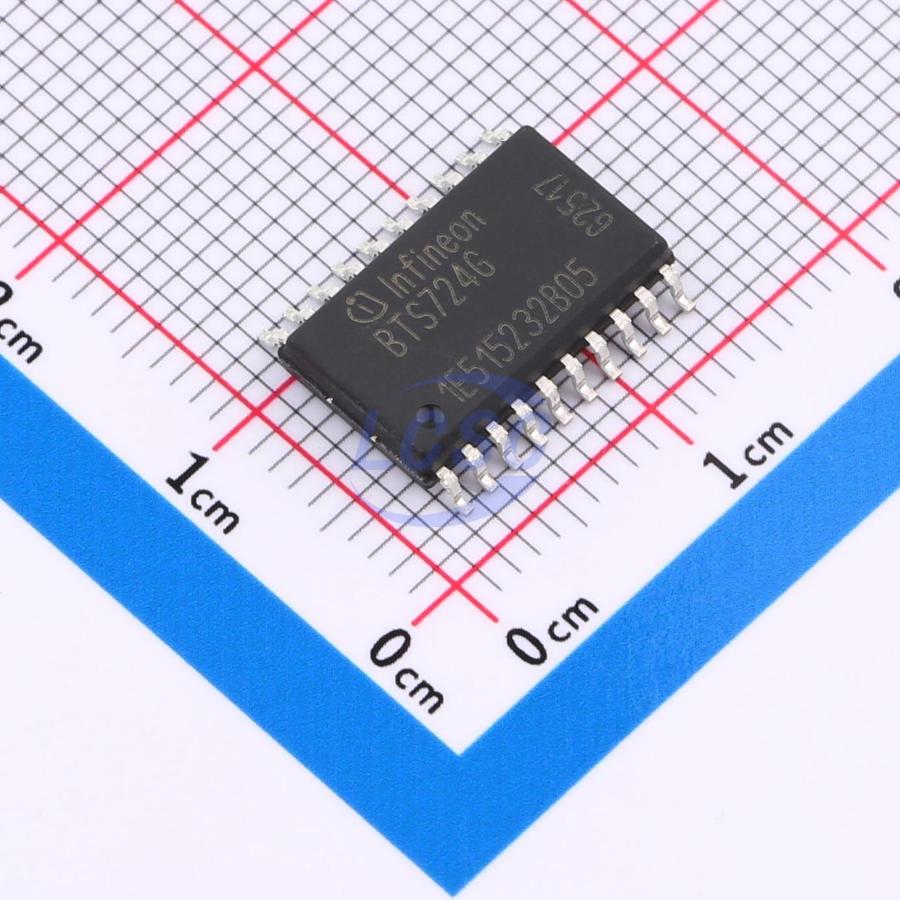

BTS724G
4 7.3A Active High High Side Switch DSO-20-300mil Power Distribution Switches, Load Drivers RoHS
DSO-20-300milROHS3 CompliantActive
Smart High-Side Power Switch
- Manufacturer
- Infineon
- Manufacturer part #
- BTS724G
- Store part #
- C82656
- Package / case
- DSO-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,712 in stock
#C82656
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹348.74 | ₹348.74 |
| 10+ | ₹303.24 | ₹3,032.40 |
| 30+ | ₹271.03 | ₹8,130.90 |
| 100+ | ₹243.38 | ₹24,338.00 |
| 500+ | ₹229.88 | ₹1,14,940.00 |
| 1,000+ | ₹224.22 | ₹2,24,220.00 |
1 × ₹348.74
₹348.74
excl. GST
₹411.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
BTS724G
₹348.74 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection
- number of channels
- 4
- Maximum Continuous Current
- 7.3A
- Control Input Logic
- Active High
- RDS(on)
- 22.5mΩ
- Operating Voltage
- 5.5V~40V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOs technology. Providing embedded protective functions
Applications
- μC compatible high - side power switch with diagnostic feedback for 12V and 24V grounded loads
- All types of resistive, inductive and capacitve loads
- Most suitable for loads with high inrush currents, so as lamps
- Replaces electromechanical relays, fuses and discrete circuits
Key features
- Very low standby current
- CMOS compatible input
- Improved electromagnetic compatibility (EMC)
- Fast demagnetization of inductive loads
- Stable behaviour at undervoltage
- Wide operating voltage range
- Logic ground independent from load ground
- Short circuit protection
- Overload protection
- Current limitation
- Thermal shutdown
- Overvoltage protection (including load dump) with external resistor
- Reverse battery protection with external resistor
- Loss of ground and loss of Vbb protection
- Electrostatic discharge protection (ESD)
- Diagnostic feedback with open drain output
- Open load detection in OFF - state
- Feedback of thermal shutdown in ON - state
