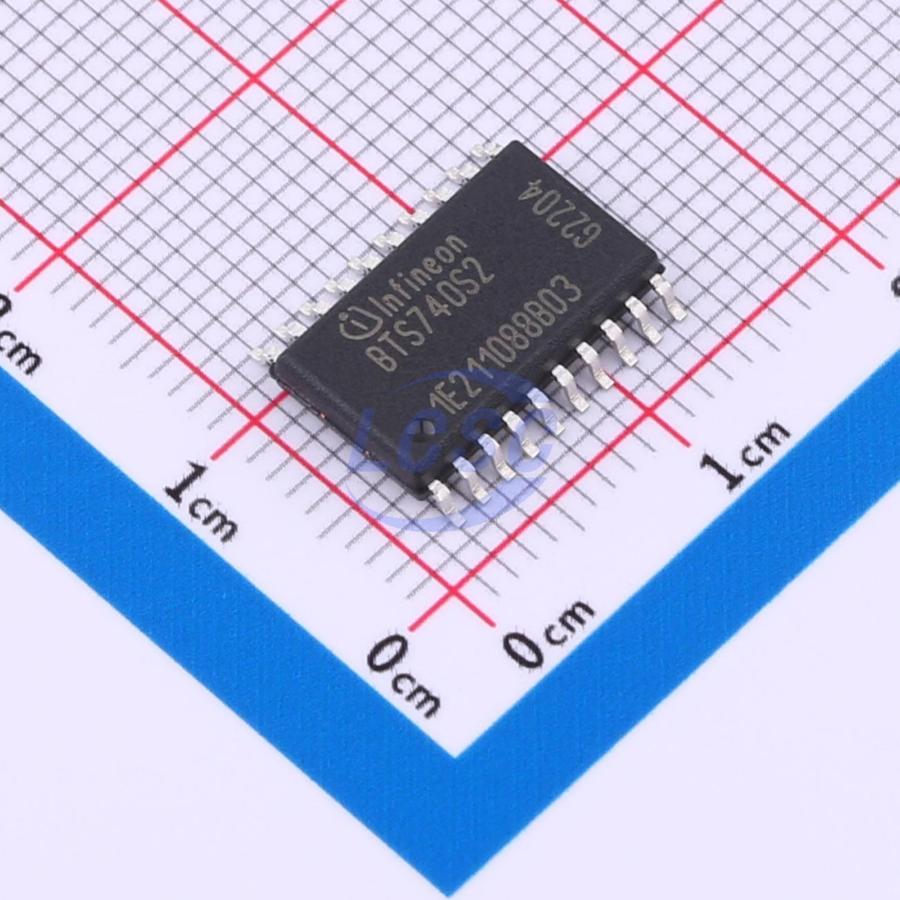

Infineon

BTS740S2XUMA1

2 Active High 4.9A High Side Switch SOIC-20-300mil Power Distribution Switches, Load Drivers RoHS

SOIC-20-300milROHS3 CompliantActive

Manufacturer: Infineon
Manufacturer part #: BTS740S2XUMA1
Store part #: C2680432
Package / case: SOIC-20-300mil
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

978 in stock

#C2680432

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
1+	₹719.04	₹719.04
10+	₹617.35	₹6,173.50
30+	₹556.94	₹16,708.20
100+	₹495.87	₹49,587.00
500+	₹467.85	₹2,33,925.00
1,000+	₹455.02	₹4,55,020.00

Quantity (min 1)

1 × ₹719.04

₹719.04

excl. GST

₹848.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

BTS740S2XUMA1

₹719.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Load dump protection;Integrated charge pump;Reverse voltage protection
number of channels: 2
Control Input Logic: Active High
Maximum Continuous Current: 4.9A
RDS(on): 27mΩ
Operating Voltage: 5V~34V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.189 g

Overview

N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input, diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOs technology. ·Providing embedded protective functions

Applications

μC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads
All types of resistive, inductive and capacitve loads
Most suitable for loads with high inrush currents, so as lamps
Replaces electromechanical relays, fuses and discrete circuits
