InfineonDatasheet (PDF)

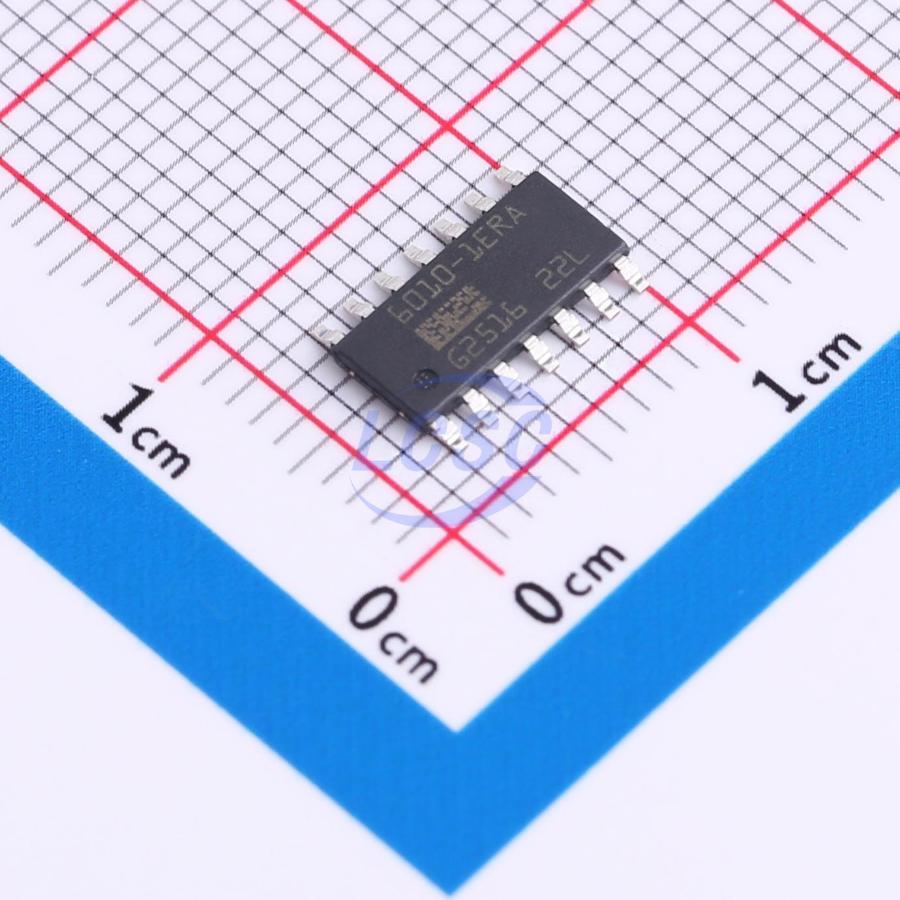

BTT6010-1ERA
1 9A Active High High Side Switch TDSO-14 Power Distribution Switches, Load Drivers
TDSO-14RoHSActive
Smart High-Side Power Switch Single Channel
- Manufacturer
- Infineon
- Manufacturer part #
- BTT6010-1ERA
- Store part #
- C534858
- Package / case
- TDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,261 in stock
#C534858
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹391.12 | ₹391.12 |
| 10+ | ₹332.95 | ₹3,329.50 |
| 30+ | ₹298.44 | ₹8,953.20 |
| 100+ | ₹263.28 | ₹26,328.00 |
| 500+ | ₹247.22 | ₹1,23,610.00 |
| 1,000+ | ₹240.06 | ₹2,40,060.00 |
1 × ₹391.12
₹391.12
excl. GST
₹461.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTT6010-1ERA
₹391.12 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 9A
- Control Input Logic
- Active High
- Operating Voltage
- 5V~36V
- RDS(on)
- 10mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The BTT6010-1ERA is a 10 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 7 x P21W 24V or 2x75W 24V, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
- Suitable for 12 V and 24 V truck and transportation system
Key features
- One channel device
- Very low stand-by current
- 3.3 V and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant) & AEC qualified
