InfineonDatasheet (PDF)

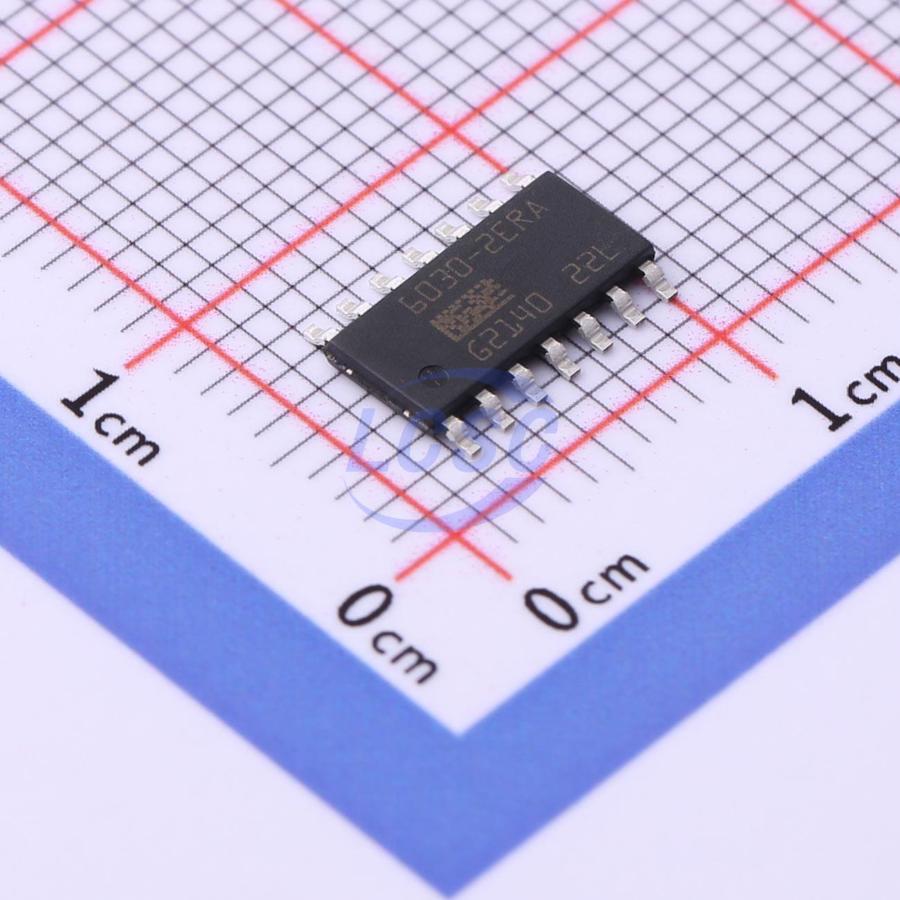

BTT6030-2ERA
2 6A Active High High Side Switch TDSO-14 Power Distribution Switches, Load Drivers
TDSO-14RoHSActive
Smart High-Side Power Switch Single Channel
- Manufacturer
- Infineon
- Manufacturer part #
- BTT6030-2ERA
- Store part #
- C534865
- Package / case
- TDSO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,852 in stock
#C534865
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹396.48 | ₹396.48 |
| 10+ | ₹334.60 | ₹3,346.00 |
| 30+ | ₹295.97 | ₹8,879.10 |
| 100+ | ₹256.28 | ₹25,628.00 |
| 500+ | ₹238.36 | ₹1,19,180.00 |
| 1,000+ | ₹230.47 | ₹2,30,470.00 |
1 × ₹396.48
₹396.48
excl. GST
₹467.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BTT6030-2ERA
₹396.48 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Latch protection;Integrated charge pump
- number of channels
- 2
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- Operating Voltage
- 5V~36V
- RDS(on)
- 32mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.82 g
Overview
The BTT6030-2ERA is a 32 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 3 x P21 W 24 V or 1 x 70 W 24 V, as well as LEDs in the harsh automotive environment.
Applications
- Suitable for resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits
- Most suitable for loads with high inrush current, such as lamps
- Suitable for 12 and 24 V Trucks and Transportation System
Key features
- Two channel device
- Very low stand-by current
- 3.3 and 5 V compatible logic inputs
- Electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility
- Logic ground independent from load ground
- Very low power DMOS leakage current in OFF state
- Green product (RoHS compliant) and AEC qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BTT6030-2ERB#C534866Infineon · TDSO-14 | Infineon | TDSO-14 | 1 | ₹451.12 · 1 in stock | View | |
