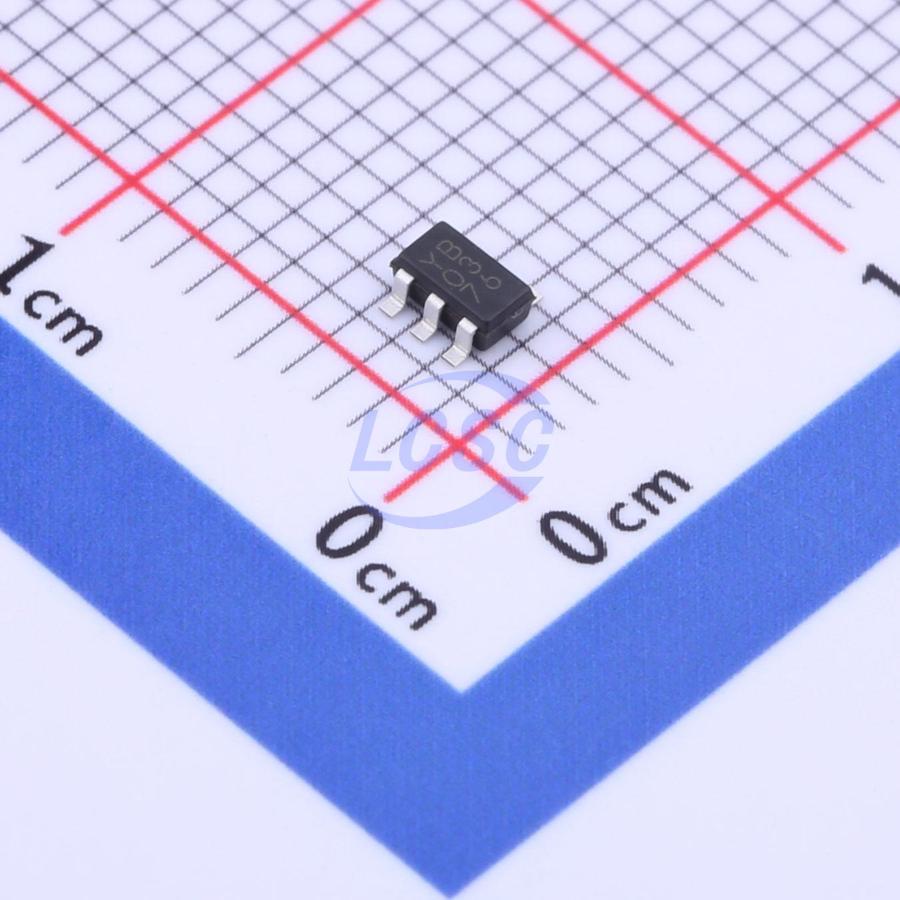

BU4210G-TR
Active Low 900mV~4.8V 1 SSOP-5-1.6mm Supervisors RoHS
CMOS Voltage Detector IC with Adjustable Output Delay
- Manufacturer
- ROHM
- Manufacturer part #
- BU4210G-TR
- Store part #
- C2066584
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,645 in stock
#C2066584
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.15 | ₹120.75 |
| 50+ | ₹18.95 | ₹947.50 |
| 150+ | ₹16.73 | ₹2,509.50 |
| 500+ | ₹13.95 | ₹6,975.00 |
| 3,000+ | ₹12.71 | ₹38,130.00 |
| 6,000+ | ₹11.97 | ₹71,820.00 |
5 × ₹24.15
₹120.75
excl. GST
₹142.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BU4210G-TR
₹120.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 150nA
- Voltage - Supply
- 900mV~4.8V
- ChipType
- Voltage Detector
- Threshold Voltage
- 1V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
BU42xx and BU43xx series are CMOS Voltage Detector ICs with adjustable output delay. It is a high-accuracy, low current consumption Voltage Detector IC series with a built-in delay circuit. The lineup was established with two output types (Nch open drain and CMOS output) and detection voltages range from 0.9V to 4.8V in increments of 0.1V, so that the series may be selected according to application.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- Delay Time Controlled by external Capacitor
- Two output types (Nch open drain and CMOS output)
- Ultra-low current consumption
- Wide operating temperature range
- Very small and low height package
- Package SSOP5 and SOP4 is similar to SOT-23-5 and SC-82 respectively (JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| XC6118N10AMR-G#C2461136TOREX · SOT-25 | TOREX | SOT-25 | 14 | ₹127.06 · 14 in stock | View | |
 | TLV840MADL10DBVR#C3684898TI · SOT-23-5 | TI | SOT-23-5 | 97 | ₹139.01 · 97 in stock | View |
| R3116N101A-TR-FE#C2461543Nisshinbo Micro Devices Inc. · SOT-23-5 | Nisshinbo Micro Devices Inc. | SOT-23-5 | On request | Price on request | Quote | |
| SGM890B-1.0XN5G/TR#C5152444SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | Price on request | Quote | |
| SGM891B-1.0XN5G/TR#C5152459SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | On request | Price on request | Quote | |
